Cable Tractor
Specifications
It can be used for towing of power cable, telecommunication cable, overhead cable and other towing place.

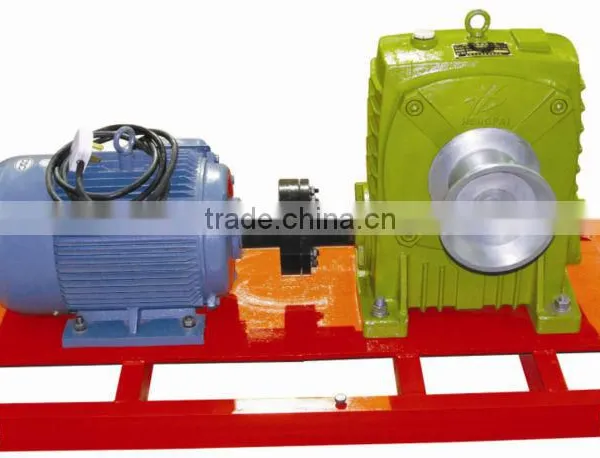

JQY cable tractor is a kind of mechanical equipment of medium size for towing. It can be used for towing of power cable, telecommunication cable, overhead cable and other towing place. Compact structure, big towing force, constant speed, can be used separately. It also can work together with our JSD series cable hauling machine.
Application
It’s a drawing equipment for cable laying, consist of up-pulley and tractor, used for drawing power cable, communication cable, aerial line and other necessary situation. It can work separately or together with other transmission machine produced by us.
Characteristic
Reasonable decelerating mechanism, steady speed, constant tractive force and can be equipped with intelligent control system for the digital control for fixing speed and torque
Technical parameter
type |
JQY-18 |
JQY-30 |
JQY-50 |
kN drawing force |
18 |
30 |
50 |
kN Max drawing force |
30 |
40 |
55 |
V power supply |
|
380VAC |
|
kW power rate |
3 |
4 |
5.5 |
Speen m/min |
|
6 |
|
diameter of steel wire |
13mm |
15mm |
15mm |
mm dimension |
1310×520×480 |
1430×700×720 |
1430×700×720 |
