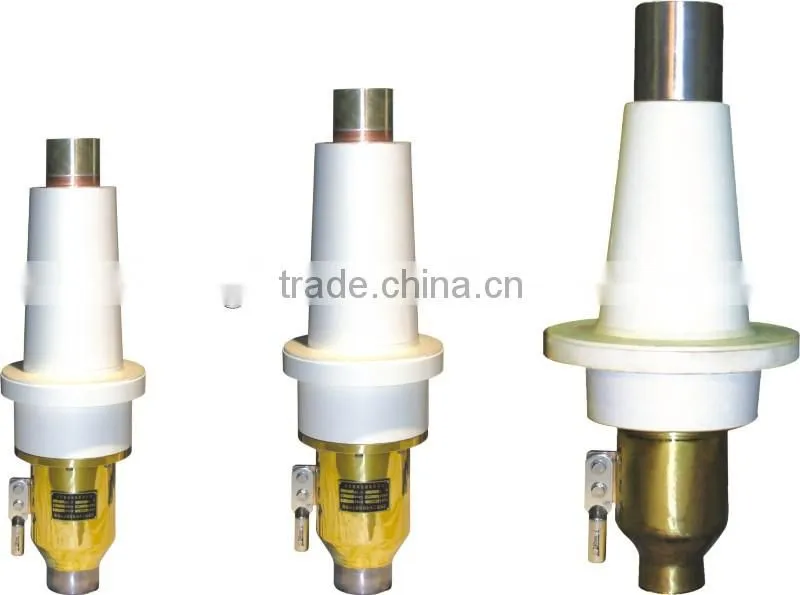

Help Center66kV Power Cable Sealing End for Electricity Transmission
Related Products
Specifications
66kV Cable Sealing End1. Supplier of CMEC & Sinohydro
2. ISO certified
3. KEMA Report
4. IEC standard
66kV Cable Sealing End
Introduction:
48/66kV, 64/110kV, 76/132kV, 127/220kV, 290/500kV
Model No.: YJZGG, YJZGG(D)-B
Test Standard:
IEC60859, IEC62271-209
Each product will carry out the routine test in high-voltage lab of the company.
a. Partial discharge test b. Voltage withstand test

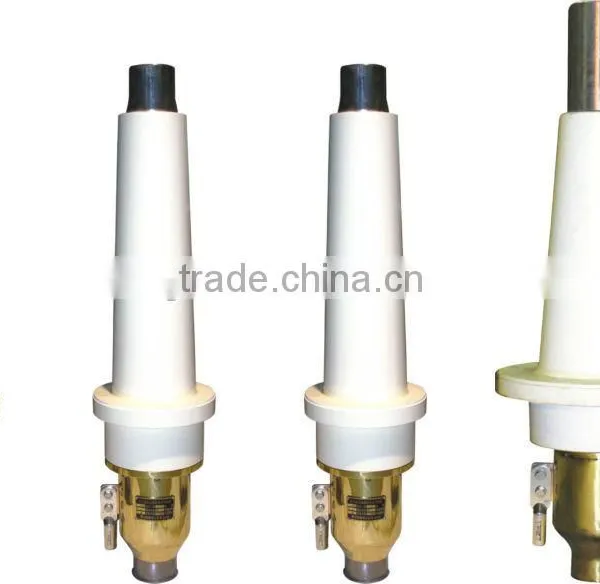

The product is XLPE cable indoor termination, and suitable for GIS switchgear / transformer. The GIS termination consists of EPDM stress cone, stress cone bracket, Epoxy busing, connector and wiping sleeve. We have both assembly type and plug-in type.
The Main Feature:
The termination is whole dry type, no oil, eliminate the problem of leakage.
Compact, lightweight, and small volume
The connecting between termination and cable is plug-in type, easy to install and maintain.
Plug-in type GIS termination suit to the connection between power cable and transformer. It cancel the oil/oil bushing or oil/gas bushing and save a lot of space.
Add connector to short type plug-in GIS termination, it can used in GIS equipment (long type GIS termination kits).
Rated voltage applicable cable dimension
| Rated Voltage | Cable Section |
| 66kV | 150-1600mm2 |
| 110kV | 240-2000mm2 |
| 138kV | 240-2000mm2 |
| 220kV | 240-3000mm2 |
| 500kV | 800-3000mm2 |
When ordering, please state the following data:
1). Voltage
2). Conductor material copper or aluminum
3). Conductor cross section diameter
4). Diameter of insulation
5). Outer diameter of cable
Quality warranty & after sales service:
1. Secure prodction under ISO9001 & ISO14001 and OHSAS 18001 system;
2. 2-year warranty;
3. Can provide service of installation or training your installation workers.
4. Service Life: 30 years
