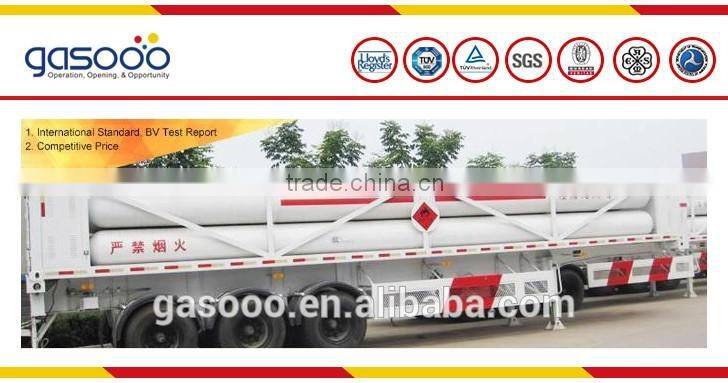

40ft 8 tubes CNG tube trailer for high pressure tube trailer
Model No. |
UEC0825CS-40F |
UEC1025CS-40F |
UEC1225CS-20F |
UEC1225CS-40F |
UEC0625CS-40F-711 |
Cylinder quantity |
8 |
10 |
12 |
12 |
6 |
Working pressure/MPa |
25 |
25 |
25 |
25 |
25 |
Cylinder size/mm |
OD559*17.4*10975 |
OD559*17.4*11580 |
OD559*17.4*5400 |
OD559*17.4*11580 |
OD711*22.1*10975 |
Steel type |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
4130X/30CrMo |
Working temperature |
-20~65℃ |
-20~65℃ |
-20~65℃ |
-20~65℃ |
-20~65℃ |
Cylinder weight/KG |
2825 |
2981 |
1390 |
2825 |
4460 |
Equipment weight /KG |
25860 |
33920 |
19700 |
37260 |
31000 |
Water volume/M3 |
17.8 |
23.33 |
12.6 |
27 |
22.2 |
|
Filling gas volume /NM3 (CNG as example) |
5300 |
7000 |
3700 |
8030 |
6600 |
Loading weight/KG |
3800 |
5019 |
2654 |
5760 |
4736 |
Total weight/KG |
29660 |
38939 |
22354 |
43020 |
35735 |
Skid/Trailer dimension |
12192*2438*1400 (skid) |
12192*2438*2071 (skid) |
6058*2438*2010 (skid) |
12192*2438*2010 (skid) |
12192*2438*1775 (skid) |

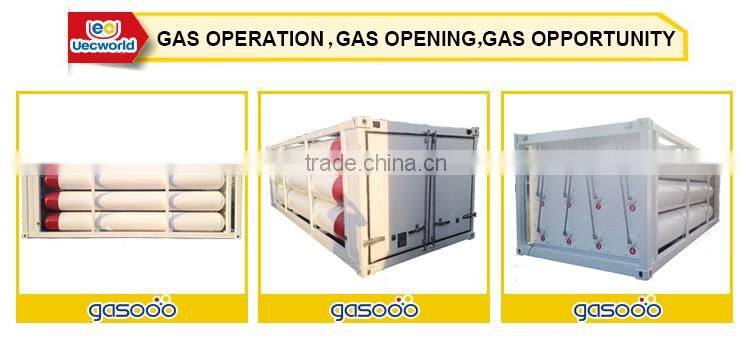

GASOOO brand CNG jumbo tube skid is produced as per ISO11120, ASME and approved by BV international third authority inspection party.
The jumbo tube skid are widely used in sectors of gas transportation, CNG station, and CNG power generating plant, etc. It is applied for the storgae and transportation of hydrogen, oxygen, nitrogen, argon, helium, purified gas and other kind of gases.
We have popular types with 6 tubes, 8 tubes, 9tubes, 10 tubes, 12 tubes.

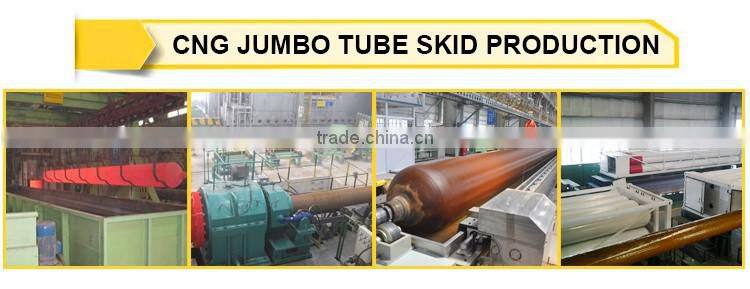

Hot Spinning - Walking Beam Heat-treatment fumace - Heat-treatment - Utrasonic detectoscope - Installment - Finish
Feature of high-pressure jumbo gas cylinder:
1. Heat-spinning technology applied, seamless structure, and reliable for safety operation.
2. Large-size structure, fewer valves, tubes and joints, and less gas leak.
3. Cleanness in design and structure, and less maintenance on site.
4. Easily discharge of residue liquid.
5. Equipped with branch-tubes and accessories, easy for operation & maintenance.
6. Lower weight of whole vehicle, reducing of tractor work and investment.
7. Add additional gas-filling devices, directly providing natural gas for trailers.
How about price? |
We provide competitive price. Just let us know your market request to choose exact type. |
How about delivery time? |
It is based on quantity and exact type, from 45-90 days. |
How to choose type? |
|
1. Filling gas; 2. Working Pressure; 3. Water Volume; 4. Road Limitation; 5. Certification request. |
How to ensure quality? |
Advance quality management assures Uec product the perfect performance including approval of ISO11120, ISO11439, ASME Standards and Lloyd’s , BV, SGS Inspections. Our Clients and end-users have already Indonesian, UAE, African and so on. Also we can manufacture the skid according to your requirement. |
How about payment? |
TT and L/C are both ok. We also support online order on alibaba or on our online store BUYCYLINDER. Just contact us for details. |
