80L cng cylinder for cng storage

Name: 80L cng cylinder for cng storage
Brand: GASOOO
Price: Negotiable

FOB Price

Negotiable / Pallet

1 Pallet(Min.Order)

Supply Ability 100000 Unit / Units per Month
Port main port China
Payment Terms:T/T L/C D/P D/A Other

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Material:	Steel	Use:	CNG	Pressure:	High
Place of Origin:	China	Brand Name:	GASOOO	Model Number:	OD279-25-80L

Product Description

80L cng cylinder for cng storage

Data Sheet

Typical types

CNG CYLINDER TYPE 1

Standard	Type	Water Capacity (L)	Height (mm)	Weight (kg)	Working Pressure (MPa)	Test Pressure (MPa)	Material
GB17258	OD279-50L	50	1080	69	20	33.4	30CrMo
EN1964	OD279-25-80L	80	1800	160	30	45	30CrMo
DOT-3AA	3600PSI-229-50	50	1630	95	24.8	41.4	30CrMo

CNG CYLINDER TYPE 2

Standard	Type	Liner Outside Diameter (mm)	Composite Cylinder Outside Diameter (mm)	Water Capacity (L)	Height (mm)	Weight (kg)	Service Pressure (MPa)
ISO11439	CRP406-ISO-250-190	406	425	190	1800	191	25
ISO11439	CRP406-ISO-250-200	406	425	200	1885	199	25

GASOOO brand CNG cylinder covers ISO11439, ISO9809, NZS5454, NGV2, DOT, ECE R110 etc Standard;

Water capacity: 7L-200L;

Working pressure: 20Mpa, 25Mpa;

Product Show

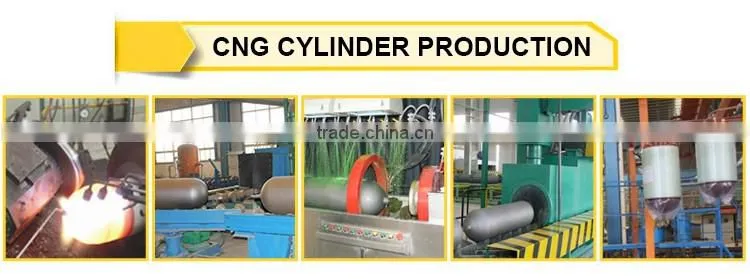

Production Process

Each of our cylinder goes through all the required procedure and tests, including hydraulic test, mechancial tests, chemical analysis, UT test, X-ray test, burst test, bon-fire test and all the others. Thanks to advanced technology, high-preformance equipment, prefessional personnel and stictly procedure and tests, GASOOO cylinders earned customers' praise for good quality.

Packing & Delivery

GASOOO cylinder has safe packages for FCL and LCL, including packgae bag, plastic net, carton box, wooden pallet, etc. All package meets customer's request.

FAQ

How about price?

Please kindly let us know cylinder water capacity, working pressure, manufacturing standard and quantity for best prices.

How about delivery time?

It is based on quantity. Generally, It is 25-45 days for one 20FC cylinders

How about cylinder package?

Cylinders can be shipped by pallets or containers directly. Take OD325-55L-20Mpa as example, 250pcs is for one 20FC.

How to ensure cylinder quality?

Besides high technology, GASOOO cylinder has ISO, NZS5454, NGV2, DOT, ECE R110
standard. It serves lots of customer all over the world. If customer need, a third-party report is available, which is issued by SGS, BV or other institution.

How about payment?

TT and L/C are both ok. We also support online order on alibaba or on our online store BUYCYLINDER. Just contact us for details.

How about cylinder application?

GASOOO CNG cylinders are widely used in NGV, Natural Gas Vehicles. Also, we provide CNG cylinders for CNG station, CNG transportaion.
