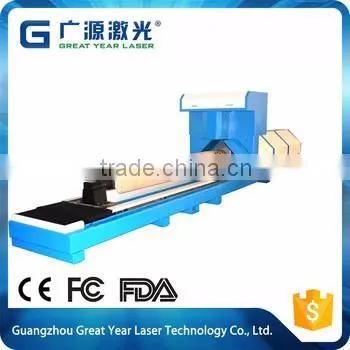

2017 Latest gift made in China automatic paper roll die cut machine
1) Specially for Rotary die board cutting Dia Φ170--Φ800mm, Length up to 3000mm, Easy adjustable!
2) Auto focus laser cutting head, suitable for cutting wood in same cutting slit.
3) Long life span 1000W Hybrid gas flow laser generator, offering perfect optical quality with strong power
4) New programming software multiple file formats supporting, and machining process customization.
5) Capable to cut different slit width in one drawing.
6) Configured with a three directions optical design, available for different customer environments.
Applicable materials:
Cutting plywood, MDF, Acrylic and Carbon steel cutting etc.
Applicable industry:
It is widely use in Corrugated Die Cutting industry, advertising signs, the production of metal sheet etc.
Technical index:
| Model | GY-3000CD | |||||
| Laser Power | 1000W 1500W 2000W | |||||
| Gas of Laser | N2 He Co2 | |||||
| Working Area | (Φ170--Φ800)x3000mm | |||||
| Positioning Accuracy | 0.01mm | |||||
| Cutting Accuracy | 0.02mm | |||||
| Transmitting system | 3 axis Ball screw rail | |||||
| Cutting Slit | 0.71mm 1.05mm 1.42mm (one time cutting) | |||||
| Cutting Thickness | 13mm 15mm | |||||
| Support Software | AUTOCAD, CORELDRAW | |||||
| Support Format | PLT, DXF, DSF, AI | |||||
| Machine Voltage | 380V±10% 50HZ, Gross Power: 15KW | |||||
| Working Temperature | 0℃-45℃ (No Condensation) | |||||
| Working Humidity | 5-95% | |||||
| Cooling way of Laser | Water Cooling | |||||
| Machine Weight | 3T | |||||
| Demension | Machine:760*150*180cm | |||||
| Laser: 190*330*200cm | ||||||
| Controller:100*80*120cm | ||||||
SERCIVE
a. Machine Standard production One Year Warranty
b. Advanced Team 7*12hrs online service(E-mail, Skype WeChat, Whatsapp,Teamviewer)
c. Manual, Software, Video, CD
d. Free training in factory
e. Technician local service available
1)Is the machine cutting wood in different gap?
Yes, Software is from Germany, with auto focus cutting head, easy cut 2pt 3pt 4pt in one design.
2) What kinds of laser with this machine ? how long life span?
It is Hybrid CO2 laser generator, power up to 1000w 1500w 2000w, powerful cutting plywood in high speed.
It is feeding by He, N2 and co2 gas, life span up to 10 years, like auto car, after 3-5years need to maintain for one time, maintaining fee around 5000USD.
3)How fast can machine cut the plywood 15mm ?
Normally 1000w can get 65m/hr speed for cutting 15mm die board.
4)how much total power of the whole machine ?
It will be around 15KW.
5)What accessories of the machine ?
Water Chiller, Exhaust Fan, Laser Generator, Controller system.
6) What will be the consumable parts of this machine ?
A. Focus lens life span 5000hrs.
B. Gas ( N2 20usd/m, He 300usd/m, Co2 1usd/m )
7) Do you have engineer for local installation in my factory ?
Yes, we will send engineer to your for installation and training if you carrie round trip air tickets and accommodation fee, free training in our factory.
8) Can I come to you for Die manual accessories and materials?
YES, we have full solutions of the laser die cutting, both the flat dies and rotary dies, it is our pleasure to help you.
if more questions, please feel free to contact with us.
Looking for agents all over the world! Any questions, welcome to contact us! click here
