Home > Products > Video digital Modulator > Low Latency ALL in One MPEG2/H.264 HD ENCODER MODULATOR

Low Latency ALL in One MPEG2/H.264 HD ENCODER MODULATOR

FOB Price

US$ 1,000 - 2,999 / Set

1 Set(Min. Order)

Port Shanghai/Hangzhou
Payment TermsT/T Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Dibsys
Model Number	EMI3410

Product Description

MPEG-2 /H.264 HD Encoder built-in multi-standard UP converter

EMI3410 products are new breakthrough all-in-one devices which integrate encoding (MPEG-2 HD/SD, MPEG-4/AVC H.264 HD/SD) and modulating toconvert V/A signals into DVB-C(DVB-T/ISDB-T/ATSC-T) RF output. It has equipped with up to 4 HDMI (4 SDI optional) channels input and 1 ASI input and output with 2 ASI ports and 1 UDP IPport.Delay problem has been greatly reduced to achieve an extremely low value from the encoding progress tothe decodingterminals.

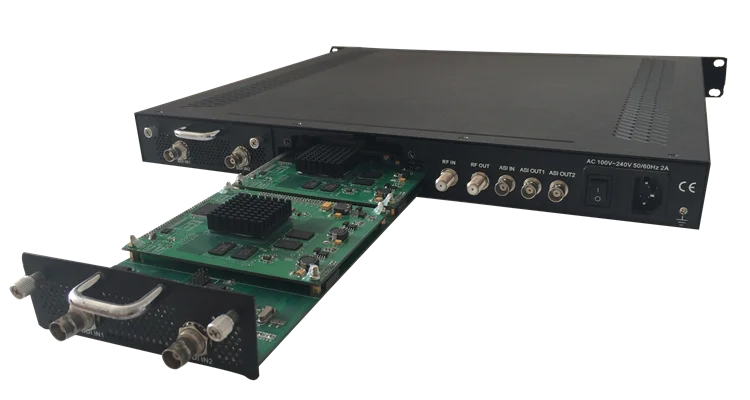

EMI3410 adopts inner drawer-type structural designwhich greatly facilitates the change of encoding modules (HDMI/SDI /…) asneeded.

The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by DVB-C TVs or STBs.

Feature

1.MPEG-2 and MPEG-4 AVC video encoding of HD or SD perchassis(1RU)

2.Based on the latest ASIC and FPGA technologies, offers unequalled gains in video compression efficiency

3.Single/Dual/Qua HDMI or HD-SDI video input

4.1080P(H.264 only),1080I,720P,480I and576I@50, 60Hz video resolution

5.MPEG1 Layer II audio encoding

6.Low latency mode

7.PSI/SI generate and NIT insertion, LCN modify

8.Selectable 1 ,2,4 multi-Modulation out (DVB-C/T/ISDB-T/ATSC-T)

9.MPEG-TS over UDP,Indentical ASI Output

10.Cascading via DVB-ASI or RF Port

11.Excellent modulation quality MER≥42dB

12.RF frequency:30-960MHz,1khzstep

13.Simultaneous outputs via IP, DVB-ASI and modulated interfaces

14.Easy to web management

15.Breakthrough Low Price

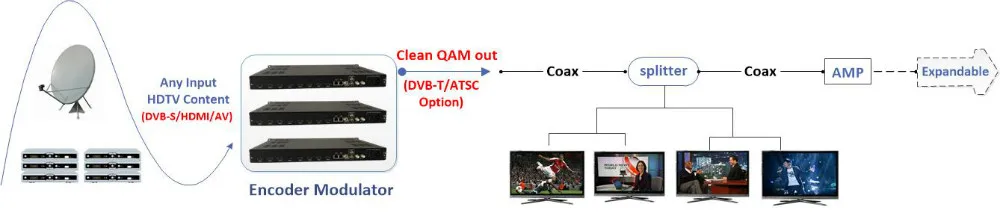

Application

Specifications

Input Interfaces(Selectable)
	1/2/4 HD-SDIInputs
	1/2/4 HDMIInputs

Video
Resolution	1920×1080p @50/60Hz(MPEG-4 AVConly)
	1920×1080i@50/60Hz
	1280×720p@50/60Hz
	720×480i @59.94Hz, 720×576i@50Hz
Encoding	MPEG-2 HD/SD; MPEG-4 AVC(H.264)HD/SD
Video compression and bitrate encoding option	MPEG-2 MP@ML 1to15Mbps MPEG-2 MP@HL 2 to24Mbps MPEG-4AVCMP@L3 0.25to8Mbps MPEG-4AVCHP@L4 2 to 15Mbps
Rate Control	CBR/VBR(from 1mbps to maximumvalue)
GOPS tructure	Auto, IP, IPB, IPBB, IPBBB, IPBBBB,IPBBBBB
Aspect Ratio	4:3; 16:9;1:1

Audio
Encoding	MPEG-1 LayerII
Sampling rate	48KHz
Resolution	24-bit
Bit-rate	32Kbps~384Kbps

cascading andmulti-services
	1 ASI inputmultiplexed
	1 RF inputcombiner

Stream output
	2×ASI output ports, BNCinterface
	MPTS over UDPIP

Modulation Model
DVB-C Module	Standard	J83.A	J83.B	J83.C
	Constallation	16/32/64/128/ 256QAM	64QAM,256QAM
	Symbolrate	5.0~9.000Mspsadjustable
	Bandwidth	8Mhz	6Mhz	6Mhz
	MER	≥42dB
	RF frequency	30~960MHz, 1KHzstep
	RF outputl evel	-30~ -10dbm(81~97 dbµV), 0.1dbstep
	QAM Channel	1,2,4selectable
DVB-T Module	Standard	ENC300744
	Constallation	QPSK,16QAM,64QAM
	Bandwidth	6/7/8MHz
	FFT Mode	2K,8k
	Guard Interval	1/4,18,1/16,1/32
	FEC code	1/2,2/3,3/4,5/6,7/8
	MER	≥40dB
	RF frequency	30~960MHz, 1KHzstep
	RF output level	-30~ -10dbm(77~97 dbµV), 0.1dbstep
	Cofdm Channel	1,2selectable

ISDB-T Module
Standard	ARIBSTD-B31
Bandwidth	6Mhz
Constellation	DQPSK,QPSK, 16QAM,64QAM
Guard Interval	1/32, 1/16, 1/8,1/4
FFT Mode	2K, 4K, 8K(FFT)
FEC (Code Rate)	1/2, 2/3, 3/4, 5/6,7/8
MER	≥42dB
RF frequency	30~960MHz, 1KHzstep
RF output level	-30~ -10dbm(77~97 dbµV), 0.1dbstep
Modular Channel	1,4Selectable

System function
	LCD/keyboard and Ledindicator
	Web management
	Ethernet softwareupgrade

Environment
Operating temperature	0~45℃
Storage temperature	-20~80℃
Power requirement	AC 100V-240V±10%,50/60Hz
Power consumption	25W
Product Dimensions (WDH)	482mm×420mm×44.5mm
Weight	5Kg
