DIBSYS All Kinds of Mpeg2 and H.264 CVBS/HDMI to Digital rf Modulator for All-RF Over Coax Solution

Cost Effective Distribute Video to Anywhere

Upgrade all your analog Head-ends to Digital

• Cost-effective - solution to distribute your Video Signals with Perfect Digital Quality

• Signal quality - won’t degrade like analog

• Simple configuration - add or upgrade channels in minutes

• Clear QAM broadcast - works with all standard HDTVs

• Using the existing Coaxial analog Cable - combined with the other TV channels

Feature

In order to facilitate the hotel hospital and other commercial establishments on live television. Recommended cable digital cable systems compared with coaxial based on IPTV and analog TV more cost-effective.you can receive it on all TVs through the existing antenna cables, also combined with the other TV channels.

◆EMI3084

8 AV of mpeg-2 SD in 1RU chassis

8 channels fit on 2 RF frequencies

Through ASI/RF input could Cascading multiple devices

Digital quality at 480i and 576i


◆EMI3381

8 HDMI of H.264 encoding

8 channels fit on 2 RF frequencies

Digital quality up to 1080p


◆QAM6248

8 fta dvb-s/s2 Tuners inputs

Four adjacent frequency RF out

Support multiplexer and scrambling


◆IPQ6250

256 udp/rtp IP inputs

16 Non-adjacent frequency RF out

Support multiplexer and scrambling

IP out via multiplexed or scrambled


◆Video terminal

DIBSYS H.264/MPEG2 HD STB

DTA Box

LED TV built-in Clear QAM Tuners

DIBSYS H.264/MPEG2 HD STB

DTA Box

LED TV built-in Clear QAM Tuners

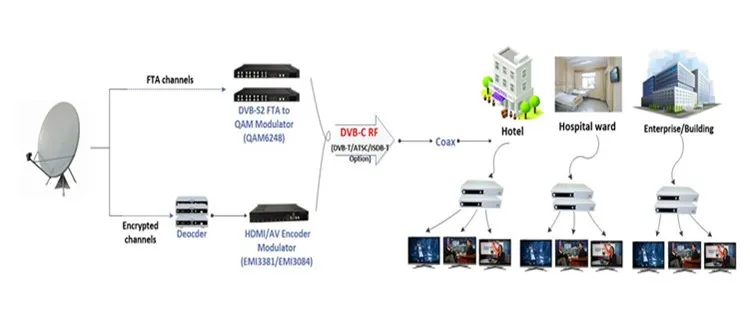

Application

Technical BENEFITS

·8* Composite, 4*hdmi and hd-sdi, 8* dvb-s/s2 Tuners dvb-c modulator in 1RU Chassis

·Direct connection to satellite or others receivers Redistribute high quality content

·Digital quality at 480i/576i–SD, 720p /1080i/p HD, sources deliver stunning,performance and full digital quality while respecting content broadcast requirements

·Generate NIT,BAT,SDT Table via PSI/SI Editor

·MPEG2 and MPEG-4 AVC

·All RF mixer via cascading

·Analog Audio – internally Mpeg-1 Layer II encoded and broadcast as digital.

·Support programs sorting according with requirements

·Auto and Manual search program

·Easily integrate and balance into new or existing antenna cables distribution systems to upgrade to digital video.

·Easy installation – simply unplug your old analog modulator and plug those same wires into this new digital modulator, and go on.

BUSINESS BENEFITS

---Compared with analog TV, the image will be more clear, which can make use of the HDTV with the QAM RF tuners in one step to upgrade to digital television, and bring you enjoy the high-definition TV life experience.

---Compared with the IPTV system, the upgrade and maintenance cost is more lower. And also can use the existing coaxial cable, and other existing programs to watch more TV programs.

---More stable and reliable, and scalable

---Easy to Maintenance and Management System,front panel LCD for easy channel viewing and LAN port for advanced and remote configuration.

---Apart from supporting DVB-C standards, it also supports which according to the customer’s other standards demand of equipment such as applicable to the Japan /South American ISDB-T,European DVB-T, North American ATSC standard.
