Broadcaster Biss Satellite Receiver FTA Dvb-s2 Ird With 8 Tp Inputs,240 ip Video Streaming Out

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai/Hangzhou
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Dibsys
Model Number	IRD1218

Product Description

8x RF Tuners FTA to IP Gateway and Multiplexed

IRD1218 Professional 8-channel RF to IP Gateway that Integrates Professional DVB-S2,Cable(DVB-C), ISDB-T,ATSC RF Receivers and De-encapsulates and Routes Any or All Selected Transport Streams via IP Output Port by SPTS/MPTS channels, with re-multiplexing and scrambling of multiple transport streams.

The IRD1218 enables an all-IP headend architecture,resulting in a more scalable and lower-cost transition to IP-based services.

It will be a ideal equipment for the IPTV network head and deliver the SPTS channels to next equipment which the transcoder and IPTV server,can much save the cost in your investment.

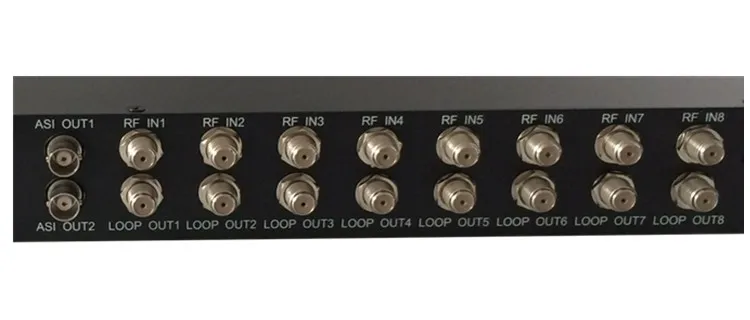

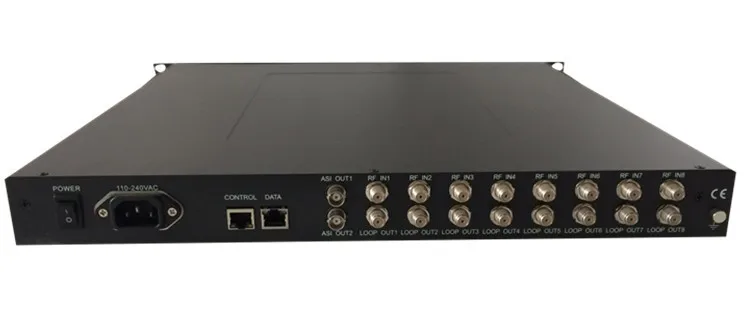

IRD1218 Rear panel

Feature

1.Up to 8 channels FTA Tuners per chassis

2.Professional DVB-S2,ISDB-T,ATSC DVB-C RF inputs option

3.Up to 244 streams-over-IP in SPTS/MPTS mode

4.Up to 2 separate ASI out after multiplexed

5.Support processing for multiplexing,scrambling,

6.PSI/SI Table in Mpts mode

7.Support BISS function（Extra charge）

8.De-encapsulates and Routes Any or All Selected Transport Streams outputs

9.Data stream Protocol of UDP, RTP

10.PID filtering, mapping and pass through

11.Easy-to-Use System Management

12.Output data rate range: GbE IP:1 ~ 800Mbps

ASI: 1-100Mbps

13.Management via WEB and local front panel

14.Integrated, compact 1-RU platform saves rack space and reduces operating costs

Tuner input
DVB-S/S2 RF In	Comply to DVB-S/S2, DVB / DSS standard
	Input frequency range: 950～2150MHz
	Input level: -25～-65dBm
	Connector: F-female type, 75ohm
	Symbol rate: 2～45Msps for QPSK;2～45Msps for 8PSK
	Rolling off factory:0.35 for QPSK;0.35,0.25,0.2for 8psk
	Convolution encoding Rates: DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 ; DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
	8 channels RF inputs and loop out

DVB-C RF
	Demodulation : 16/32/64/128/256 QAM
	Bandwidth : 6MHz、7MHz、 8MHz
	Input Frequency : 30～860MHz
	Input level: -20～20dBmV
	Connector: F-female,75 ohm
	8 channels RF inputs and loop out

ISDB-T RF In
	Compliant with ARIB STD-B31 standard
	Input frequency range: 30～900MHz
	Bandwidth 6MHz
	Constellation DQPSK,QPSK, 16QAM, 64QAM
	Interleave 0, 4, 8, 16
	Guard Interval 1/32, 1/16, 1/8, 1/4
	Transmission Mode 2K, 4K, 8K (FFT)
	FEC (Code Rate) 1/2, 2/3, 3/4, 5/6, 7/8

ATSC RF In
	Compliant with ATSC A/53 standard
	Input frequency range: 30～900MHz
	Demodulation: 8VSB

ASI output
	2x independent ASI output, BNC, impedance: 75Ω
	188 bytes per packet
	Bitrate: ≤100mbps
	comply to EN50083-9, ASI standard

MPEG-TS OVER IP Output
	1000M base-T,Full Duplex
	Bit rate: ≤800Mbps
	Data Protocol: UDP/RTP, Multicast/Unicast
	Both MPTS/SPTS Mode
	Stream number: 1~244（MPTS mode）
	7x188 bytes per udp packet

Multiplexing
	PSI/SI table(PAT,PMT,NIT,TOT,TDT,BAT) automatic or manual generate
	Up to 512 programs to multiplex,and 64 service id per one MPTS out
	PID Filter capabilities

Scrambling (option)
	Up to 512 programs to scrambling
	CAS simul- encryption:0-4
	EMM of bandwidth:1-3Mbps
	The scrambling function and configures the numbers of output modulation channel through software authorization

System function
	100M Base-T Ethernet, RJ45,WEB((IE 8.0 or above)
	6 keys: UP, DOWN, LEFT, RIGHT, ENTER,ESC
	Front-Panel LCD configuration, LED indicate light

Environment
	Power Supply:AC 90-260V 50/60Hz
	Power consumption: 50W
	temperature:0~45℃(Operation), -20~80℃(Storage)
	Dimensions:L: 460mm, W: 483mm, H: 44mm(1RU)
	Weight: 6Kg
