Low Power UHF Terrestrial DTV Transmitter
Overview:

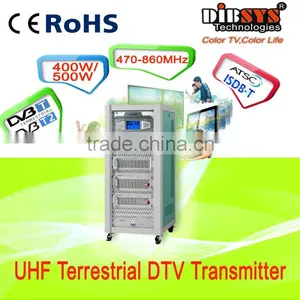

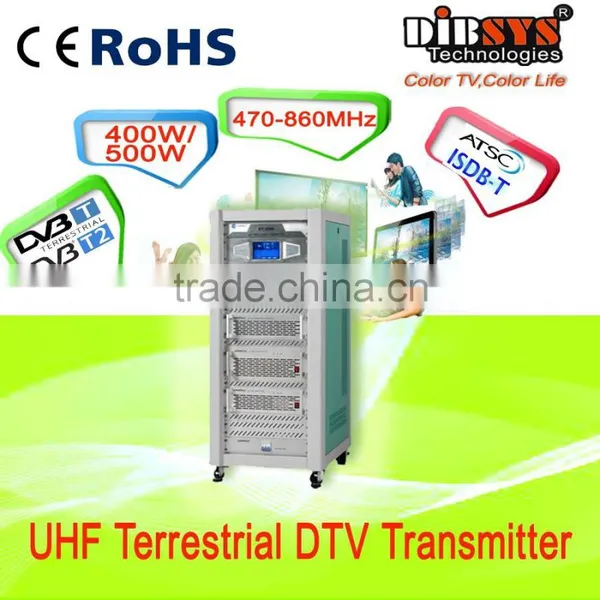

Dibsys’DTT-5900-500 Series is a low power UHF terrestrial DTV transmitter, which inherits the high performance,
high stability and high reliability of Dibsys’many products. It can work in any frequency within UHF span, and the transmitting bandwidth is up to 80MHz.
By incorporating our latest technologies of linear and non-linear digital adaptive pre-correction,RF delay and co-channel interference rejection, this system can fulfill the needs of single band or broadbandtransmission in small to medium-scale terrestrial coverage scenarios.
This series of products, which has advance design and simplified architecture are small in size, with the advantage of lower noise, higher efficiency, and outstanding anti-interference performance. They support DVB-T/H, DTMB, ATSC, ISDB-T/Tb and DVB-T2 standards,
thus having greater flexibility and suitability in actual deployment.

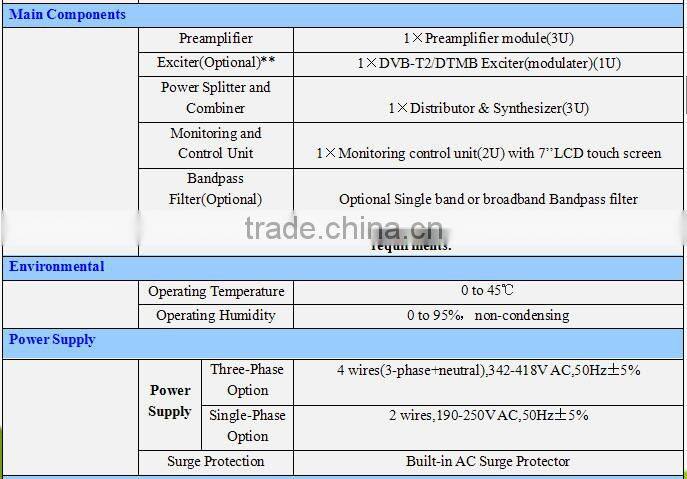

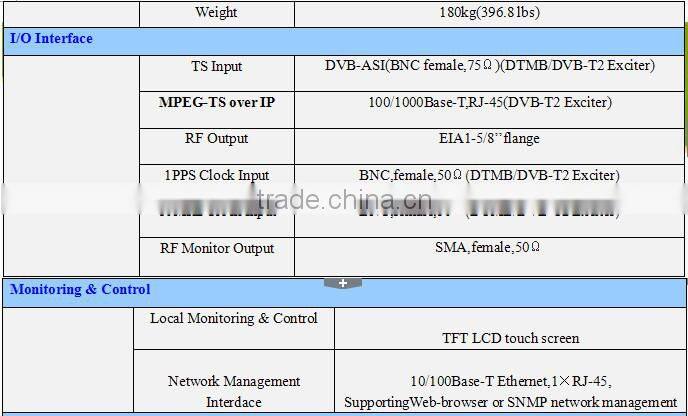

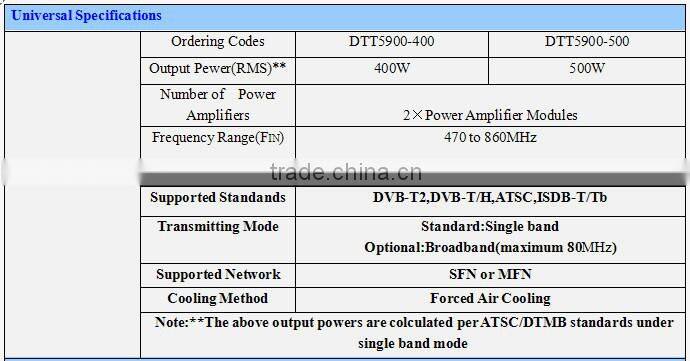

Key features:
- 470 to 860MHz
- Compact structure, supporting up to 500W digital output power
- Linear & non-linear digital pre-correction function in exciter
- Modular design across the whole system, easy installation, maintenance and/or upgrade
- Low power consumption with high efficient LDMOS amplifiers to reduce electricity costs for operators
- Suitable for different countries and/or areas because multiple DTT standards are complied with, i ncluding DVB-T/H, DTMB, ATSC, ISDB-T/Tb and DVB-T2
- Low power consumption with linear design, further improves transmitting power and minimizes non-linear distortion, to satisfy transmission requirements of single band and broadband
- Built-in color TFT LCD with touch screen in front panel of rack, supports monitoring & control of working states
- and any malfunction for any module without additional testing/monitoring equipment required, such as transmitting power, VSWR, working voltage/current, fan speed, IP address and so on
- Extreme low group delay for DTV signal transmission
- Multiple protect mechanisms are introduced for over-load, over-temperature, over-current and high VSWR
- Large and dynamic Auto Gain Control (AGC) circuit ensures stability of output power
- Suitable for single channel or broadband transmission enabling low-cost DTV network coverage
