Product Details
| Place of Origin | Zhejiang, China | Brand Name | DIBSYS | |
| Model Number | IPTV Solution |
Product Description

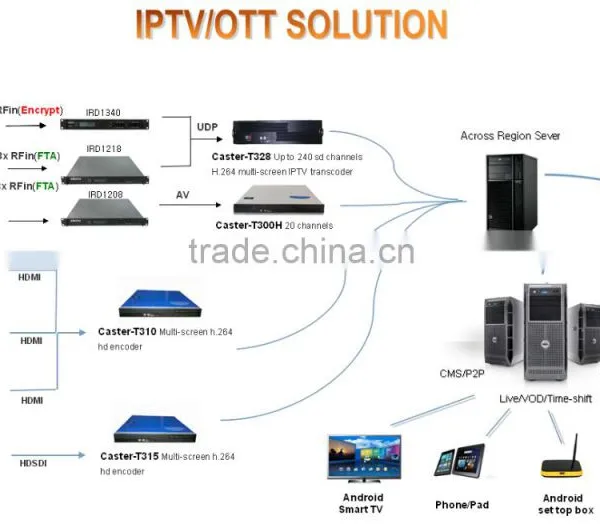

DIBSYS IPTV/OTT SOLUTION
Unique Technology
Unique document encryption technology and DRM defense mechanism which ensure the copyright of VOD content
Original UDP transmission protocol to realize high speed, stable and secure video transmission
A load balancing based on software ensures the balance of the serve if large scale visitors occur
Media Services technique is the third streaming media technique after Microsoft Media Service and
REAL Helix Server
Multi-process function can make full use of all the resources on the high performance server, and increase resource utilization rate
Flexible storage policy widely applies multiple caching methods,such as disk cache, in-memory cache,which marks human settings
Realize VOD, live broadcast,download and other functions simultaneously in one server by combing
other DIBSYS P2P systems, and expand the PC and mobile phone terminals.

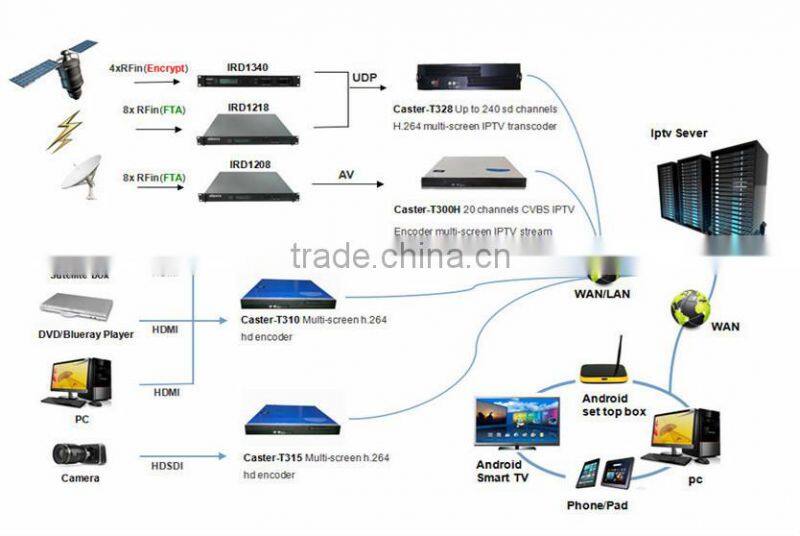

Diagram

Solution Features
u Multiple Functions
Providing users with vivid, smooth, stable high-quality video playback.
u Extensive
Keep the existing STB unchanged. OTT STB is developed based on Android, Linux. customers can also
use the existing set-top boxes from a third- party.
u Security and copyright
The system has adopted strict security policies to make the system resources and content safe. Intranet
and extranet delivery system has an effective quarantine measures to prevent hackers and unauthorized
access.
u Easy Management
Convenient management of subscribed users with billing function.
u Valuable
Stream media streaming solutions enable much higher quality with decreased deployment cost.
u Advertising functions
advertisement insertion and random inserting capabilities make the system be with more business value.
u Reliability
IPTV system has strong fault tolerance and good resilience. Software and hardware is able to continue
uninterrupted work long hours, and can not affect the functioning of the system in time of module online
testing, update, load. It also adopts mature and reliable technology and architecture, and use quality
assurance system products.
u Operation
Level design-Considering the operational purpose, stream system is designed and implemented to support
large-scale system architecture, with capacity to deal with programs distribution and system content distribution,and the load balancing of the whole system.
Dibsys IPTV Software/hardware and service
1.We produce a wide range of software/hardware for IPTV and OTT







2.Providing interactive IPTV services to the users all over the world






3.Product list
No. | Models | head-end equipments | Descriptions |
1 | IRD1218
| 8 Router RF FTA IRD | 1.8xDVB-S/S2 FTA RF in 2.Up to 244 MPTS/SPTS out 3.MPEG-TS over UDP/RTP 4. One GbE RJ45 port 5.The mpeg2 and h.264 of all streams are from dvb-s/s2 directly without tran -scoding 6.Support BISS |
2 | IRD1208 | 8 Router RF FTA IRD | 1.8x CVBS,BNC,Stereo Pairs(R/L);Stereo or Mono mode 2.Can decode eight channels SD MPEG-2, AVC, AVS programs in one rack unit. 3.MPEG-TS over UDP/RTP |
3 | IRD1340 | 4 Encrypt RF IRD with CI slot | 1.4 Tuners(DVB-C,S/S2,T/T2 Option) inputs 2.48 SPTS&4 MPTS IP over UDP and RTP/RTSP output 3.1000 MBase-T Ethernet interface(unicast/multicast) 4.4 separate ASI/IP out 4.4 CAMs/CIs |
4 | Caster-T310 | Multiscreen h.264 hd encoder | 1.Four HDMI or HD-SDI per chassis 2.GbE IP outputs – UDP,RTSP,RTMP,HTTP,HTTP Live Smooth(HLS),FTP 3.M3u8 playlist files 4.AAC,MPEG,MP3 or Dolby Digital AC-3 passthrough |
5 | Caster-T315 | Multiscreen h.264 hd encoder | 1.500 Kbps for 480i/576i,3.5 Mbps for HD 1080p. 2.Logo Insertion 3.Based on embedded unbuntu Linux |
6 | Caster-T328 | H.264 multiscreen IPTV trascoder | 1. 225 SD or 90x720p or 56 Full HD profiles 2.Up to Max.30 channels per Module,A total of 9 modules in 3RU chassis 3.dual power supply 4.Integration with content 5. distribution CDNs |
7 | Caster-T300H | SD multiscreen IPTV trascoder | 1.Up to 12/18/24 Composite,R/L analog audio per chassis 2.SD MPEG4/H.264/MPEG-2 to any resolution encoding 3.GbE IP outputs – UDP,RTSP, RTMP,HTTP,HTTP Live Smooth(HLS),FTP 4.M3u8 playlist files 5.AAC,MPEG,MP3 or Dolby Digital AC-3 passthrough |
8 | STB140 | Quad Core Android HDMI TV BOX with TF Card Slot | Amlogic S805 Quad Core Coretex-A5 Up to 1.5GHz Quad Core Mali-450 1G DDR3 Support XBMC HDMI input,Two USB, TF card Wifi+4.0 bluetooth |
Framework Notice
1.Before you start your project, you can do some test with an Android STB to know how it is play there.
Considering of the test convence, you can use our APK and buy two Android STBs from us for remote connection to server.DIBSYS’ STB140 is Quad Core Coretex-A5 Up to 1.5GHz Amlogic S805 Android 4.4.2 STB which is quite compliant with IPTV system.
2.For clients ready to built the IPTV system,or need to give demonstration to their users, arranging a DEMO IPTV system at the local will be necessary. Dibsys can provide the basic demo devics,including IRD1218, caster-t322(up to 25 channels), IPTV middleware(4 core,8G memory PC or server), and a batch of STBs.
Questions
1.How many channels do you want to launch to the IPTV project?Please tell me the Number of HD and SD.
2.Where program source from.If program come from satellite,pls inform us how many FTA/encryped channels and transponder you want.It is better to show us the channel list for we calculate and choose the device at the cost-effective configuration.
3.How many subscribers do you need from IPTV middleware
4.How many areas do your business cover, only in your country or all over world?
5.How many code rate will you expect of hd/sd channels running.It related to the cost and size of bandwide of the public network.For example:1080p about 2M or 5Mbps, SD about 800kbps or 1500kbps.
6.Are source program and media streaming server at the same room or different rooms? Or is your iptv headend IP network in LAN or WAN?
7.Pls tell us what other extra functions you want.Generally,we support default function like live TV,VOD,and timeshift optional.Dibsys can customize services for different operators to meet their Individual demand.
