Home > Electrical & Electronics > Telecommunication & Broadcasting > Set Top Box > Amlogic S805 Quad Core Android TV Box/Digital TV Receiver/Android TV Box

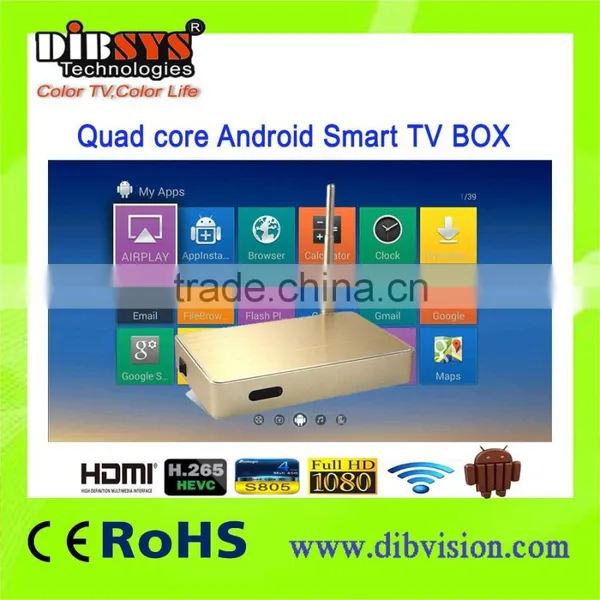

Amlogic S805 Quad Core Android TV Box/Digital TV Receiver/Android TV Box

Name: Amlogic S805 Quad Core Android TV Box/Digital TV Receiver/Android TV Box
Brand: DIBSYS
SKU: 110662717

Amlogic S805 Quad Core Android TV Box/Digital TV Receiver/Android TV Box thumbnail-1

Amlogic S805 Quad Core Android TV Box/Digital TV Receiver/Android TV Box photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

DIBSYS

Model Number:

STB140

Contact Supplier Request Quote Chat Now

Hangzhou DIBSYS Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name DIBSYS

Model Number STB140

FTA(Free To Air) Yes

Type Digital

High Definition Yes

Amlogic Quad core Android TV Box/Digital TV Receiver/Android TV box

Plastic/gold

Technical Specifications

CPU		Amlogic S805,Quad Core ARM Cortex A5 up to 1.5GHz,28nm
GPU		Quad-core Mali-450MP GPU@600MHz+, Is four times of Mali400
Memory		DDR3:1GB,512MB OPTIONAL
Flash		Nand Flash:8GB
WiFi		IEEE 802.11 a/b/g/n, 2.4G
BlueTooth		OPTIONAL
Mould		Plastic: Black; Gold Metal: Gold
I/O		1*HDMI 1.4b	1200p@60 max resolution output, 3D HDMI Output
		1*AV OUT	480i/576i standard definition output
		4*USB HOST	Host USB Port
		1*SPDIF	Digital Audio
		1*RJ45	Ethernet Interface,10M/100M LAN
		1*SD CARD slot	Card Interface Support 4GB/8GB/16GB/32GB/64GB
Power		DC Intput 5V/2A; LED indicator, working: blue,standby: red
Software
OS		Android 4.4 KitKat
Video		H.265 HEVC MP @ L4.1 up to 1080P @ 60fps H.264 HP @ L5.1 up to 1080P @ 60fps H.264 MVC up to 1080P @ 60fps MPEG-4 ASP @ L5 up to 1080P @ 60fps (ISO-14496) WMV/VC-1 SP/MP/AP up to 1080P @ 60fps AVS JiZhun Profile up to 1080P @ 60fps MPEG-2 MP/HL up to 1080P @ 60fps (ISO-13818) MPEG-1 MP/HL up to 1080P @ 60fps (ISO-11172) RealVideo 8/9/10 up to 1080P @ 60fps WebM up to VGA Multiple language and multiple format sub-title video support MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) Supports JPEG thumbnail, scaling, rotation and transition effects Supports .mkv,.wmv,.mpg, .mpeg, .dat, .avi, .mov, .iso, .mp4, .rm and *.jpg file formats
Audio		Low power MediaCPU with DSP audio processing Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 5.1 down-mixing Built-in SPDIF/IEC958 and PCM serial digital audio input/output
Image		HD JPEG,BMP,GIF,PNG,TIF
Adobe Flash		Adobe Flash 11.1 support or above
Support language		Chinese , English ,Germany ,Japanese, Korea etc. Multi languages
Appliactions
Online	Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
Apps	Apps download freely form android market,amazon app store etc.
Medium	Local Media playback,Support HDD, U Disck ,SD/MMC Card .
Talk online	Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc
Others	Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard
