Overview

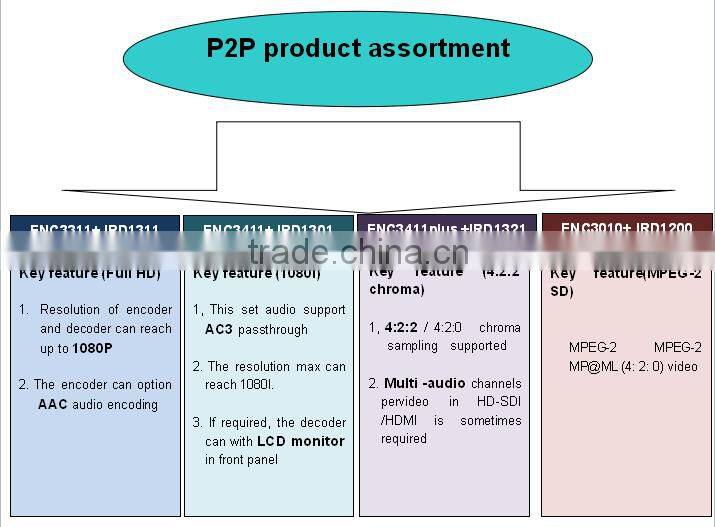

Dibsys provides the advanced and powerful encoder and decoder for the P2P system, And according to different requirement of different project can flexibly configurate the different encoder and decoder of the P2P system. It mainly include SD assortment, HD assortment, Full HD assortment, Multi-audio assortment.
Comparisons
The full HD assortment
Product details

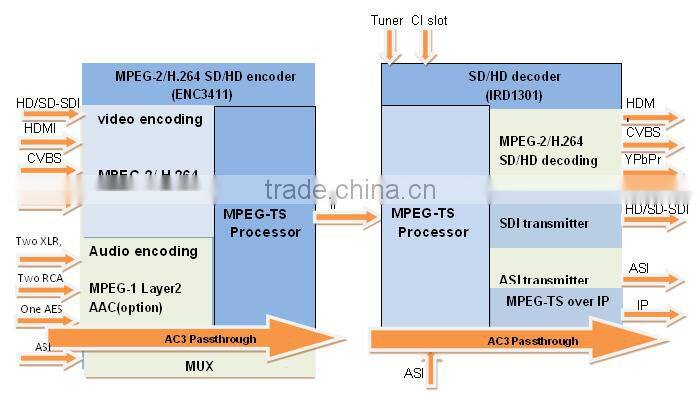

Item | MPEG-2/H.264 SD/HD encoder (ENC3411)
| SD/HD decoder (IRD1301)
| |
Input | Video input | 1x SD/HD-SDI | 1x Tuner (option DVB-S/S2, DVB-/C/T/T2, ISDB-T, ATSC-T) |
1x HDMI | |||
1x CVBS | |||
1x YPbPr | |||
Audio input | 2x XLR | 1x IP | |
2X RCA | 1x ASI | ||
1x AES | 2x DVB- CI slot | ||
Output | 1x IP
| 1x HDMI | |
1x CVBS | |||
1x SD/HD-SDI | |||
2 pairs of ASI | |||
2 identical ASI | YPbPr | ||
TS/IP | |||
S-Video | |||
XLR digital audio | |||
Video format | MPEG-2/MPEG-4 AVC(H.264) HP@L4, MP@L3 | MPEG-2 and MPEG-4 AVC/H.264 | |
Audio format | MPEG-1 layer 2, AAC(option), AC3 passthrough(option) | MPEG-1 layer2, AAC( option) AC3 passthrough | |
Audio Channel | 2 stereo or 4 Mono | 1 Pair R/L analog audio | |
Resolution | 1920x1080i,1280x720p,720x480I,720x576I | 1080i @ 50,60,59.94 720p ,576i,,480i | |
Protocol | UDP/RTP | UDP/RTP | |
Chroma | 4:2:2/ 4:2:0 | 4:2:0 | |
Closed Caption | option | Supported | |
BISS | Not support | Supported | |
