tv Broadcasting System DVB-C and OTT Iptv Streamer_14Channel H265 Transcoder Iptv Full hd

tv Broadcasting System DVB-C and OTT Iptv Streamer_14Channel H265 Transcoder Iptv Full hd photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
Anystream410
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number Anystream410
Product Description

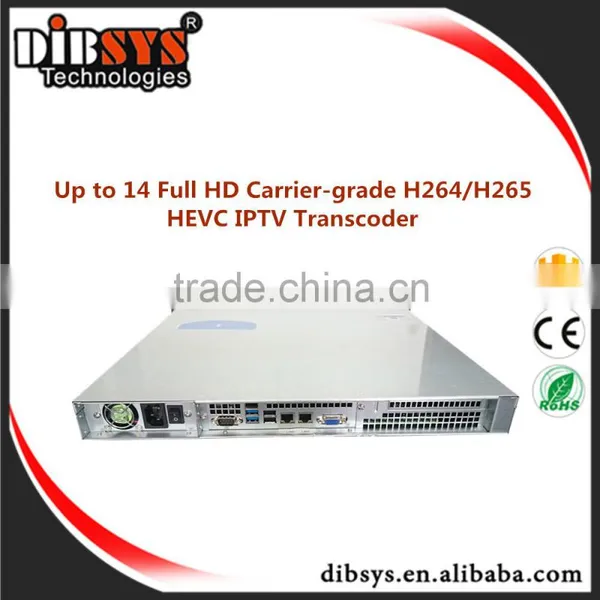

Up to 14 Full HD Carrier-grade H264/H265 HEVC IPTV Transcoder



Anystream410 which is a perfect carrier-grade video processing solution for next generation Broadcast, OTT, Mobile TV Head-End. Typical Real Time Transcodes Benchmarks Include 7/14* Full HD Streams.

Anystream410 supports Apple® HTTP Live Streaming, RTMP, Microsoft® Smooth Streaming, HTTP, RTSP, UDP and Works Well with Wowza and Ezserver, Nginx servers, Xtream-codes. Ideal Device for Creating High, Medium and Low Bit Rate Streams to deliver video to any android and IOS devices at superior quality. Designed for Cable, satellite and terrestrial, OTT, Mobile, Web, IPTV content distribution applications requiring Digital Video Broadcasting. The use of the HEVC Transcoder and Encoder enables an operator to deliver content of a given quality at a significantly reduced bandwidth or to deliver significantly higher quality video at a given bandwidth.

Feature

1. Telco Quality, Highly Reliable, High density 1-RU platform can process up to 7/14*1080P Full HD profiles

2. Achieve a compression gain of 40-60% over H.264/AVC in subjective quality

3. Support Multi-screen services and Generate High, Medium, Low Bitrates in different IP protocol for IOS, Android devices, Flash. etc

4. Full HD, MPEG/H.264-to- H.264/HEVC(H.265) any to any transcoding

5. Down/UP Scale converter ability to convert all HD services to SD or SD to HD

6. Support RTMP, HTTP Live Streaming, Pull/Push HTTP/RTSP, RTMP, UDP, SDP

7. Produce pristine video quality over the lowest bitrates

8. Dual Gigabit Ethernet LAN ports provide additional performance and redundancy. Seperate ethernet ports for service streaming and out-of-band management

9. Logo Insertion

10. Compatible with external MPEG-DASH packager for OTT delivery (option)

11. Easy to Web management

Specifications
Input
Two GbE IP port
UDP/RTP/RTSP/HTTP/MMS/FTP/RTMP/HLS
MPEG-2, H.264, MPEG4
Output
Two GbE IP port
Live H.264:1920x1080p
Live HEVC: 1920x1080p
Min. resolution: 64x64
Frame rate: 5 - 30fps
Bit rate mode: VBR, CBR
MPEG-2 TS MPTS/SPTS over IP
TS/RTP/UDP streaming
Adobe Flash / RTMP
Apple HTTP Live streaming/HLS
Microsoft Smooth streaming
Unicast and multicast
IGMP V2 & V3 IPV4 support
Video encoding
Smart de-interlacing
Picture resizing
Logo/graphics overlays
Crawling text
Codec Format: MPEG-2, H.264/AVC, H.265/HEVC
HEVC High Profile; HEVC Main profile
H.264 Baseline Profile; H.264 Main Profile; H.264 High Profile
Video Bitrate: 32k - 20Mbps
Number of channels: 7/14 channels (1080p@HEVC)
Audio encoding
Bitrate: 8kbps to 384kbps
Encoding Format: LC-AAC, HE-AAC and HE-AAC v2; MPEG-1 Layer, AC3, MP3
sampling rate: 8khz to 48khz
Number of HEVC
transcoding chs
@good quality
Resolutions
Bitrates
Channels
In the premise of
Ensuring quality, the
Proposed customer
parameters and running the channel number, the user will vary based on the actual operation of the user
1920x1080p
1500Kbps
7/14
Environment
Power supply: AC 100 - 240V
Power Consumption: 200 W
Dimensions: 444 (L) x 443 (W) x 44.5mm (H) (1RU)
Order Information
Caster-T322
Two ports GigE IP in/ out: up to 25x SD,
10 x720p, 6x1080p streams out
Caster-T323
8 FTA or 4 Encrypted DVB-S/S2 Tuners input,
20 SD or 10x720p or 5-6 Full HD streams out
Caster-T326
Two ports GigE IP in/ out: up to 600x SD,
240x720p, 144x1080p streams out
Caster-T328
up to 200x SD , 80x720p, 50x1080p streams out,
One Gig Ethernet Ports per module
