Single SD/HD MEPG-4 AVC H.264 Cable/satellite Receiver&decoder With ASI/IP Out

Single SD/HD MEPG-4 AVC H.264 Cable/satellite Receiver&decoder With ASI/IP Out thumbnail-1
Single SD/HD MEPG-4 AVC H.264 Cable/satellite Receiver&decoder With ASI/IP Out photo-1
US$ 500 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DIBSYS
Model Number:
IRD1310
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DIBSYS
Model Number IRD1310

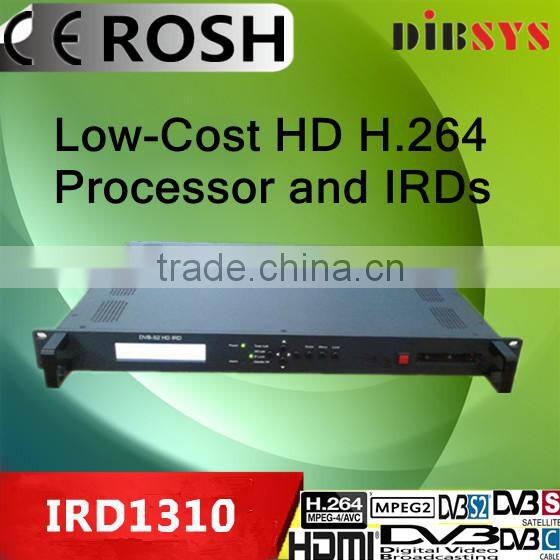

Low-Cost HD H.264 Processor and IRDs



Single SD/HD MEPG-4 AVC H.264 cable/satellite receiver&decoder with ASI/IP out



Overview

The professional IRD1310 Integrated Receiver Decoder is a broadcast-quality decoder, decryptor and Gateway that provides MPEG-4 AVC and MPEG-2 HD/SD decoding,

advanced transport stream processing,IP processing technologies and a variety of front-ends,including DVB-S2DVB-C,MPEG-TS over IP and DVB-ASI.The IRD also has two common interface slots which can decode up to 16 scrambled channels.



Single SD/HD MEPG-4 AVC H.264 cable/satellite receiver&decoder with ASI/IP out

Single SD/HD MEPG-4 AVC H.264 cable/satellite receiver&decoder with ASI/IP out

Key Features

  • DVB common interface (2 slots) per chassis
  • Up to decrypt 16 channel per CI module
  • MPEG2(MPSingle SD/HD MEPG-4 AVC H.264 cable/satellite receiver&decoder with ASI/IP outHL) & MPEG-4 AVC/H.264 HPSingle SD/HD MEPG-4 AVC H.264 cable/satellite receiver&decoder with ASI/IP out L4.0 and DVB-S/S2,DVB-C RF,ASI decoding
  • MPEG-TS Over IP data output
  • ASI transport stream input and output
  • OSD only on monitoring output
  • HDMI,YPbPr,Composite and R/L analog audio outputs
  • Resolution: PAL,NTSC,720p,1080i
  • High accuracy PCR correction
  • Management via OSD and front panel with TV sets
  • Input Single Strength and Quality self-detection
  • Easy-to-Use System Management
Technical specifications

RF input interfaces





DVB-S/S2

Compily with DVB-S:EN300 421,DVB-S2:EN302 307

frequency range: 950~2150MHz

level: -25~-65dBm

Connector: F type, 75ohm

Symbol rate: 5.0 ~ 45Msym/s  (QPSK)

10.0 ~ 31Msym/s (8PSK)

LNB Power:13 VDC,18VDC/ Imax =400mA

Demodulation Mode: QPSK,8PSK

Frequency Stepping: 500 KHz

DVB-C RF

Compily with Standard EN300 429

Input Frequency Range: 51-858MHz

Symbol rate: 2-7.0MBauds

Input Level: -20-20dBmV

Demodulation Mode: 16/32/64/128/256 QAM/J.83 A/B/C(Optional)

ASI input interfaces



1xASI input,1xASI loop

impedance:75 ohm

Max transport rate: ≤100Mbps

Packet Format: 188/204 byte self-detction

TS output interfaces

MPEG over ASI

2x indentical ASI out

impedance:75 ohm

Max transport rate:

100Mbps(without CAM card)

72Mbps (with CAM card)

MPEG over IP

Max transport rate: ≤100Mbps

De-multiplex and re-multiplex transport stream

Encapsulation Protocols MPEG-TS over UDP

Addressing Multicast/unicast

Connectors 100M Base-T,RJ45

decode output interfaces

Video decode output interfaces

1x HDMI, HDMI 1.3 interface

1x YPbPr,BNC

1x Composite ,BNC

Audio decode output interfaces

1x Pair R/L analog audio,BNC

Audio mode: stereo,left and right

Re-multiplexing



All program through multiplexing

Resolution: PAL,NTSC,720p,1080i

Conditional Access



Two PCMCIA Interface

Scrambling algorithm:DVB-CSA

Up to 16 program descrambling simultaneously

SCS interface: ISO7816

Max bitrate: ≤72Mbps

Management



100M Base-T Ethernet,RJ45,SNMP

7 keys: UP,DOWN LEFT,RIGHT,ENTER,ESC,LOCK



Front-Panel KEY Borard,LED indicate light

Environment



Comply to GB13837-92 & GB8898-88 standard

Rated voltage: AC 90-260V  50/60Hz

Rated power: 20W

Working Temperature: -10~50°C

Storage Temperature: -10~75°C

Size: L: 280mm, W: 483mm, H: 44mm(1RU)

Weight: 3.5kg



Single SD/HD MEPG-4 AVC H.264 cable/satellite receiver&decoder with ASI/IP out Single SD/HD MEPG-4 AVC H.264 cable/satellite receiver&decoder with ASI/IP out

1)        High quality and low price



2)        3-year warranty



3)        Perfect after-sale service and technical support





Single SD/HD MEPG-4 AVC H.264 cable/satellite receiver&decoder with ASI/IP out

Types

Input

Output

IRD1310S

DVB-S/S2, ASI

ASI/IP;

HDMI,YPbPr.CVBS

IRD1310C

DVB-C,   ASI











Single SD/HD MEPG-4 AVC H.264 cable/satellite receiver&decoder with ASI/IP out
