DVB-S2 HD Encoder&Modulator
EMI6310 DVB-S2 HD Encoder & Modulator is an integrated device with multi-interface inputs.as like HD-SDI,HDMI,CVBS etc, It also equipped with 1 channel ASI input. it outputs ASI and DVB-S/S2 RF in the same time. Moreover, this device is based on slot design and the input card can be switched as customer’s requirement.
The EMI6310 Compact DSNG Encoder is a fully integrated MPEG-2 and MPEG-4 AVC High Definition and Standard Definition 4:2:0 encoder/modulator in a 1-RU unit. Designed for digital satellite contribution applications, It features a professional broadcast quality encoder and a built-in DVB-S, DVB-S2 and DVB-DSNG modulator with L-Band and IF outputs.
The DVB-S2 Encoder is a perfect fit for teleports, satellite newsgathering vehicles and flyaway packages operating on either the C, Ku, or Ka-bands.
- Fully complying with DVB-S2(EN302307) modulating standard compatible with DVB-S (EN300421)
- Configurable the Inputs: hdmi/hd-sdi/ypbpr/cvbs
- MPEG-2 and MPEG-4 AVC HD/SD Encoding in HDMI/HD-SD inputs
- Support maximal 160Mbps ASI input
- Up to 1080p resolutions
- Low latency mode
- Simultaneous outputs via DVB-ASI and DVB-S/S2 RF modulated interfaces
- BISS mode 0,1 & BISS-E scrambling
- Support DVB-S, DVB-S2 QPSK and DVB-S2 8PSK modulation mode
- Optional reference 10 MHz and 24V DC power on L-band
- Broadcast grade IF or L-band outputs
- External or modulated 10MHz reference clock
- Management via Web and local front panel
DVB-S/S2 Modulation Section
- DVB-S QPSK: FEC 1/2,2/3,3/4,5/6,7/8
- DVB-S2 QPSK:FEC 1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10
- DVB-S2 8PSK FEC 3/5,2/3,3/4,5/6,8/9,9/10
- RF output : 950.00-2150.00 MHz, 10Khz step;
- IF: 50-200MHz(option)
- Symbol rate: 0.05-20.0Msps
- Roll Off: 0.35, 0.25, 0.2
- Output level: -10db~-41.5db
System
- Local Control: LCD + control buttons
- Remote Control: Web
- Low Latency Mode: Normal, Mode 1, Mode 2
Physical Specification
- Demission: 410×460×44mm (W*L*H)
- Temperature: 0~45°C(operation), -20~80°C(storage)
- Weight: 4.5kgs
- Power Supply: AC 100-240V 50/60Hz 2A
I |
|
1) High quality and low price
2) 3-year warranty
3) Perfect after-sale service and technical support

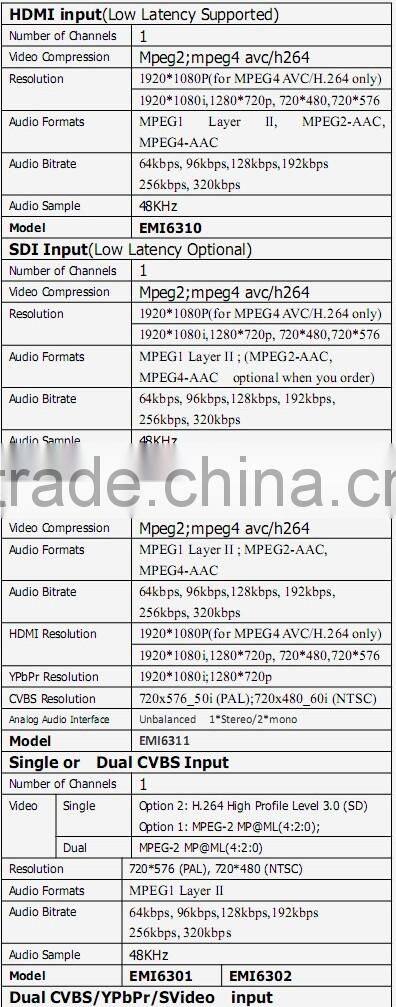

Types |
Input interfaces |
EMI6310 |
1xHDMI |
EMI6315 |
1xSDI |

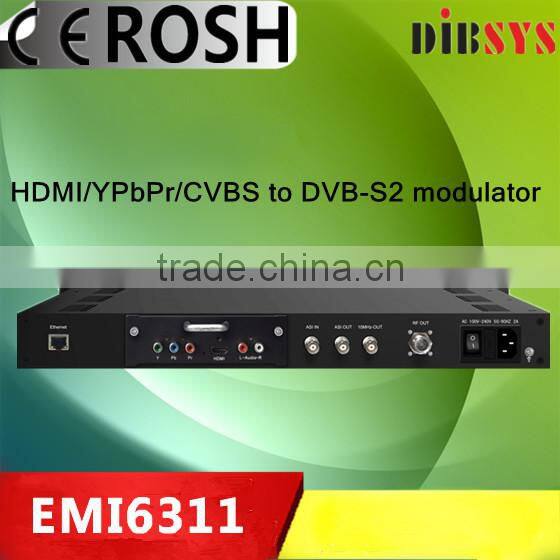

EMI6311 |
1xHDMI/YPBPR/CVBS |
EMI6301 |
1xCVBS |
EMI6302 |
2xCVBS |

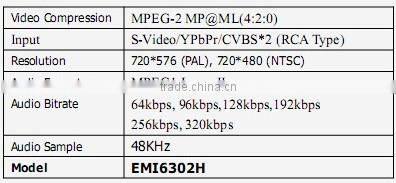

EMI6302H |
2xCVBS/YPBPR/S-VIDEO |
