Low Cost CATV Headend Equipment FTA DVB-S/S2 to IP MPEG-2/H.264 Transcoder Encoder IPTV

Low Cost CATV Headend Equipment FTA DVB-S/S2 to IP MPEG-2/H.264 Transcoder Encoder IPTV thumbnail-1
Low Cost CATV Headend Equipment FTA DVB-S/S2 to IP MPEG-2/H.264 Transcoder Encoder IPTV thumbnail-2
Low Cost CATV Headend Equipment FTA DVB-S/S2 to IP MPEG-2/H.264 Transcoder Encoder IPTV photo-1
Low Cost CATV Headend Equipment FTA DVB-S/S2 to IP MPEG-2/H.264 Transcoder Encoder IPTV photo-2
US$ 2,000 - 4,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DIBSYS
Model Number:
ENC3580
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DIBSYS
Model Number ENC3580

fta dvb-s to ip transcoder and encoder

with mpeg2 and h.264 encoding



Low cost CATV headend equipment FTA DVB-S/S2 to IP MPEG-2/H.264 transcoder encoder IPTV

ENC3580 is a professional bidirectional transcoder to convert video between H.264 and MPEG-2 format and also to transcode between HD and SD programs simultaneously. It is equipped with 6 DVB-S2/C/T tuner inputs to receive channels directly, or ASI /IP inputs to receive digital channels. After transcoding, it outputs MPTS & SPTS through the DATA IP or ASI port.

One of the main features of ENC3580 is integrated HD-to-SD down Converting,making the launch of differentiated services, such as an all-HD broadcast of the SD lineup simple and cost effective.

Another outstanding feature of ENC3580 is that it can transcode HD/SD H.264 to MPEG-2,so that easy to  change H.264 signals from satellite and so on to low-cost MPEG-2 application system.







Low cost CATV headend equipment FTA DVB-S/S2 to IP MPEG-2/H.264 transcoder encoder IPTV

  • High-quality,high density transcoding of 8 SD or 4 HD mpeg-2 and MPEG-4 AVC broadcast channels
  • SD/HD MPEG-2 to MPEG-2 and MPEG-4 AVC to MPEG-4 AVC re-encoding
  • HD to SD down conversion
  • 8 * IP (SPTS/MPTS) input plus 6 tuners or ASI inputs
  • 8*SPTS & 1*MPTS (UDP/RTP/RTSP) output;2 indentical ASI output
  • MPEG-2 SD/HD and H.264 SD/HD any-to-any Video Transcoding
  • AAC and MPEG-2 any-to-any audio trans- coding or pass-through; AC3 pass through
  • 1920x1080I, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576 and 704x576 resolutions
  • Supporting CBR and VBR rate control
  • Advanced re-multiplexing
  • Easy-to-Use System Management
  • LCD & Key board local control; web NMS management

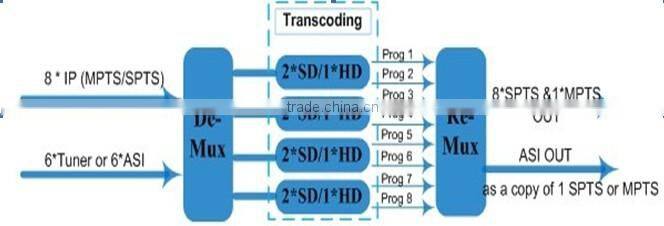

Low cost CATV headend equipment FTA DVB-S/S2 to IP MPEG-2/H.264 transcoder encoder IPTV
Low cost CATV headend equipment FTA DVB-S/S2 to IP MPEG-2/H.264 transcoder encoder IPTV

Stream In

MPTS/SPTS over UDP/RTP, 1000M Base-T Ethernet Interface/ SFP interface

6 * DVB-S2 Tuner (DVB-C/T/ISDB-T/ATSC Optional)

6*ASI

Video

Resolution

1920x1080I,1280x720P, 720x576i, 720x480i

480x576, 544x576, 640x576, 704x576

Trans-coding

4*MPEG2 HD → 4*MPEG2/H.264 HD ;

4*MPEG2 HD → 4*MPEG2/H.264 SD ;

8 *MPEG2 SD → 8 *MPEG2/H.264 SD

4* H.264 HD → 4*MPEG2/H.264 HD ;

4* H.264 HD → 4*MPEG2/H.264 SD ;

8* H.264 SD → 8 *MPEG2/H.264 SD

Rate Control

Stream In:

VBR(H.264 SD/HD); CBR(MPEG-2 SD/HD)

Stream Out:

CBR

Audio

Transcoding

MPEG2, MPEG2-AAC, MPEG4-AAC any-to-any;

AC3 pass through

Sampling rate

48KHz

Bit Rate

64Kbps-384Kbps

Stream Out

8*SPTS & 1*MPTS over UDP/RTP/RTSP, 1000M Base-T Ethernet Interface(UDP/RTP uni-cast/multicast)

/SFP interface

2*ASI (as a copy of one of the 8 SPTS or the MPTS) output, BNC interface

Management

LCD & Key board control; web NMS management,Ethernet software upgrade

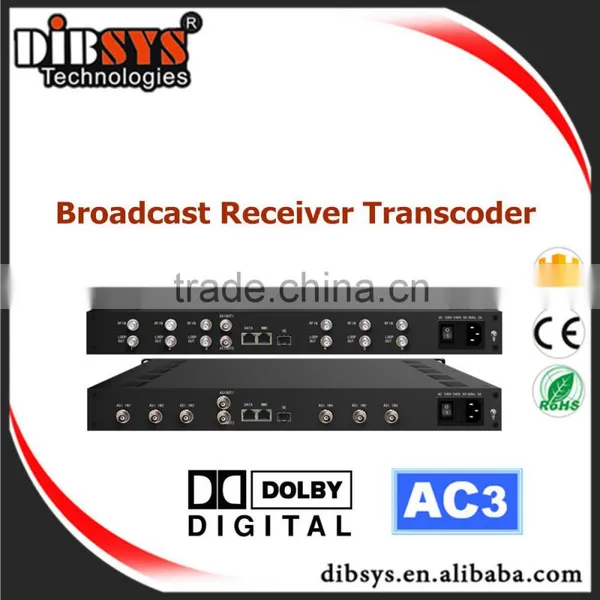

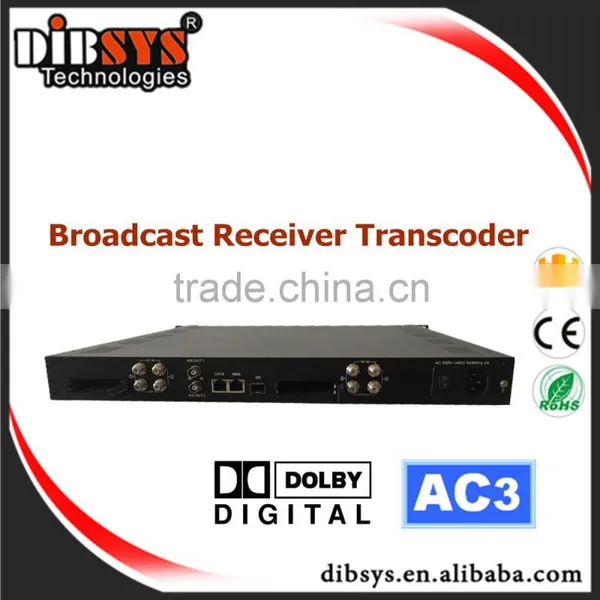

Back Panel:Low cost CATV headend equipment FTA DVB-S/S2 to IP MPEG-2/H.264 transcoder encoder IPTV(RF in)Low cost CATV headend equipment FTA DVB-S/S2 to IP MPEG-2/H.264 transcoder encoder IPTV(ASI in)

Environment

Dimensions

430mm×405mm×45mm(WxDxH)

Weight

6 Kg

Temperature range

0~45°C(Operation), -20~80°C(Storage)

Power Supply

AC 110V±10%, 50/60Hz or AC 220V±10%,50/60Hz

Power consumption

20W


Low cost CATV headend equipment FTA DVB-S/S2 to IP MPEG-2/H.264 transcoder encoder IPTV

1)        High quality and low price



2)        3-year warranty



3)        Perfect after-sale service and technical support
