Four Encrypted DVB-S/S2 Tuner to DVB-C/DVB-T Modulator With CAM

Four Encrypted DVB-S/S2 Tuner to DVB-C/DVB-T Modulator With CAM thumbnail-1
Four Encrypted DVB-S/S2 Tuner to DVB-C/DVB-T Modulator With CAM thumbnail-2
Four Encrypted DVB-S/S2 Tuner to DVB-C/DVB-T Modulator With CAM photo-1
Four Encrypted DVB-S/S2 Tuner to DVB-C/DVB-T Modulator With CAM photo-2
US$ 600 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DIBSYS
Model Number:
EMI1340
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DIBSYS
Model Number EMI1340

Four encrypted DVB-S/S2 Tuner to DVB-C/DVB-T Modulator with CAM modulator







Four encrypted DVB-S/S2 Tuner to DVB-C/DVB-T Modulator with CAM

Product profile





    EMI1340 trans-modulator is an all-in-one device which integrates demodulation, multiplexing and modulation three modules.The output modulated signals are to be received by TVs, STB and etc with corresponding standard.



    This case support converting encrypted 4 satellite tuners into digital RF (DVB-C, DVB-T, ISDB-T or ATSC optional) with 4 CAMs/CI to descramble and requires NO unsightly external power cords, cables, or additional remote control device. Its pluggable installation design give possible to change various modules (HDMI/CVBS/SDI/YPbPr/…) as demand.



    To extend more functions to meet various needs , EMI1340 is also equipped with 1 ASI in-port, and 2 ASI,1 UDP IP output port.The device supporting web upgrading.







Hightlight

  • Demodulation+ multiplexing + modulation in one box
  • 2 modules. 1 Module = 2xRF( Loop out )+ 2xCAM + 2xSmart card
  • 4 QPSK S/S2 Tuner inputs
  • 1xASI inout with re-mux
  • 1xIP (MPTS) output
  • 1 CAM can decrypt multiple programs
  • RF mixed in, RF mixed out (1xDVB-T/2xDVB-T,1xDVB-C/4xDVB-C Optional )
  • Support LCN (Logical Channel Number)
  • Excellent modulation quality: MER≥42dB
  • LCD display, Remote control and Firmware, web NMS management
  • Updates via web









Main Application



  • video and audio compression transmit;

  • Saltellite,cable or terrestrial headend applications.

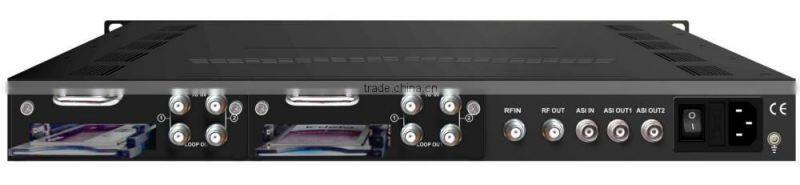

Rear panel





 Four encrypted DVB-S/S2 Tuner to DVB-C/DVB-T Modulator with CAM





Technical specifications



Four encrypted DVB-S/S2 Tuner to DVB-C/DVB-T Modulator with CAMFour encrypted DVB-S/S2 Tuner to DVB-C/DVB-T Modulator with CAM
