DVB-C/DVB-T2/ATSC/ISDB-T/DVB-S2 IRD to ip Gateway and Integrated Receiver Decoder With CI Slot,decode to HDMI-HDSDI/AV

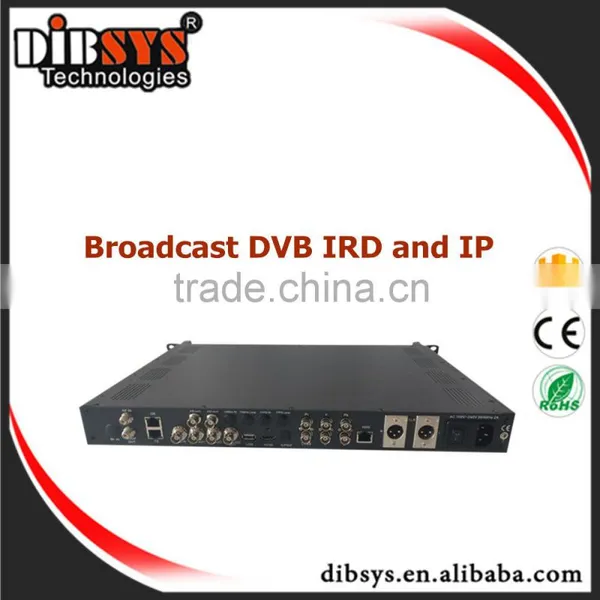

DVB-C/DVB-T2/ATSC/ISDB-T/DVB-S2 IRD to ip Gateway and Integrated Receiver Decoder With CI Slot,decode to HDMI-HDSDI/AV thumbnail-1
DVB-C/DVB-T2/ATSC/ISDB-T/DVB-S2 IRD to ip Gateway and Integrated Receiver Decoder With CI Slot,decode to HDMI-HDSDI/AV photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
IRD1301
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number IRD1301
Product Description

Advanced HD/SD H.264 Processor and IRDs

DIBSYS’s IRD1301 is the professional high scalable, integrated receiver decoder(IRD), Multiple inputs to IP Gate-way and MPEG-4 AVC stream processor. Featuring broadcast-quality HD/SD MPEG-2,MPEG-4 AVC (H.264) video decoders, It is ideal for full transport-stream distribution and contribution applications, including DVB scrambling and digital turnaround processing.

It supports a rich set of input options, ranging from multiple DVB-S/S2 (QPSK,8PSK), DVB-C(QAM), DVB- T/T2(COFDM), ISDB-T, ATSC-T to IP and DVB-ASI, Advanced features and flexibility for IPTV and HDTV Digital Headend Systems IPTV streams can also be received and sent over IP. The platform’s native IP interface seamlessly integrates into scalable,low-cost IP networks.

It is also a cost-effective IP to SDI/HDMI gateway, Which can distribute and deliver video with HDMI to IP H.264 encoder (ENC3211), it's point to point video application.

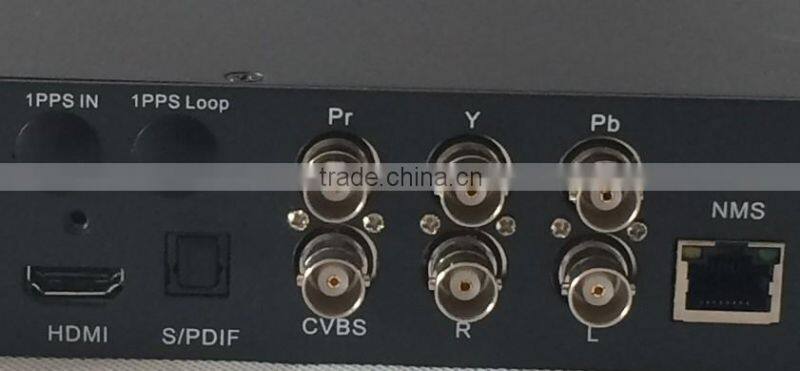

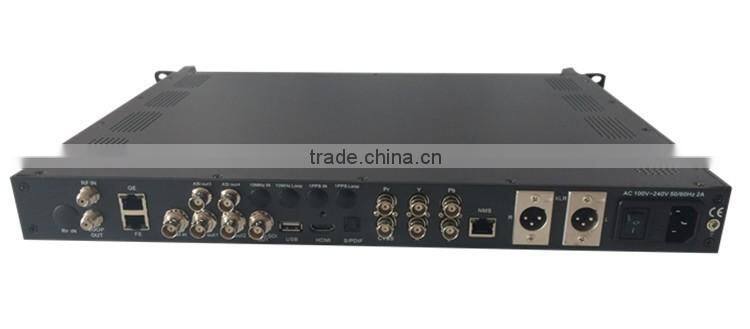

IRD1301 Rear panel



Feature

1.TS Descrambler with two integrated DVB-CI/CI+ slot per chassis,up to decrypt 8 channel per CI module

2.Standard definition MAPEG-2 MP@ML,MPEG-4 AVC Main/High Profile 4.0,3.0 video decoding

3.MPEG-1 Layer2,HE-AAC(V2), LC-AAC(option) , AC3 passthrough audio decoding

4.Selectable multiple inputs Tuners (DVB-S/S2/C/T /T2/ ISDB-T/ATSC-T), IP,ASI

5.Multiple Input to IP and DVB-ASI Mode out:Mux IP/Tuner/ASI-Passthrough

6.Both MPTS and up to 8 SPTS separate IP and Port outputs

7.Two group separate ASI out, Two duplicate ASI per Group

8.Video decoding Monitor LCD in the front panel

9.SD/HD-SDI,HDMI,YPbPr,Composite and R/L analog audio,S-Video,XLR digital audio outputs

10.Embedded BISS-1 and BISS-E Mode (DSNG-CA)

11.EBU SUBTITLE and DVB SUBTITLE supported

12.With full remultiplexing,capabilities, including PID filtering, remapping and table regeneration

13.More scalable and lower-cost transition to IP- based services.

14.Resolution: PAL,NTSC,SECAM,720p,1080i

15.Aspect Ratio Conversion 16:9,4:3

16.FullHigh accuracy PCR correction

17.Management via SNMP,Local front panel with LCD

18.Input Single Strength and Quality self-detection

19.Easy-to-Use System Management

RF input interfaces
DVB-S/S2
frequency range: 950～2150MHz
level: -25～-65dBm
Connector: F type, 75ohm
Symbol rate: 1～45MBauds
LNB Power:13 VDC,18VDC
Demodulation Mode: QPSK,8PSK
Frequency Stepping: 500 KHz
DVB-C RF
Frequency Range: 47-862MHz
Symbol rate: 4-7.0MBauds
Input Level: -15-20dBmV
Demodulation Mode: 16/32/64/128/256 QAM/J.83 A/B/C(Optional)
DVB-T RF
Frequency Range: 146-862MHz
Bandwidth: 8MHz (6,7MHz Optional)
Level: -87- -20dBm
Constellations: QPSK, 16QAM, 64QAM
FEC Demodulation: 1/2,2/3,3/4,5/6,7/8
DVB-T2 RF
Frequency Range: 44-1002MHz
Bandwidth: 8MHz (6,7MHz Optional)
ISDB-T RF
Frequency Range: 153 MHz ~862 MHz
Bandwidth: 6/7/8MHz
ATSC-T RF
Frequency Range: 54MHz~858MHz,
Bandwidth: 6MHz
TS in/output interfaces

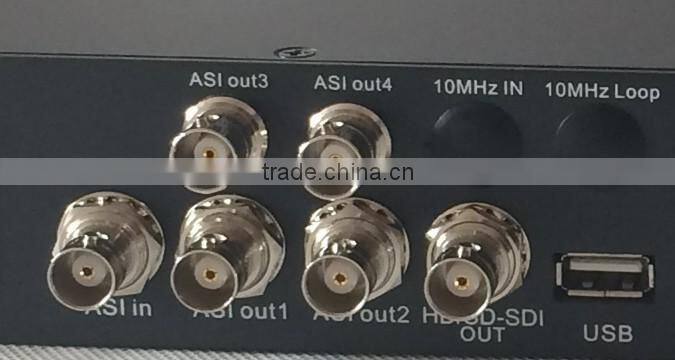

ASI
1xASI input
4x ASI outputs, 2 group ASI separate,2 duplicate ASI per group outputs
impedance:75 ohm
Max transport rate: ≤100Mbps
MPEG over IP
Max transport rate: ≤85Mbps
De-multiplex and re-multiplex transport stream
Addressing Multicast/unicast
Connectors 100M Base-T, RJ45
Encapsulation Protocols MPEG-TS over UDP/RTP
DVB Mode:
 The IP stream will include all the programs and will be sent to the specified multicast or unicast IP Address.
IPTV Mode:
The input transport stream is de-muxed into individual programs,each in a different IP stream.Up to 8 IPTV addresses may be set.
Video decode output
Interfaces
1x HDMI,HDMI 1.3 interface
1x HD/SD-SDI,BNC
1x YPbPr,BNC
1x Composite ,BNC
1x S-Video
Front Panel LCD video Monitoring
Video Formats
1080i @ 50,60,59.94
720p ,576i,,480i
Analog video outputs
PAL,NTSC,SECAM
Decoding Format
MPEG-2 SD 4:2:0 MP @ ML
MPEG-4 AVC SD MP @ L3
MPEG-4 AVC HD MP @ L4.0 / HP @ 4.0
Video processing
Aspect Ratio Conversion 16:9,4:3,Full
Turn on/off the subtitle
Audio decode output interfaces
1x Pair R/L analog audio,BNC

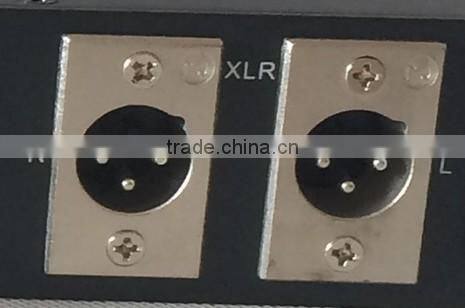

1x pair R/L digital audio,XLR
Audio mode: stereo,left and right
Volume: 0-25
Front Panel LCD Audio Monitoring
Conditional Access
Two PCMCIA Interface
Scrambling algorithm:DVB-CSA
Up to 8 program descrambling simultaneously
SCS interface: ISO7816
Max bitrate: ≤80Mbps
Re-multiplexing
Full or any program through multiplexing
PID Filter,Remapping,Passthrough
Video Formats 1080i @ 29.97, 30, 25 fps
720p @ 59.94, 50, 60 fps
480i @ 29.97 fps
576i @ 25 fps
480p @ 59.94 fps
System function
100M Base-T Ethernet,RJ45,SNMP
7 keys: UP,DOWN LEFT,RIGHT,ENTER,ESC,LOCK
Front-Panel KEY Borard with LCD
LED indicate light
Environment
Comply to GB13837-92 & GB8898-88 standard
Power Supply: AC 90-250V 50/60Hz
Power consumption: 20W
temperature:0~45℃(Operation), -20~80℃(Storage)
Dimensions: 280 (L)x483(W)x44mm(H) (1RU)
Weight: 3.5Kg
