Product Description

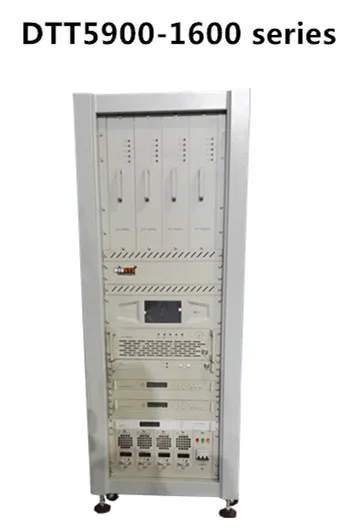

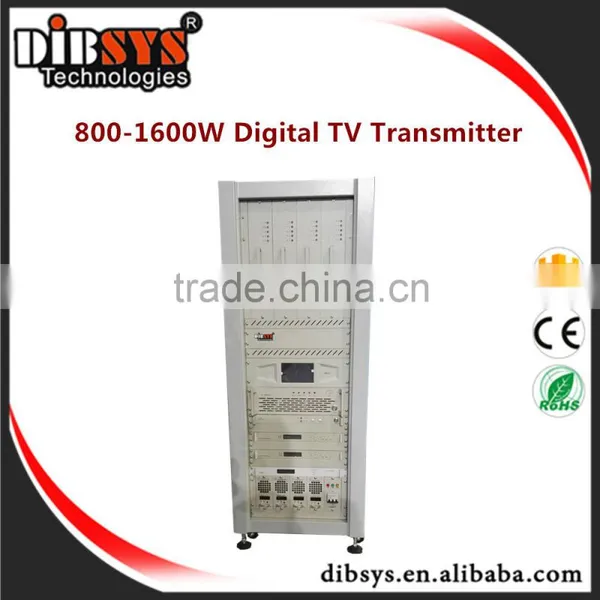

800-1600W Digital TV Transmitter


Dibsys’s DTT5900-1600 series is a medium power air cooled UHF terrestrial DTV transmitter which combines up to four power amplifier modules with a maximum 1600W of output power. It has superior performance and enhanced efficiency by adopting a series of technologies. It can work in any frequency within the UHF span, and the transmitting bandwidth can be up to 80MHz.


This series of products has an optimized design in forced air cooling and architecture, with lower noise, higher efficiency and outstanding anti-interference performance; DTT5900-1600 series can support a wide range of Digital Terrestrial Television (DTT) standards, such as DVB-T/H, ATSC, DTMB, ISDB-T/Tb and even the latest DVB-T2 standards.


By incorporating our latest technologies of linear and non-linear digital adaptive pre-correction, RF delay and co-channel interference rejection, this system fulfills the needs of single band or broadband transmission in medium to large-scale terrestrial coverage scenarios.


Feature


High Performance

---Supports up to 2500W of digital output power for DVB-T/DVB-T2/ISDB-T standard

---Up to 3000W of digital output power for DTMB/ATSC standard

---Optimized structure design, with lower noise, higher efficiency and outstanding anti-interference performance


High Flexibility and Stability

---Modular design across the whole system, easy installation, maintenance and upgrade

---Optional 1+1 redundant exciters and Preamplifiers

---Multiple protection mechanisms are introduced for over load, over temperature, over current and high VSWR

---Large and dynamic Auto Gain Control (AGC) circuit ensures stability of output power

---Improved power efficiency thanks to linear and non-linear Digital Adaptive Pre-correction


High Adaptability and Availability

---Suitable for different contries and/or areas because multiple DTT standards are complied with, including DVB-T, DVB-T2, ATSC, DTMB and ISDB-T/Tb

---Available in single and three phase power grid environments to meet different requirements of deployment

---Wide range of working frequency from 470MHz to 860MHz


Lower CAPEX/OPEX

---Improved ratio of cost to performance, lower CAPEX for operators

---Low power consumption with high efficient LDMOS amplifiers to reduce electricity cost for operators

---Reduced investment in manpower, benefits from convenient local monitoring and management through built-in touch screen display or remote monitoring via SNMP network ---management and/or telcom wireless network


User Friendly Monitoring Interface

---Built in color TFT LCD with touch screen in the front panel, supports monitoring & control of working states and any malfunction on any module without additional testing/monitoring equipment required, such as transmitting power, VSWR, working voltage/current, fan speed, IP address and so on.

Application

---Digital TV head-end system

---IPTV, Over-the-air TV distance learning

---Remote live Rebroadcasts and real-time transmission

---HD or SD video via private IP networks

Specifications
General Parameter
Ordering Codes
DTT5900-800
DTT5900-1000
DTT5900-1200
DTT5900-1600
Output Pewer(RMS)**
800W
1000W
1200W
1600W
Number of PAs
3
4
Number of Power Supplies
3
4
Weight
230Kg(507lbs)
250Kg(551lbs)
Frequency Range(FIN)
470 to 860MHz
Channel Bandwidth
6MHz,8MHz
Supported Standands
DVB-T2,DVB-T/H,ATSC,ISDB-T/Tb
Transmitting Mode
Standard:Single band               Optional:Broadband(maximum 80MHz)
Supported Network
SFN or MFN
Cooling Method
Forced Air Cooling
Dimensions (W×H×D)
650mm×1700mm(35U)×1000mm(25.6’’×66.9’’×39.4’’)
Note:**The above output powers are colculated per ATSC/DTMB standards under single band mode
Main Components
Preamplifier
1×Preamplifier module(3U)
Exciter(Optional)**
1×DVB-T2/DTMB Exciter(modulater)(1U)**
Power Splitter and Combine
Built-in
Monitoring and Control Unit
1×Monitoring control unit(2U) with 7’’LCD touch screen
Bandpass Filter(Optional)
Optional Single band or broadband Bandpass filter
Note:**Please contact our sales representative for the other exciter/modulator requirments.
Environmental
Operating Temperature
0 to 45℃
Operating Humidity
0 to 95%，non-condensing
Power Supply
AC Input
Three-Phase Option
4 wires(3-phase+neutral),342-418V AC,50Hz±5%
Single-Phase Option
2 wires,190-250V AC,50Hz±5%
Surge Protection
Built-in AC Surge Protector
I/O Interface
TS Input
DVB-ASI(BNC female,75Ω)(DTMB/DVB-T2 Exciter)
MPEG-TS over IP
100/1000Base-T,RJ-45(DVB-T2 Exciter)
RF Output
EIA1-5/8’’flange
1PPS Clock Input
BNC,female,50Ω(DTMB/DVB-T2 Exciter)
10MHz Clock Input
BNC,female,50Ω(DTMB/DVB-T2 Exciter)
RF Monitor Output
SMA,female,50Ω
Monitoring & Control
Local Monitoring & Control
TFT LCD touch screen
Network Management Interdace
10/100Base-T Ethernet,1×RJ-45,
SupportingWeb-browser or SNMP network management
Electric Performance
Frequency Stability
≤±1×10-7(Internal reference )
≤±1×10-7(External 10MHz reference clock )
Frequency Accuracy
MFN,≤±100Hz,SFN,≤±1Hz
MER
≥33dB
Shoulder of Single @±fc4.2MHz
≤-36dB
In-band non-flatness@±fc3.591MHz
≤±0.5dB
AGC Power Control Range (△GAGC)
±8dB
Stability of Output Power(△POUT )
≤±0.5dB
Order Information

Model
DTT5900
-5
DTT5900
-10
DTT5900
-20
DTT5900
-30
DTT5900
-50
DTT5900
-100
DTT5900
-200
DTT5900
-300
Output Power (RMS)
5W
10W
20W
30W
50W
100W
200W
300W
Model
DTT5900-400
DTT5900-500
Output Pewer(RMS)**
400W
500W
