Product Description

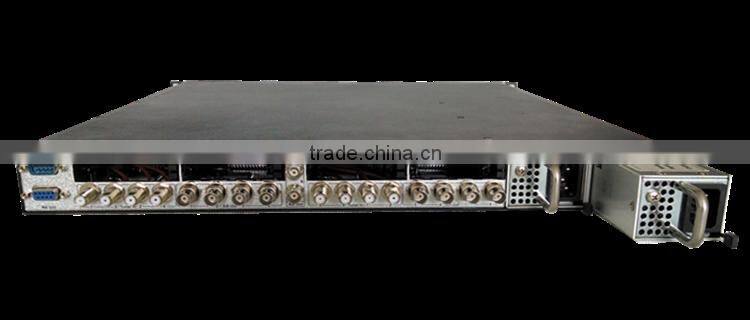

8-Channel CI IRD/Processor


IRD1380 is a high-density, modular and CI decryption professional TS processor equipped with 8 independent tuners, which can be either of DVB-T/T2, DVB-S2/S, DVB-C, DTMB, ISDB-T and ATSC types. It supports a wide range of application by combining 8 tuners processing capability with industry standard outputs including ASI and TS/IP. IRD1380 has 8 DVB common interface slots capable of working with most of well-known CAS in the market to de-crypt multiple pay TV services. IRD1380provides operators an ideal solution for multi receiving, re-multiplexing, descrambling and TS over IP operations, the compact 8 tuners and the powerful 8 CI decryption design make IRD1380 one of the most competitive product in the head-end market.

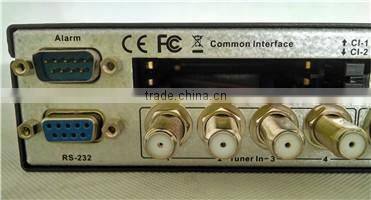

CI Slot

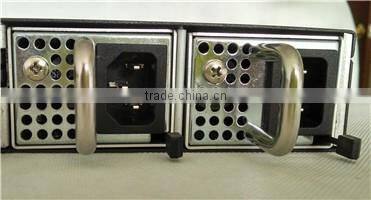

Dual Power Supply

Features


1.8xTuners Input, Supports variety of input options DVB-T2/T/S2/S/C/DTMB/ATSC/ISDB-T

2.Supports DVB-S2 Input Stream Identifier (ISI, optional) and DVB-T2 Multi PLP and SFN MIP pass through

3.Built-in TS re-multiplexer receives from ASI, CI Slot1 to CI Slot8 and TS/IP inputs

4.8×DVB-CI Slots, multi-program decryption, BISS-1 and BISS-E decryption

5.8xASI output the transport stream from CI Slot1 to CI Slot8 or BISS decryption

6.1xchannel full duplex TS over IP or 128xchannels IP out without IP input

7.Remote Control and Supervision by SNMP v2, HTTP WEB

8.On Site software update through IP or USB

9.RSSI, received signal strength, Eb/N0, C/N and BER monitoring

10.Redundency power supply

Technical
Tuner Input
DVB-S/S2 Tuner Input (ISI Factory Optional)
Connector Type 8*F type female 75Ω for Input
Input Frequency Range 950~2150MHz
Input Level -25~-65dBm
Symbol Rate 2~45MBaud
Roll-off Factor DVB-S QPSK: 0.35
DVB-S2 8PSK: 0.35, 0.25, 0.2
FEC Code Rate DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10
DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
LNB Polarity Selection
Voltage 0, 13V, 18V selectable
LNB Band Selection Tone 0/22KHz selectable
Satellite Selection Command DiSEqC 1.0
ISI ID 1 ~ 255 user configurable
DVB-C Tuner Input
Connector Type 8*F type female 75Ω for Input
Input Frequency Range 51~862MHz
Input Level: 51~75dBμV
Symbol Rate 1~7MBaud (ITU J.83 Annex A)
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Bandwidth 6MHz, 7MHz, 8MHz
Input Return Loss 7dB (typ.)
DVB-T/T2 Tuner Input
Connector Type 8*F type female 75Ω for Input
Input Frequency 104~862MHz (VHF/UHF)
Input Level -20~-70dBm
Constellation DVB-T: QPSK, 16QAM, 64QAM

DVB-T2: QPSK, 16QAM, 64QAM, 256QAM
Bandwidth 6MHz, 7MHz, 8MHz
FFT Mode DVB-T: 2K, 8K

DVB-T2: 1K, 2K, 4K, 8K, 16K, 32
DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
FEC Code Rate DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8

DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Input Return Loss 7dB (typ.)
DTMB Tuner Input
Connector Type 8*F type female 75Ω for Input
Input Frequency Range 46.5~866MHz
Input Level: -87~-29dBm
Symbol Rate: 7.56MBaud
Bandwidth: 6MHz/7MHz/8MHz
Constellation: 4QAM-NR,4QAM,16QAM,32QAM,64QAM
Guard Interval: PN420, PN595, PN945
Roll-off Factor: 0.05
Interleaving Depth: 240,720
FEC Code Rate: 0.4, 0.6, 0.8
ATSC Tuner Input
Connector Type 8*F type female 75Ω for Input
Input Frequency Range: 54~864MHz
Input Level: -75~-7dBm(ATSC 8VSB)
Symbol Rate: 10.762MBaud
Constellation: 8VSB
Roll-off Factor: 0.115
Bandwidth: 6MHZ
TS Processing
TS Input Management Demux and Remux among ASI, TS/IP and CI Inputs
TS Output Management Demux and Remux for ASI output
Service and PID Management Service and PID level for Remux, filtering and remapping
PSI/SI PSI/SI table regeneration, NIT and SDT edition, LCN Edition and Re-generation
Descrambler DVB Common Scrambling Algorithm (CSA)
BISS Mode: BISS-1, BISS-E
Common Interface 8 x PCMCIA slots, compatible with

Conax,Cryptoworks,Irdeto,NDS,Mediaguard,SECA,Viaccess and more
ASI Output
Connector Type 9 independent BNC female, 75Ω
Standard: DVB-ASI, EN50083-9
Output Bit Rate: ≤ 200Mb/s
TS Processing 8xASI out pass through the TS from CI 1 to CI8, 1xASI Out from Remux
ASI Input
Connector Type 1*BNC female, 75Ω
Standard DVB-ASI, EN50083-9
Input Bit Rate ≤100Mb/s
TS over IP
Connector Type 1×RJ-45, 100/1000 Base-T
Effective Bit Rate 400Mb/s for 128 channel IP out without IP in
80Mb/s for full duplex 1 channel
Protocol UDP / RTP, Multicast / Unicast, IGMPv3, ARP
Alarm
Connector Type 1×D-sub 9 male
Switching Condition User Defined
Control & Monitoring
Connector Type:1×RJ-45, 10/100M Base-T, for equipment IP Control
Remote Control:SNMP, HTTP (Web Interface)
Local Control: LCD display and 6-key keypad
Serial Port:1×RS-232 D-sub female, for debug use only
Equipment Upgrade: Embedded FTP loader and Telnet
Physical
Dimension:44mm x 255mm x 430mm
Weight: 3.5kg
Power Supply: AC 90V~250V, 50/60Hz
Power Consumption: 30W (exclusive of LNB power)
Operating temperature: 0~45℃
Storage temperature:-10~60℃
Operating Humidity:10~90%, non-condensed
Certification
EMC:EN 55024:1998+A1:2001+A2:2003, EN 55022:2006+A1:2007, EN 61000-3-2:2006, EN 61000-3-3:2008
FCC: Part 15 Class B
LVD: EN 60950-1:2006 + A11:2009
