Cable tv Digital Headend,iptv Headend Video Solution Multi-screen SD/HD Video Encoder and Transcoder HLS,RTMP,Push+Pull Http,udp

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai/Hangzhou
Payment TermsT/T Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Dibsys
Model Number	Caster-T326

Product Description

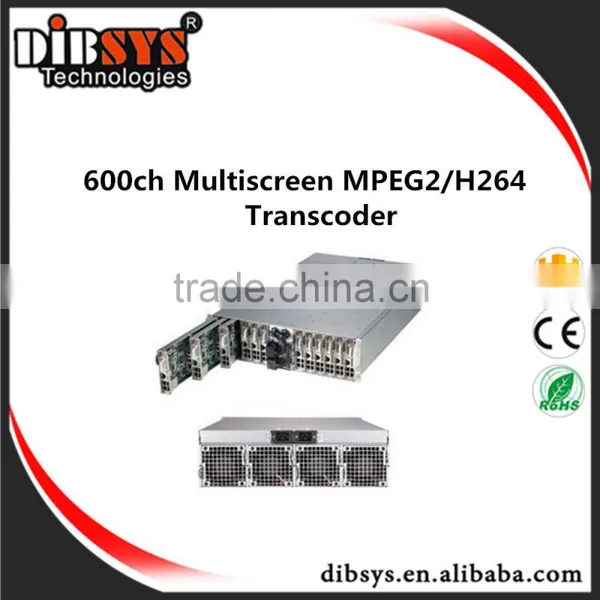

600Ch Multiscreen IPTV Transcoder

Caster-T326 is the superior transcoding solution for producing Mobile TV, Internet TV, and IPTV and broadcast live video services from a single platform, eliminating the need for separate headends. The transcoder delivers high-quality services to tens of thousands of users worldwide, from bandwidth-limited mobile delivery to up to full 1080p HD over high-speed networks, for traditional TVs or big screen smart mobile devices.

Multi-screen transcoder can transcode MPEG-2 or MPEG-4 AVC (H.264) or H.263 content to multiple codecs and stream in different protocols, enabling new multiscreen services.

Caster-T326 runs on powerful hardware, representing the highest density available with the highest performance on a carrier grade 3-RU server platform. Enables to deliver impressive images to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming, and some other servers base on HLS/UDP/RTSP/RTMP/HTTP/RTP protocols.

Feature

1. High density 3-RU platform can process up to 600 input channels and transcode up to 600@SD or 240@720p or 144@Full HD profiles

2. Up to Max.50 channels per Module, A total of 12 modules in 3RU chassis

3. Support dual power supply

4. Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, mobile/web, Set top box applications

5. SD/HD MPEG/H.264-to- H.264 any to any transcoding

6. Mulltiple Codec, Protocol, Bitrate, Resolution, Profile per channel

7. HD-to-SD down, SD-to-HD up conversion

8. GbE IP outputs – UDP,RTSP,RTMP,HTTP,HTTP Live Smooth(HLS),FTP M3u8 playlist files

9. AAC,MPEG,MP3 or Dolby Digital AC-3

10.High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion

11.Integration with content distribution CDNs

12.Superior video quality at ultra-low bitrates, generally video bitrate advised SD about 500kbps, 720p about 1mbps,1080 about 2.5mbps for lowest bitrate

13.Selectable any resolution from QSIF to 1080p

14.Easy-to-Use System Management

15.Web Management

Application

※ Digital cable and Multi-screen headend

※ IPTV, Over-the-air TV distance learning

※ Mobile, Broadcast, Internet TV/Web TV

※ VOD content encoding

Specifications

Input
IP stream input	Two Gig Ethernet Ports per module MPEG-TS with H.264/MPEG4/MPEG2;MPEG-1 Layer II,AAC,AC3 UDP/RTP/RTSP/HTTP/MMS/FTP

Output
IP Output type	Two Gig Ethernet Ports per module
Streaming format	Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP; MPEG-1 Layer II,AAC,AC3,AMR,WM A ,MP3 TS Over UDP/RTP/HTTP 3GP Over RTP FLV Over HTTP/RTMP HTTP Live streaming Apple HLS (m3u8) Mp4

File Output
Encoding	3GPP/3GPP2/WMV/FLV/TS
	File output support timing and capacitive record

Pre-processing
Image setting	Video adjustments（Brightness, contrast, Saturation, Hue）
Frame rate	from 2fps to 30fps
Aspect ratio	4:3 and 16:9, WSS control
Image insertion	LOGO insertion
Subtitle Overlay	Static or roll subtitle, up to 3 way (optional)
PID Configuration	Depending on the configuration, it forwards selected programs via IP data casting; PAT, PMT, video PID, audio PID(s) and PCR information are transmitted.

Video encoding
Bitrate mode	VBR,CBR
Resolutions	80x64 • 176x120 • 128x96 (4:3) • 176x128 • 144x80 • 176x144 • 144x140 • 220x176 • 160x90 (16:9) • 240x176 • 320x240 • 352x288 • 400x300 • 480x360 • 720x576 • 1024x768 • 854x480(16:9) • 1280x720p • 1920x1080p
Max channels per RU	MPEG-2 Input	H.264 Out	Channels	Notes
	Standard def.	Standard def.	Up to 600 streams	Take those information as reference only, For details contact us
	720P	720P	Up to 240 streams
	1080P	1080P	Up to 144 streams
	Up to multiple concurrent outputs per one stream input
Video codec	H.263 Profile0, Levels 10,20,30 MPEG-4 SP, Levels 0,0b, 1,2,3 H.264 Baseline Levels 1,1b,2,3; H.264 Main Profile/High Profile 3.0- 5.1 MPEG-2 MP@ML 4:2:0
GOP Size	I-Frame Time Interval; B-Frame Number; Reference Frame
Video Bitrate	32kbps to 5Mbps
Enhancement filter	Deinterlacing; MABFF CABAC; Noise reduction; Sharpening; Visual Optimizing

Audio encoding
Audio encoding	LC-AAC,HE-AAC and HE-AACv2 (including Parametric Stereo) MPEG-1 Layer, AC3,MP3
Sample rate	8khz to 48khz
Data rate	8kbps to 384kbps

Management
Interfaces	Web Management
Chassis Management Module	1CMM remotely manage and monitor server blades,power supplies, cooling fans, and networking switches

Environment
Power Supply	110-240 VAC
Storage temperature	-40-70°C (-40-158°F)
Operation temperature	0 -50°C (32 -122°F)
Power consumption	1600W (200-240VAC)/1400W (120-140VAC)/1200W (100-120VAC)
Product Dimensions (WDH)	449 x 132.5 x 881mm (17.67"W x 5.21"H x 34.72"D)
Weight	50kg
