Product Description






                   Magicabox HD301 HDMI input







                    Magicabox HD301 HDMI+CVBS input

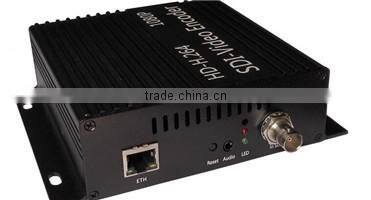

             Magicabox HD301 HD-SDI input


Magicabox HD301 HD-SDI+WIFI input.



Magicabox HD301 VGA+HDMI input.



Magicabox HD301 HDMI+WIFI input.

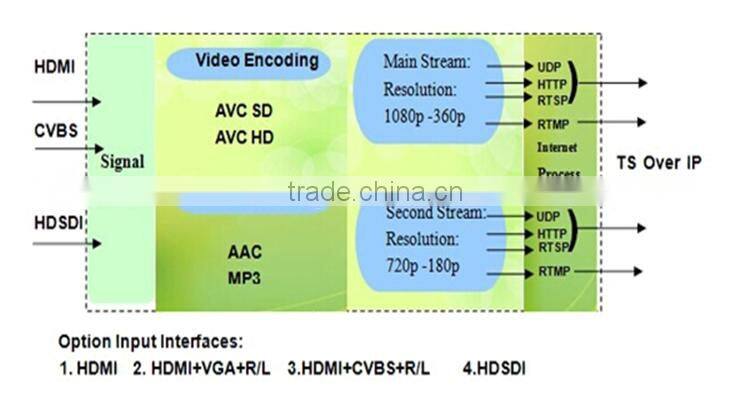

MagicBox HD300 provides open source SDK, supporting Windows/Linux/Unix cross- platform compiling which could realize equipment’s management, video playing, video and other functions.

MagicBox HD300 Lowest cost and easy_to_use video streaming appliance designed for professional video producers who need to simultaneously hd and sd stream a live event. The encoder is a professional high and standard definition video coding product.

It generate dual stream of h.264 encoding output and the AAC audio format. The product has high integration and reasonable price. From any HDMI input source such as a camera or switcher, generates an H.264_encoded stream compliant with RTSP/HTTP/UDP/RTMP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

Feature


1.Provide SDK for second development

2.1HDMI/CVBS/VGA/HDSI input

3.CVBS and HDMI interfaces input simultaneously

4.UDP/RTSP/RTMP/HTTP protocols.

5.wowza server,FMS,ezserver

6.Dual streams out,Each HDMIinput source simultaneously support one channel up to 1920x1080p FullHD and one channel 1280x720 HD output

7.HD-to-SD downscale conversion

8.H.264 High/Main/Baseline Profile,ACC audio

9.supports 2.4 / 2.5G wifi transmission. 802.11n is compatible with IEEE802.11g,IEEE802.11b

10.Support CBR and VBR mode

11.WEB Management

12.Easy-to-Use System Management

Inputs
Video inputs
HDMI(HDCP)/CVBS(simultaneously)/VGA(option)
HD-SDI/CVBS/VGA
(option)
Progressive1920x1080 @ 60/59.94/50/24/23.98 Frames per second1280x720 @ 60/59.94/50 Frames per secondInterlaced1920x1080i 29.97/25 frames per secondVideo Input Format is Auto-Detected
Audio inputs
Processes first two channels of audio embedded in HDMI/HD-SDI input signal
Unbalanced analog stereo
input via 1/8” (3.5mm) jack(option)
Outputs
IP Output type
RJ45 providing 10/1000Base-T Ethernet with Static or DHCP addressing;
wifi(option)2.4Ghz,802.11n is compatible with IEEE802.11g,IEEE802.11b,
the effective transmission distance:30m
Protocol
RTMP,RTSP/HTTP/UDP
Multi-cast (number of clients may vary from 3 to 10)
Multi-Screen
Up to 2 channels High def. and any resolution of streams simultaneously in HD Source inputs
Users Interface
Computer Based control
HTTP via standard PC or web browser using Command Center. The simple Control API and SDK is also available to programmers to create their own application
Pre-processing
Image setting
Video adjustments(Brightness, contrast, Saturation, Hue)
Frame rate
from 5fps to 30fps
Image insertion
OSD insertion
Enhancement filter
Deinterlacing; Noise reduction; Sharpening; Visual Optimizing;Filtering
H.264/MPEG-4 Part 10 (AVC) Video Encode
Bitrate mode
VBR,CBR
HDMI/HD-SDI
Resolutions
First stream
1920*1080,1280*720,1024*576,850*480,720*576
704*576,640*480,640*360,auto
Second Stream
1280*720,800*450,720*576,720*408,704*576,640*480,640*360,352*288,320*240,320*180,auto
Encode Frame Rates
Encode frame rates representing 1:1, ½ and ¼of the input frames rates are
supportedNote that the maximum encoded frame rate is 30fps when input resolution is 1920x108
Encoding Profiles
H.264 Main Profile/High Profile/Baseline Profile
Video Bitrate
16kbps to 12Mbps
Encoding Controls
2.0, 3.0, 3.1, 4.0, 4.1 Level
Support Variable bit rate
Support Average max/min data rate controls
Deblocking Filter
Key Interval
5-200
MPEG-4 AAC Audio Encoder
Audio encoding
AAC,MP3(Option)
Bit Rates
Range from 48 kbps to 256 kbps
Resample Rate
32Khz,44.1Khz
Audio Channel
L+R,L,R
Environment
Warranty
3 years with free telephone support
Power Supply
+12V(Compact size)
220V(1RU,3RU)
Power consumption
28W
Operation temperature
0 -50°C (32 -122°F)
Storage temperature
-40-70°C (-40-158°F)
Dimensions
146mm x 100mm x 45mm(Comact)
484mm x 315mm x 44mm(1RU)
484mm x 315mm x 135mm(3RU)
Weight
1.0kg(Compact);4.0kg(1RU);10Kg(3RU)
