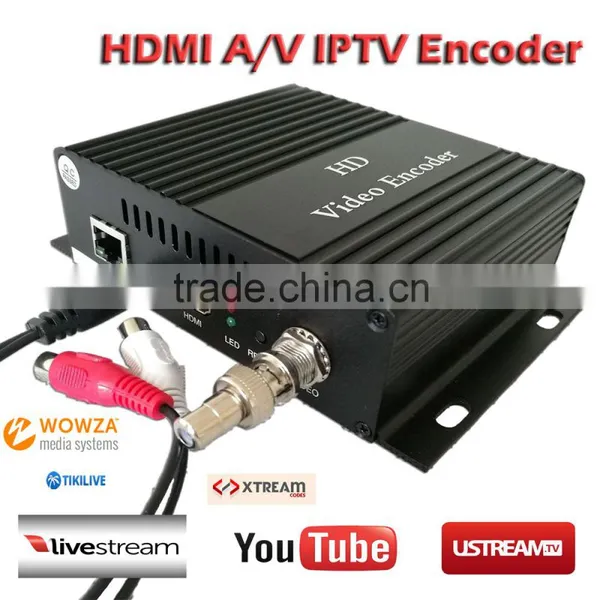

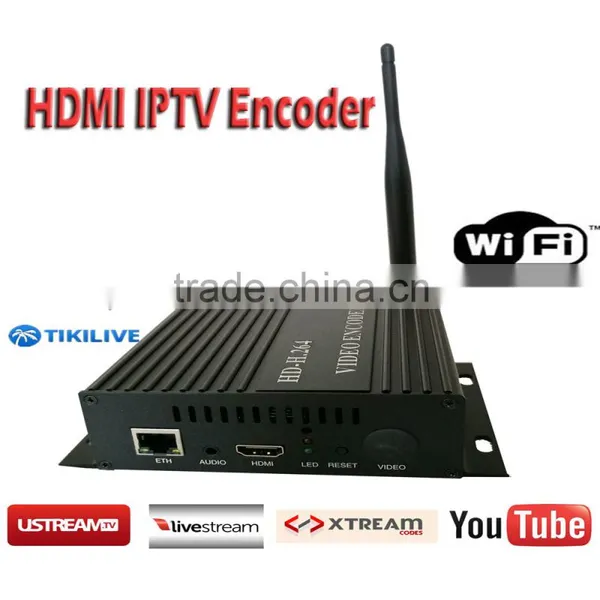

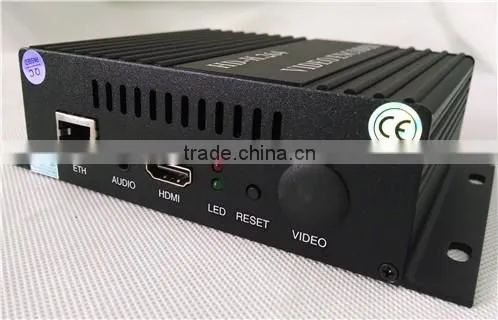

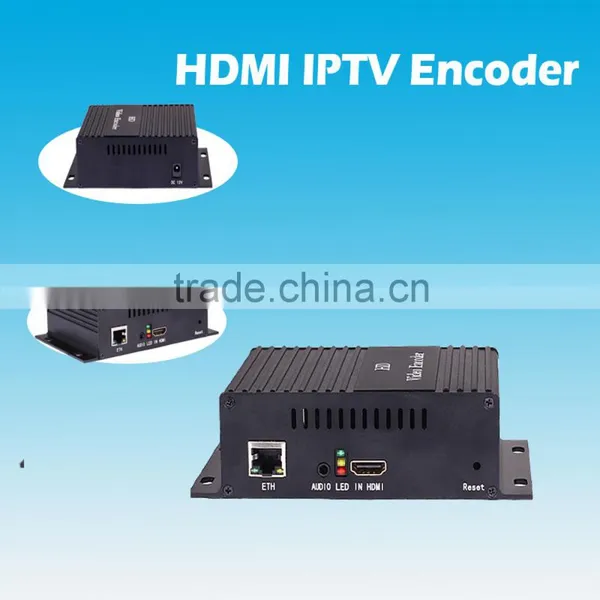

Mini H.264 Hardware Encoder iptv streamer for OTT, Web, Mobile tv

MagicBox HD300 provides open source SDK, supporting Windows/Linux/Unix cross- platform compiling which could realize equipment’s management, video playing, video and other functions.

MagicBox HD300 Lowest cost and easy_to_use video streaming appliance designed for professional video producers who need to simultaneously hd and sd stream a live event. The encoder is a professional high and standard definition video coding product.

It generate dual stream of h.264 encoding output and the AAC audio format. The product has high integration and reasonable price. From any HDMI input source such as a camera or switcher, generates an H.264_encoded stream compliant with RTSP/HTTP/UDP/RTMP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

Feature

1.Provide SDK for second development

2.1HDMI/CVBS/VGA/HDSI input

3.CVBS and HDMI interfaces input simultaneously

4.UDP/RTSP/RTMP/HTTP protocols.

5.wowza server,FMS,ezserver

6.Dual streams out,Each HDMIinput source simultaneously support one channel up to 1920x1080p FullHD and one channel 1280x720 HD output

7.HD-to-SD downscale conversion

8.H.264 High/Main/Baseline Profile,ACC audio

9.supports 2.4 / 2.5G wifi transmission. 802.11n is compatible with IEEE802.11g,IEEE802.11b

10.Support CBR and VBR mode

11.WEB Management

12.Easy-to-Use System Management
