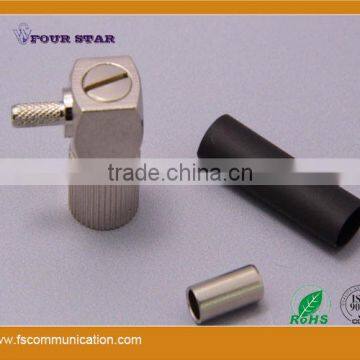

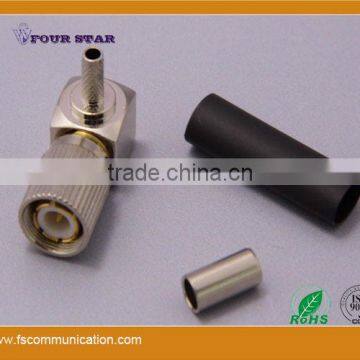

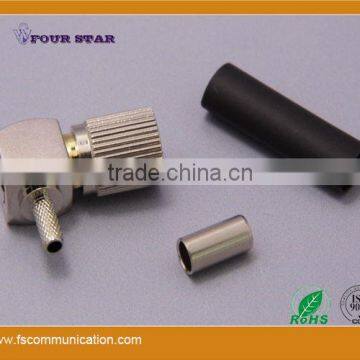

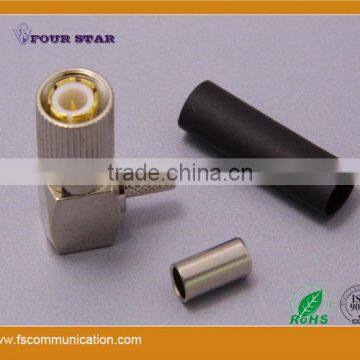

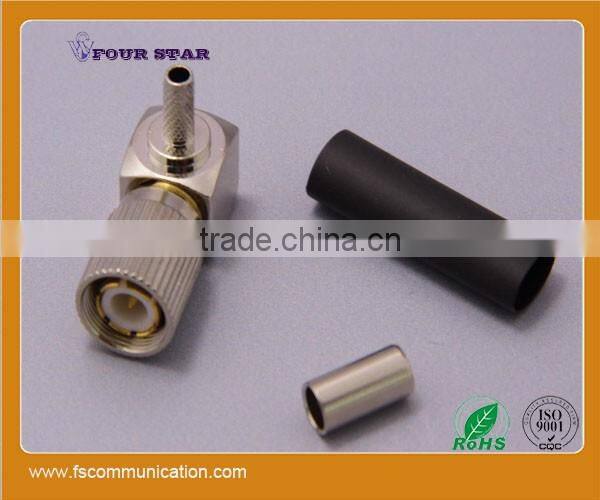

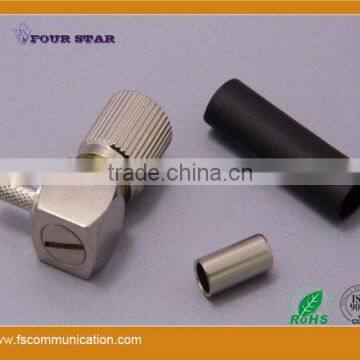

1.6/5.6 Male Right Angle Crimp Connector For BT3002 Cable
US$ 0.56 - 0.87
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Four Star
Model Number:
1.6/5.6-C-JWBT3002
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMB Connector Female Back Bulkhead Crimp for RG316 CableUS$ 0.71 - 1.03MOQ: 100 Pieces -
1.6/5.6 Male Clamp Right Angle Connector For BT3002 Cable CUS$ 0.83 - 1.05MOQ: 100 Pieces
-
SMB Connector Female Clamp for RG316 CableUS$ 0.71 - 1.03MOQ: 100 Pieces
-
1.6/5.6 Male Clamp Right Angle Connector For BT3002 Cable BUS$ 0.83 - 1.05MOQ: 100 Pieces
-
SMB Connector Male Crimp for RG316 CableUS$ 0.38 - 0.73MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
Four Star
Model Number
1.6/5.6-C-JWBT3002
Type
Other, 1.6/5.6
Application
RF
Gender
Male
Product Description
| 1.6/5.6 DIN Connector Male Right Angle Crimp BT3002 Cable | ||
| Model No. | 1.6/5.6-C-JWBT3002 | |
| Interface | IEC 60169-13;CECC 22240;DIN47295 | |
| Electrical | ||
| Characteristic Impedance | 75ohm | |
| Frequency Range | DC-1GHz | |
| VSWR | ≤1.30@DC-1000MHz | |
| 3rd Order IM (PIM3) | — | |
| Working Vlotage | 330V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥1000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥10000MΩ | |
| Center Conductor Retention Force | ≥0.5N | |
| Coupling Nut Retention Force | ≥300N | |
| Contact Resistance | Center Contact ≤4mΩ | Outer Contact ≤2 mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Beryllium Bronze | Au |
| Resilient Contact | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Gasket | — | — |
| Cable Clamp | — | — |
| Ferrule | Annealed Copper | Ni |
| Environmental | ||
| Operating Temperature | -45 ℃~-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | BT3002 / Erission TZC75024 Cable | |
