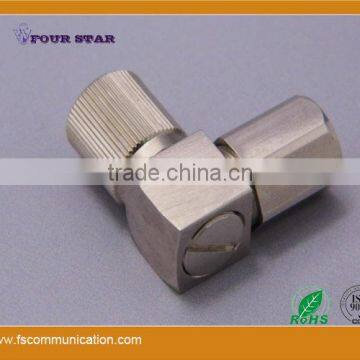

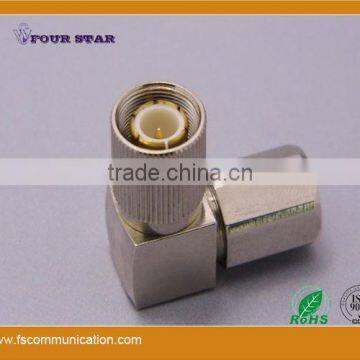

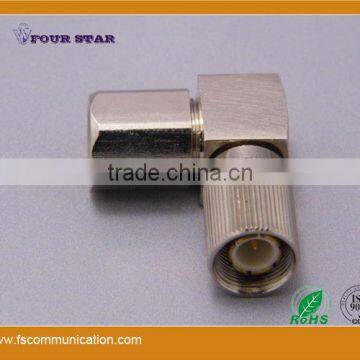

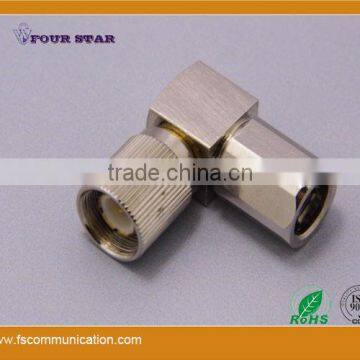

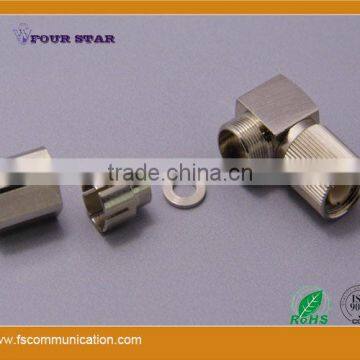

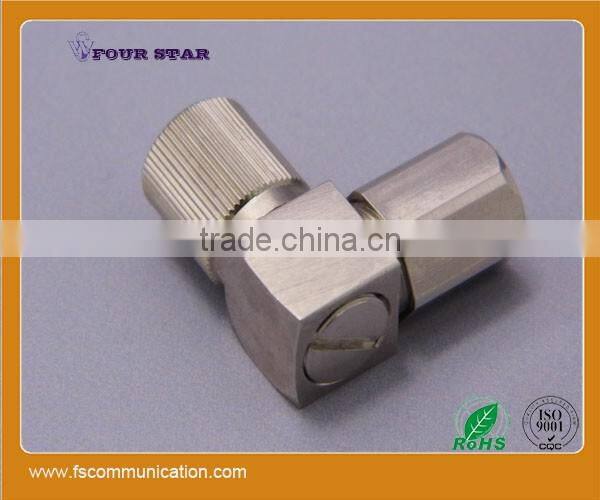

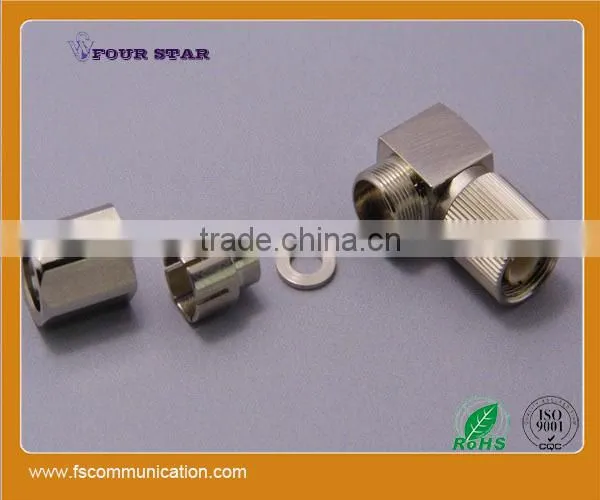

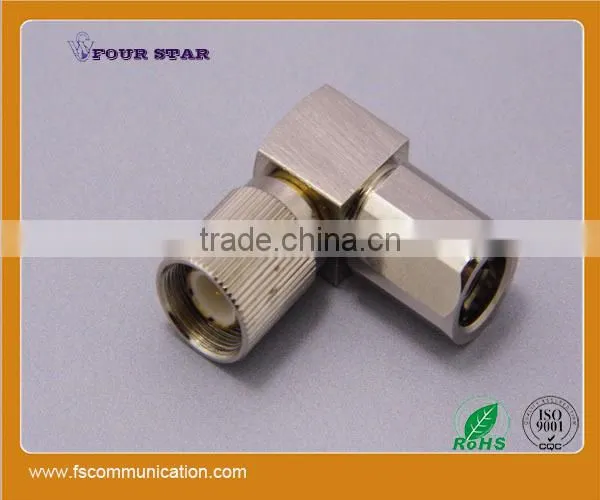

1.6/5.6 Male Clamp Right Angle Connector For BT3002 Cable C

Name: 1.6/5.6 Male Clamp Right Angle Connector For BT3002 Cable C
Brand: Four Star
SKU: 110654501
Availability: InStock

US$ 0.83 - 1.05 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Four Star

Model Number:

1.6/5.6-JWBT3002-C

Four Star Communication Parts Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Four Star

Model Number 1.6/5.6-JWBT3002-C

Type Other, 1.6/5.6

Application RF

Gender Male

Product Description

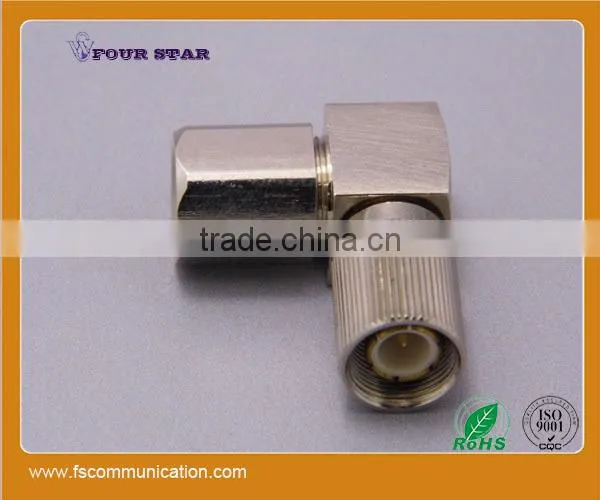

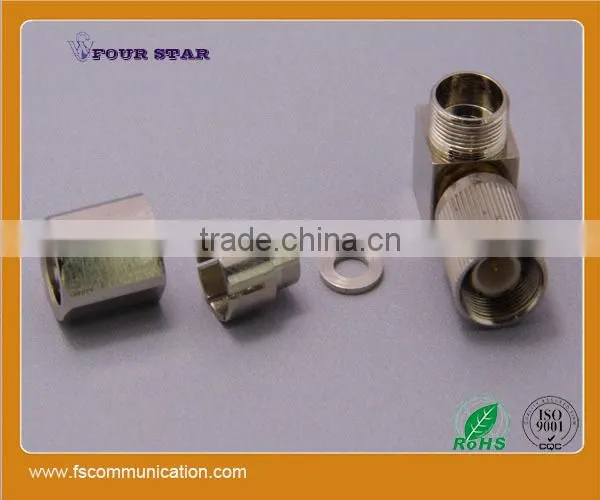

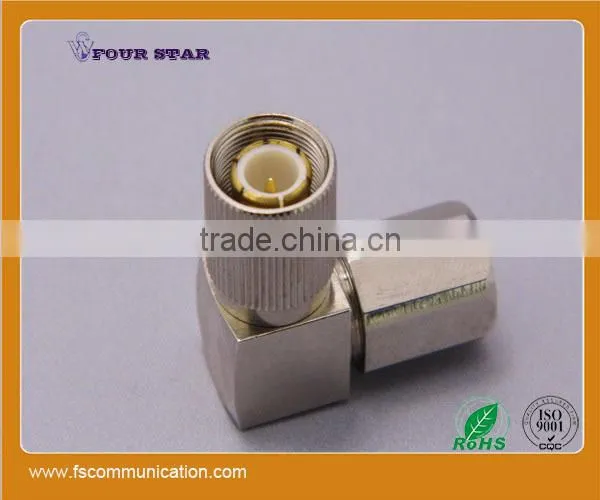

1.6/5.6 DIN Connector Male Right Angle Clamp BT3002 Cable
Model No.	1.6/5.6-JWBT3002-C
Interface	IEC 60169-13;CECC 22240;DIN47295
Electrical
Characteristic Impedance	75ohm
Frequency Range	DC-1GHz
VSWR	≤1.30@DC-1000MHz
3rd Order IM (PIM3)	—
Working Vlotage	330V RMS,50Hz,at sea level
Dielectric Withstanding Voltage	≥1000V RMS,50Hz,at sea level
Dielectric Resistance	≥10000MΩ
Center Conductor Retention Force	≥0.5N
Coupling Nut Retention Force	≥300N
Contact Resistance	Center Contact ≤4mΩ	Outer Contact ≤2 mΩ
Mechanical
Durability	Mating cycles ≥500
Material and Plating
Parts Name	Material	Plating
Body	Brass	Ni
Insulator	PTFE	—
Inner Conductor	Beryllium Bronze	Au
Resilient Contact	Phosphor Bronze	Au
Coupling Nut	Brass	Ni
Gasket	—	—
Cable Clamp	Brass	Ni
Ferrule	—	—
Environmental
Operating Temperature	-45 ℃~-85 ℃
Weatherproof Rate	IP67
RoHs (2002/95/EC)	Compliant by exemption
Suitable Cable Family	BT3002 / Erission TZC75024 Cable
