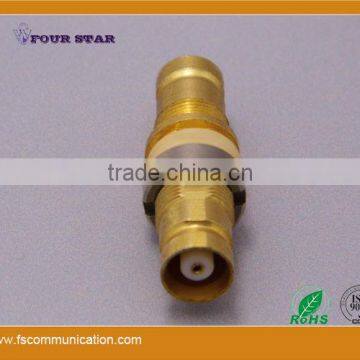

1.6/5.6 Female to female bulkhead connector adaptor A
USD $0.6 - $0.92
/ Piece
100 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
1.6/5.6 Male Clamp connector For ST212 Cable
-
SMB Connector Female Right Angle for P.C.B Mount
-
SMB Connector Female Straight for P.C.B Mount
-
SMB Connector Male Right Angle for P.C.B Mount
-
SMB Connector Male Right Angle for P.C.B Mount
-
1.6/5.6 female bulkhead right angle crimp connector for RG179 cable
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Four Star | |
| Model Number | 1.6/5.6-KKY-A | Type | Other, 1.6/5.6 | |
| Application | RF | Gender | Female |
Product Description
Product Description
| 1.6/5.6 Female to female bulkhead connector adaptor | ||
| Model No. | 1.6/5.6-KKY-A | |
| Interface | IEC 60169-13;CECC 22240;DIN47295 | |
| Electrical | ||
| Characteristic Impedance | 75ohm | |
| Frequency Range | DC-1GHz | |
| VSWR | ≤1.30@DC-1000MHz | |
| 3rd Order IM (PIM3) | — | |
| Working Vlotage | 330V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥1000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥10000MΩ | |
| Center Conductor Retention Force | ≥0.5N | |
| Coupling Nut Retention Force | ≥300N | |
| Contact Resistance | Center Contact ≤4mΩ | Outer Contact ≤2 mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Au |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut /Washer | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Cable Clamp | — | — |
| Ferrule | — | — |
| Environmental | ||
| Operating Temperature | -45 ℃~-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | — | |
