Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > SMB Connector Male Back Bulkhead for Receptacle

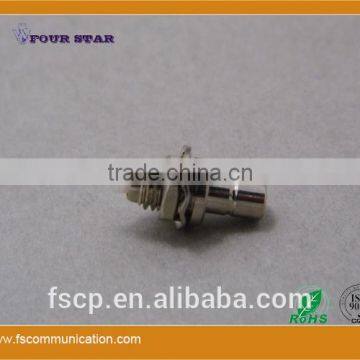

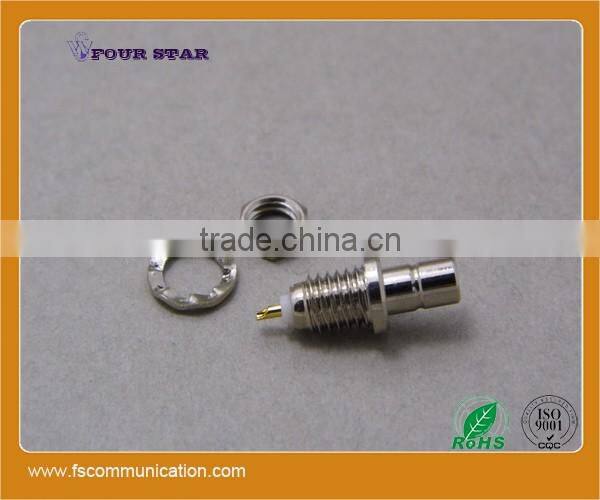

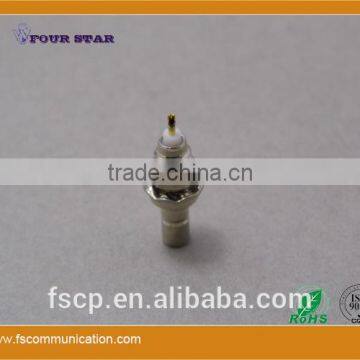

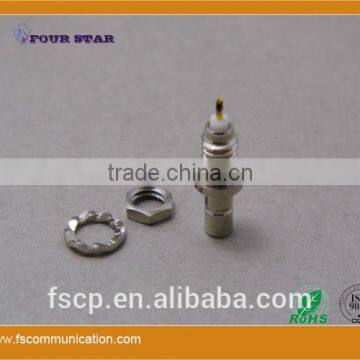

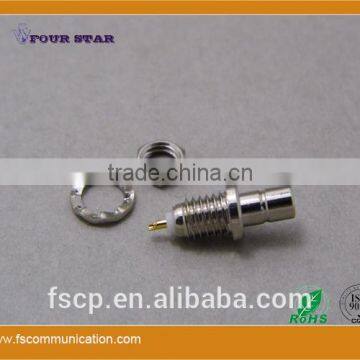

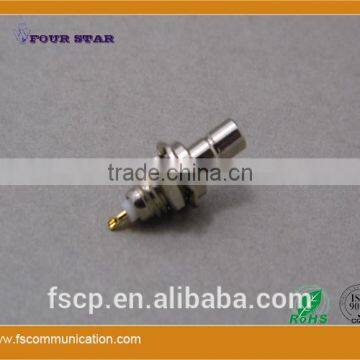

SMB Connector Male Back Bulkhead for Receptacle
US$ 0.48 - 0.79
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Four Star
Model Number:
SMB-JRYR-A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMB Connector Female Crimp for FLEX-5 CableUS$ 0.48 - 0.79MOQ: 100 Pieces -
SMB Connector Female Crimp Right Angle for FLEX-3 CableUS$ 0.56 - 0.92MOQ: 100 Pieces
-
SMB Connector Male Crimp for FLEX-3 CableUS$ 0.44 - 0.76MOQ: 100 Pieces
-
SMB Connector Female Crimp for FLEX-3 CableUS$ 0.48 - 0.79MOQ: 100 Pieces
-
SMB Connector Female Crimp Right Angle for FLEX-2 CableUS$ 0.56 - 0.92MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
Four Star
Model Number
SMB-JRYR-A
Type
SMB
Application
RF
Gender
Male
Product Description
SMB Connector Male Back Bulkhead for Receptacle
| SMB Connector Male Back Bulkhead for Receptacle | ||
| Model No. | SMB-JRYR-A | |
| Interface | IEC 60169-10;CECC 22130;MIL-C-39012 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-4GHz | |
| VSWR | ≤1.30@DC-1000MHz | |
| 3rd Order IM (PIM3) | — | |
| Working Vlotage | 335V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | 1000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥1000MΩ | |
| Center Conductor Retention Force | ≥0.28N | |
| Engagement force | 8-63N | |
| Disengagement force | 8-63N | |
| Contact Resistance | Center Contact ≤6mΩ | Outer Contact ≤1 mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Beryllium Bronze | Au |
| Resilient Contact | Beryllium Bronze | Ni |
| Coupling Nut | — | — |
| Gasket | — | — |
| Cable Clamp | — | — |
| Ferrule | — | — |
| Environmental | ||
| Operating Temperature | -45 ℃~-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | — | |
