SMA Male Right Angle Crimp Connector for LMR200 Cable
US$ 0.56 - 0.89
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Four Star
Model Number:
SMA-C-JW200
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7/16 Connector Male for 1/2'' Superflexible CableUS$ 2.1 - 2.58MOQ: 100 Pieces -
4.3/10 Female to n Female Connector AdaptorUS$ 3.2 - 4.5MOQ: 100 Pieces
-
4.3/10 Male to n Male Connector AdaptorUS$ 3.2 - 4.5MOQ: 100 Pieces
-
3-1/8'' EIA Flange Connector to 7/8'' EIA Flange Swivel Connector AdaptorUS$ 255.5 - 280.5MOQ: 2 Pieces
-
3-1/8'' EIA Flange Connector to 1-5/8'' EIA Flange Swivel Connector AdaptorUS$ 234.5 - 281.5MOQ: 2 Pieces
Place of Origin
Jiangsu, China
Brand Name
Four Star
Model Number
SMA-C-JW200
Type
SMA
Application
RF
Gender
Male
Product Description

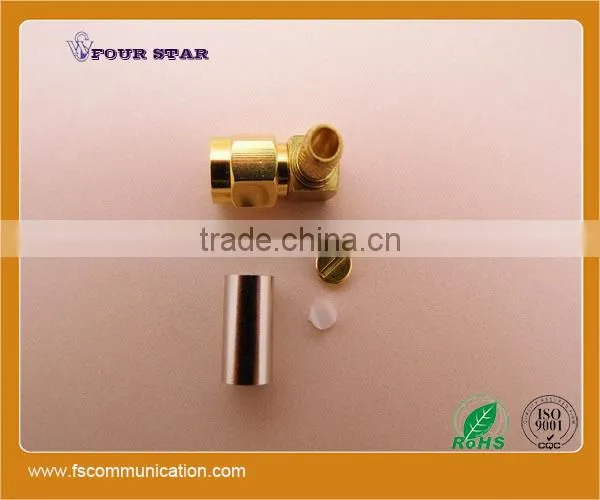

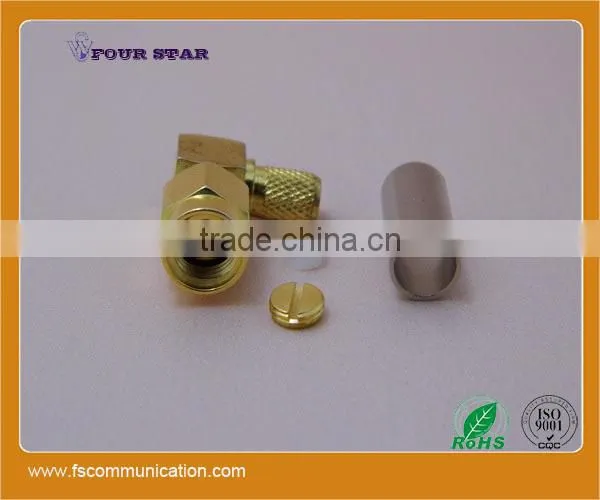

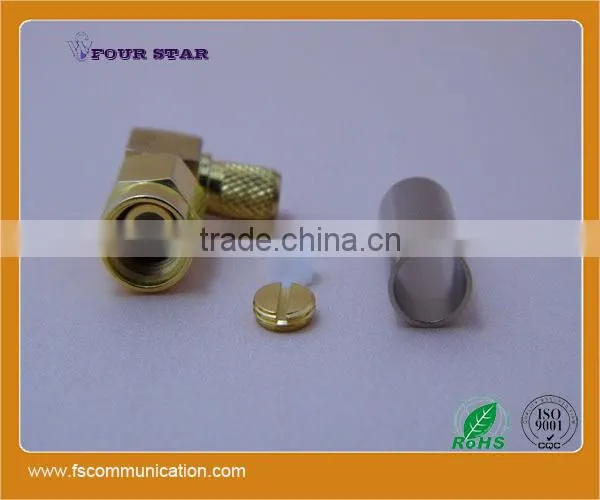

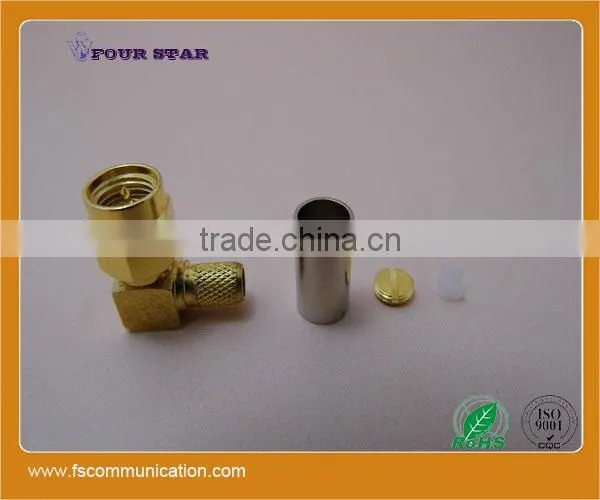

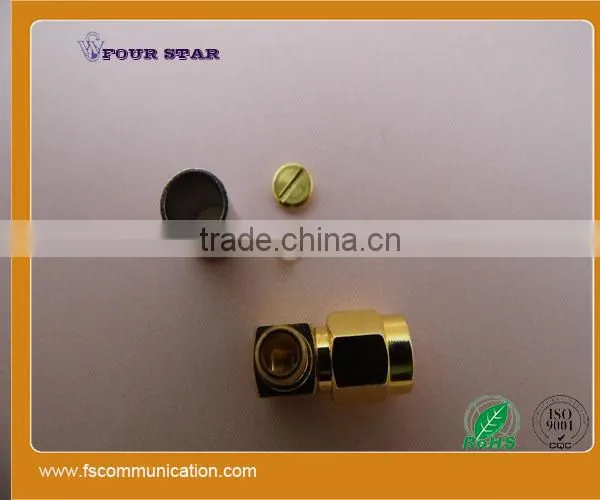

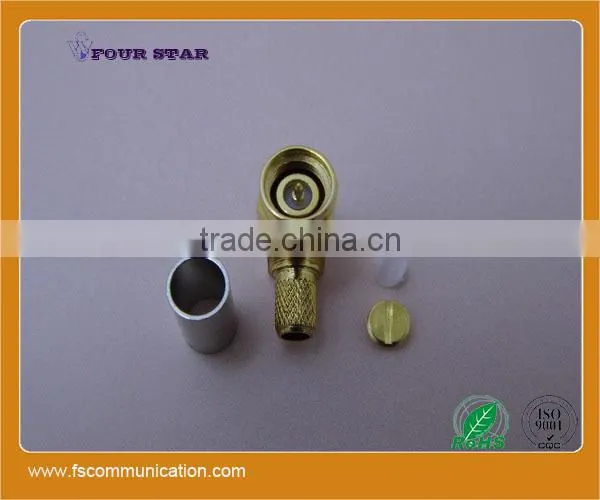

SMA male right angle crimp connector for LMR200 cable
SMA male right angle crimp connector for LMR200 cable | ||
| Model No. | SMA-C-JR400 | |
| Interface | IEC 60169-15;CECC 22110;MIL-C-39012 | |
| Electrical | — | |
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-12.4GHz | |
| VSWR |
≤1.20@DC-3000MHz ; ≤1.35@3000MHz-6000MHz |
|
| Insertion Losss | ≤0.15dB/6GHz | |
| 3rd Order IM (PIM3) | — | |
| Working Vlotage | 335V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥1000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤3mΩ | Outer Contact ≤2.5 mΩ |
| Mating | — | |
| Mechanical | — | |
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Ni(Nickel) |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au(Gold) |
| Coupling Nut | Brass | Ni(Nickel) |
| Gasket | Silicone Rubber | — |
| Cable Clamp | — | — |
| Ferrule | Annealed Copper | Ni |
| Environmental | ||
| Operating Temperature | _45 ℃~-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | LMR400/RG213/RG8 Cable | |
