Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > 3-1/8'' EIA Flange Connector to 7/8'' EIA Flange Swivel Connector Adaptor

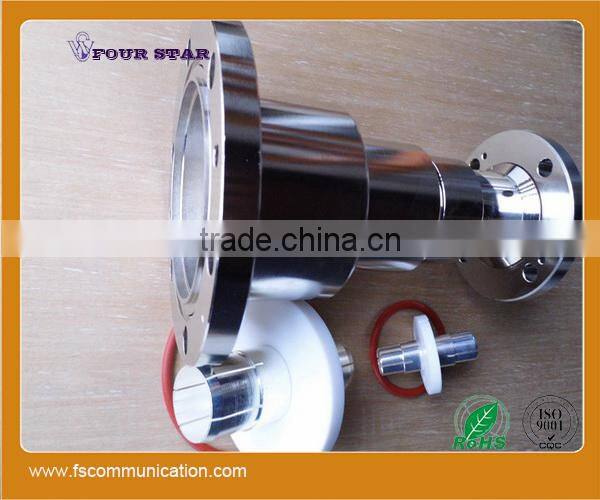

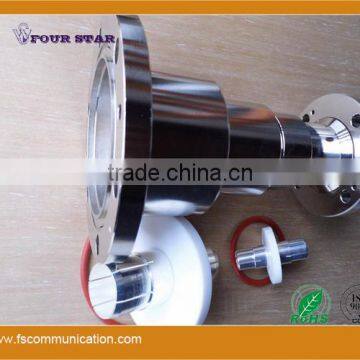

3-1/8'' EIA Flange Connector to 7/8'' EIA Flange Swivel Connector Adaptor
US$ 255.5 - 280.5
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Four Star
Model Number:
25/8EIA-7/8EIA-JJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3-1/8'' EIA Flange Connector to 1-5/8'' EIA Flange Swivel Connector AdaptorUS$ 234.5 - 281.5MOQ: 2 Pieces -
3-1/8" EIA Flange to 3-1/8" EIA Flagne Right Angle Connector AdaptorUS$ 280.5 - 312.5MOQ: 2 Pieces
-
EIA Flange 3-1/8" Connector to 7/16 Male Connector AdaptorUS$ 367.5 - 419.8MOQ: 2 Pieces
-
4.3/10 Male to N Female Connector AdaptorUS$ 3.1 - 6.51MOQ: 100 Pieces
-
4.3/10 Female Flange Connector With ReceptacleUS$ 3.2 - 4.8MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
Four Star
Model Number
25/8EIA-7/8EIA-JJ
Type
Other, EIA flange adaptor
Application
RF
Gender
Male
Product Description
|

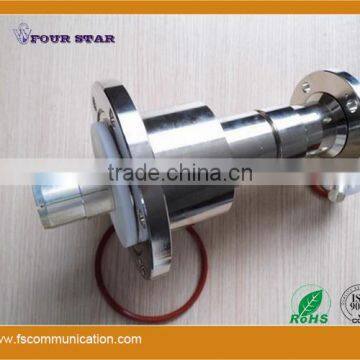

3-1/8" EIA flange to 7/8" EIA flange Connecotor Swivel Adaptor
| ||
| Model No. | 318EIA-78EIAJJ | |
| Interface | 7/8" EIA and 3-1/8" EIA Flange/CECC 22150 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-5GHz | |
| VSWR | ≤1.07@DC-1000MHz | |
| Insertion loss typical | ≤0.03dB | |
| Dielectric Withstanding Voltage | ≥6000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Average Power | 3.40KW @900MHz | |
| Peak Power Maximum | 90KW | |
| Contact Resistance | Center Contact ≤1.5mΩ | Outer Contact ≤1.5 mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥50 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Ag |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Cable Clamp | Brass | — |
| Hardware kit(Bolts /Nut/Washer) | Stainless Steel | — |
| Environmental | ||
| Operating Temperature | —45 °C-85 °C | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant By Exemption | |
| Suitable Cable Family | — | |
packaging&shipping
our services
We provide comprehensive aftersales service,including quality service, guidance services, We focus on customer needs in every detail. If you have any question please contact us.
