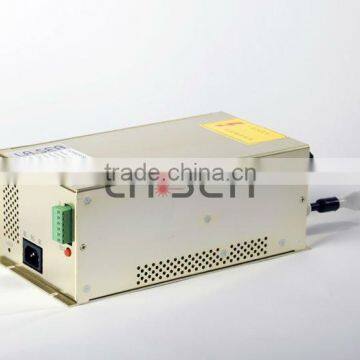

Power Supply for co2 laser tube

Name: Power Supply for co2 laser tube
Brand: EFR
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Place of Origin:

Beijing, China

Brand Name:

EFR

Model Number:

PS-N100

We can provide you the power supply from 60W,80W,100W,130W,150W, and input voltage is AC220V or ac110V

Features:

1. Excellent compatibility.

2. Extending the lifespan of the laser tube.

3.Power supply has a feedback port, which can be used for closed-loop control.

4. Power supply itself has a protection while in open-circuit state.

Model	PS-N60/80	PS-N100	PS-N130/150
Input voltage	AC220V or AC110V(please attach a note when place the order)
Exchange rate	47 - 440Hz
Cold surge current	≤60A(AC220V input)/≤30A(AC110V input)
Leakage current	≤0.7mA(AC220V input)/≤0.4mA(AC220V input)
Max output voltage	DC 35KV	DC 50KV	DC 50KV
Max output current	DC 35mA	DC 35mA	DC 38mA
Efficiency	≤92% (full-load)
MTBF	≤10000 hours
Response speed	≤1ms(from Switching signal to the output current achieve to 90% of Pre-set current
Control Port	TTL Level switch to control, Effective level, to choose high/low
withstand voltage	input - output, input - shell; AC1500V 10mA 60s connect output cathode and shell
Protection	Allowed to work under open-circuit condition shortly (the case touch the ground well, BAN the power arcing between the anode and the case)
Usage environment	Work temperature: (-10 - 40)°C. Relative humidity:≤90%
Cooling Type	Forced air cooling
Size L×W×H(mm)	250×139×107	285×139×107	352×139×107
