Help CenterNema8 High Torque Stepper Motor
US$ 12.50 - 12.50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
JUGETEK
Model Number:
8HY001-20A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Shaft Nema17 48mm Length Stepper MotorUS$ 9 - 11MOQ: 1 Piece -
NEMA17 Stepper Motor 40mm Length Lead 1.2A With 4P 1M Long Cables Use for 3D or CNCUS$ 6.00 - 6.00MOQ: 1 Piece
-
YJP150 Capsule PolisherUS$ 1,000 - 3,000MOQ: 1 Set
-
SPM120 Automatic Disc-type Pill Counting MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Color Mixing Machine 50US$ 600 - 700MOQ: 1 Carton
Place of Origin
Shanghai, China
Brand Name
JUGETEK
Model Number
8HY001-20A
Phase
2
Type
Hybrid
Certification
CCC, CE, ISO, ROHS, UL, Other, CCC, CE, ISO, ROHS, UL, others
Step Angle(degrees)
1.8 Degree
Holding Torque
18mN.m
Current / Phase
0.6A
Nema8 30mm Long High Torque Stepper Motor
Order No. 8HY001-20A.PDF

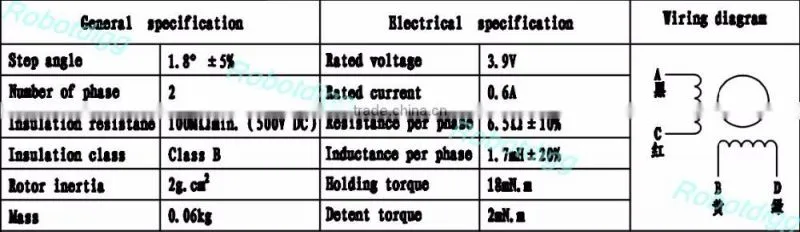

Specifications: Two phase bipolar 4 lead wires, miniature nema8 stepper motor
Holding Torque: 18mNm
| Step Angle | 1.8 Deg |
| Rated Current | 0.6A per phase |
| Rated Voltage | 3.9V |
| Inductance per Phase | 1.7mH+-20% |
| Resistance per Phase | 6.5 Ohms |
| Motor Length | 30mm |
| Insulation Resistance | 100M Ohm Min. ,500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft | Single round shaft 4mm |
