NEMA17 Stepper Motor 40mm Length Lead 1.2A With 4P 1M Long Cables Use for 3D or CNC

NEMA17 Stepper Motor 40mm Length Lead 1.2A With 4P 1M Long Cables Use for 3D or CNC thumbnail-1
NEMA17 Stepper Motor 40mm Length Lead 1.2A With 4P 1M Long Cables Use for 3D or CNC thumbnail-2

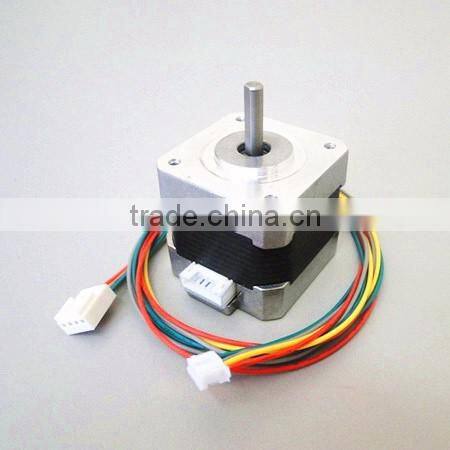

NEMA17 Stepper Motor 40mm Length Lead 1.2A With 4P 1M Long Cables Use for 3D or CNC photo-1

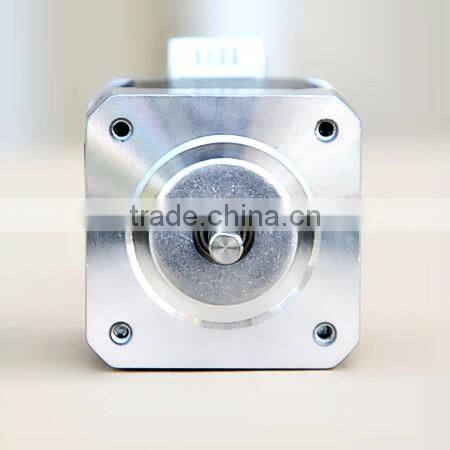

NEMA17 Stepper Motor 40mm Length Lead 1.2A With 4P 1M Long Cables Use for 3D or CNC photo-2
US$ 6.00 - 6.00 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
JUGETEK
Model Number:
17HS3001-20B
Contact Supplier Request Quote Chat Now
Jugetek (Shanghai) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name JUGETEK
Model Number 17HS3001-20B
Phase 2
Type Hybrid
Certification CCC, CE, ISO
Step Angle(degrees) 1.8 deg/step
Holding Torque 0.4 N.m Min
Current / Phase 1.2A

NEMA17 40mm long Reprap Stepper Motor

Cable with connectors are included in the price. To all of RobotDigg stepper motors. The connector end to the stepper driver can directly plug to A4988 or A4983.
Flat Shaft or D Cut Shaft

NEMA17 Stepper Motor 40mm Length Lead 1.2A with 4P 1M Long Cables use for 3D or CNCNEMA17 Stepper Motor 40mm Length Lead 1.2A with 4P 1M Long Cables use for 3D or CNC

Monthly production 1,000-2,000pcs for Reprap Projects.

This Nema17 Stepper is what you need for your Reprap, Makerbot and other 3D Printers or CNC or Laser or Plasma cutter kits.
200 steps per revolution (1.8 deg/step)
2 Phase bipolar 4 wires
Rated Voltage 2V DC (It's not working voltage of this stepper. There is No problem to use 12V, 24V or even higher to 36V to drive this motor.)
Rated Current 1.2A
Phase Resistance: 1.7 Ohm ± 10% (20º C)
Phase inductance: 4.5 mH ± 20% (1kHz 1 V rms)
Holding torque: 0.4 N.m Min.
Shaft diameter: 5mm / 0.188" (3/16")
Shaft length: 22mm
Motor depth: 40mm
