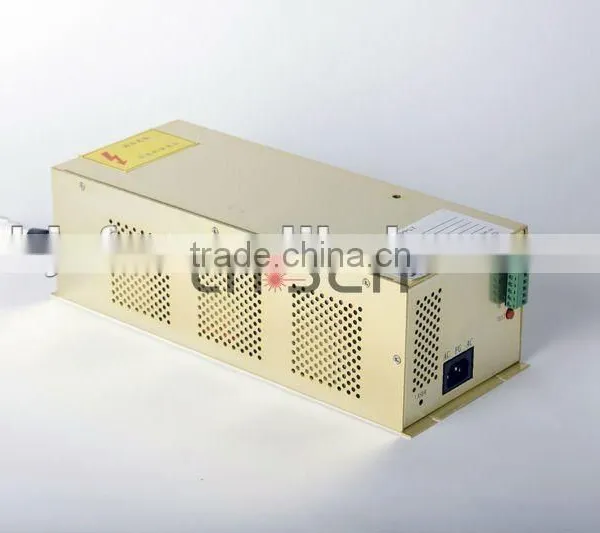

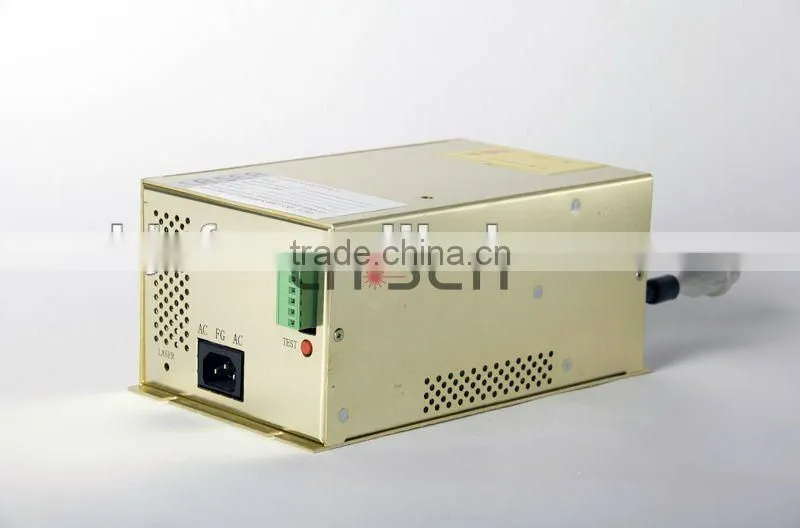

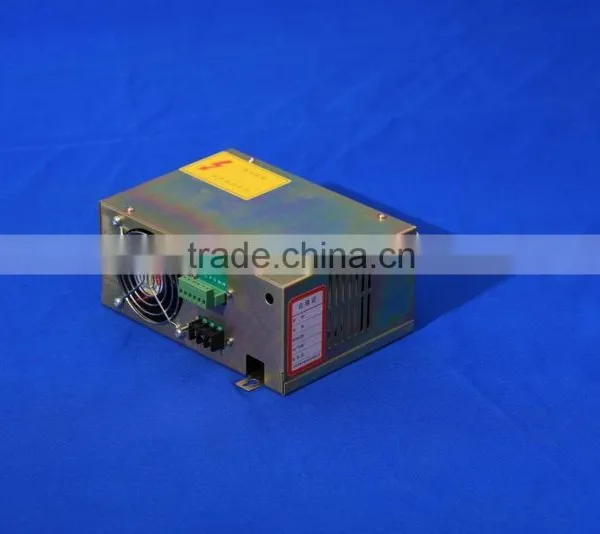

Co2 Glass Laser Power Supply 60W- 80W

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

EFR

Model Number:

PS-N60/80

Beijing EFR Laser S&T Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing/Tianjin/other Chinese port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name EFR

Model Number PS-N60/80

Output Power 101 - 200W

Output Type Single

Input Voltage 220V

Output Voltage DC35KV

Output Frequency 47Hz--440Hz

Output Current DC23mA

Specifications

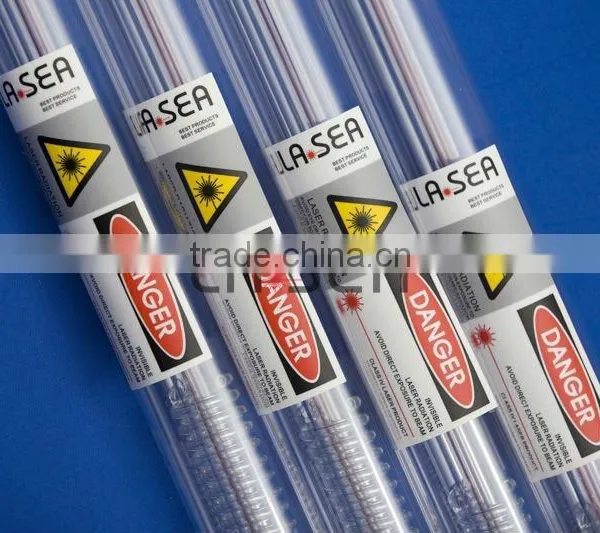

The CO2 glass laser tubes are:
duced by improved process
2.laser output power is steady
3.the facula is even.

Laser Power Supply Model PS-N60/80 Technical Parameter.

Input Voltage	Input Voltage	AC220V or AC110V
	AC Frequency	47-440Hz
	Cold surge current	≤60A(AC220V input)	≤60A(AC220V input)
	Leak current	≤0.7mA(AC220V input)	≤0.7mA(AC220V input)
Output	Max output Voltage	DC 35KV
	Max Output current	DC 23mA
Efficiency	when>92%load down
Time no-failure	>10000 hours
Response speed	≤1ms(the time from output of switch signal to 90%of initial setting current)
Control port	TTL electricity level switch control, valid electricity has high/low level choices
Voltage-resisting	Input-Output ,input-machine hull: 1500V 10mA 60s AC output cathode and machine hull connection
Protection	Can be used an opening way in a short timerequest the outer shell be good to connect the ground avoid arcing between anode and machine hull connection in the machine
Vsage environment	Work temperature(-10 -- 40).Relative humidity≤90%
Cooling Type	The compulsive air cooling
size	L×W×H=210×160×95mm
