Home > Manufacturing & Processing Machinery > Plastic Machinery > Thermoforming Machine > PLC Control Vacuum Forming Machine With Touch Screen

PLC Control Vacuum Forming Machine With Touch Screen

Name: PLC Control Vacuum Forming Machine With Touch Screen
Brand: bocheng
SKU: 110633481
Availability: InStock

PLC Control Vacuum Forming Machine With Touch Screen thumbnail-1

PLC Control Vacuum Forming Machine With Touch Screen thumbnail-2

PLC Control Vacuum Forming Machine With Touch Screen thumbnail-3

PLC Control Vacuum Forming Machine With Touch Screen thumbnail-4

PLC Control Vacuum Forming Machine With Touch Screen photo-1

PLC Control Vacuum Forming Machine With Touch Screen photo-2

PLC Control Vacuum Forming Machine With Touch Screen photo-3

PLC Control Vacuum Forming Machine With Touch Screen photo-4

US$ 24,000 - 28,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vacuum Forming Machine

Plastic Type:

Other, PS/HIPS/PVC/PET/PP

Contact Supplier Request Quote Chat Now

Ruian Bocheng Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vacuum Forming Machine

Plastic Type Other, PS/HIPS/PVC/PET/PP

Product Type Blister

Automatic Yes

Place of Origin Zhejiang, China

Brand Name bocheng

Model Number BC-700 PLC control vacuum forming machine with touch screen

Voltage 380/220v 50HZ

Power(W) 7.5kw

Weight 3000kg

Dimension(L*W*H) 7950*1450*2550mm

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

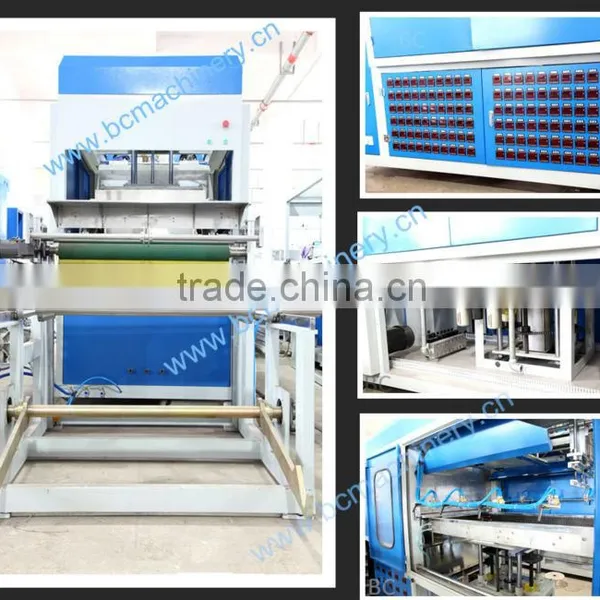

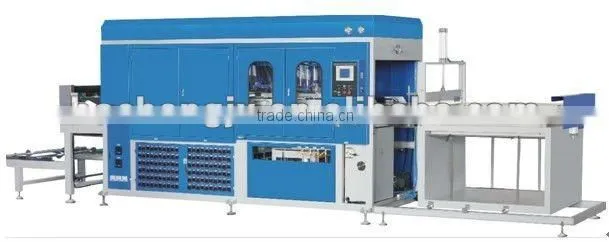

PLC control vacuum forming machine with touch screen

Main technical parameters

model	BC-700/1200A-1	BC-700/1200A-2
forming length(mm)	760-1200mm	760-1200mm
forming width(mm)	500-700mm	500-700mm
foirming height(mm)	< 165mm	< 165mm
production speed(cycle/h)	60-720Cycle/h	60-720Cycle/h
electro-thermal furnace(KW)	24 KW	24 KW(Upper) 18 KW(Lower)
vacuum motor power consumptiom (KW)	3 KW	3 KW
pumping ratem(3/h)	100m3/h	100m3/h
air compressor power consumption (KW)	7.5 KW	7.5 KW
air displacement(m3/min)	0.9m3/min	0.9m3/min
voltage(V/HZ)	380/220V 50HZ	380/220V 50HZ
overall dimentions(mm)	795014502550mm	795014502550mm
weight(Kg)	3000Kg	3500Kg

features

1.PLC control vacuum forming machine designed by the principle of mechanical-electrical-pneumatic intergration .It adopts PLC control system ,panel and digital power control .This full-automatic forming equipment for thermoforming plastic sheet includes heating,forming,cooling,mold ejecting,cuting at one blow.

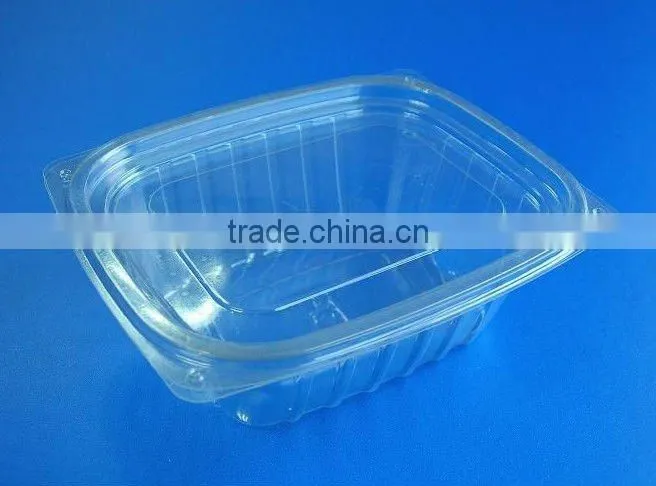

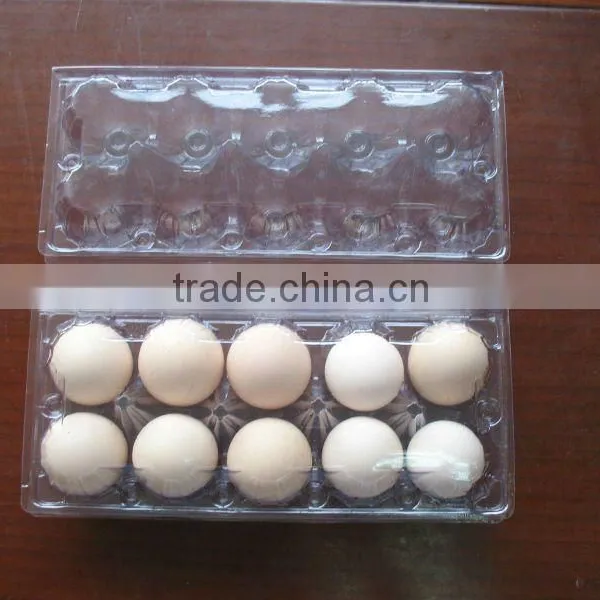

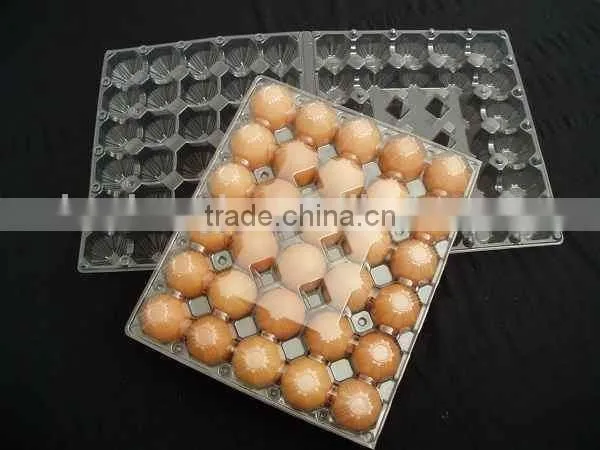

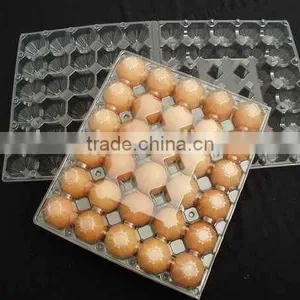

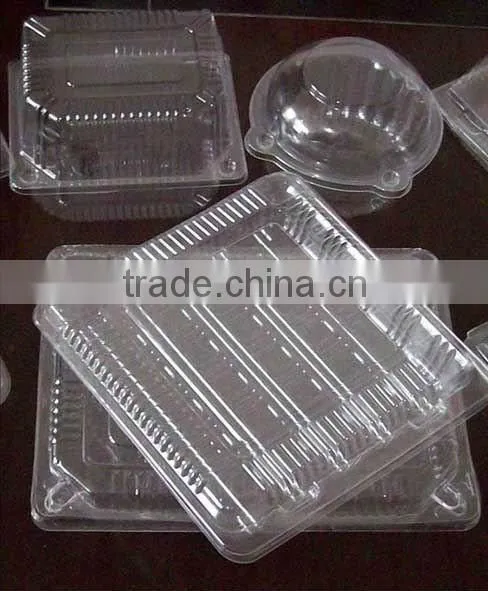

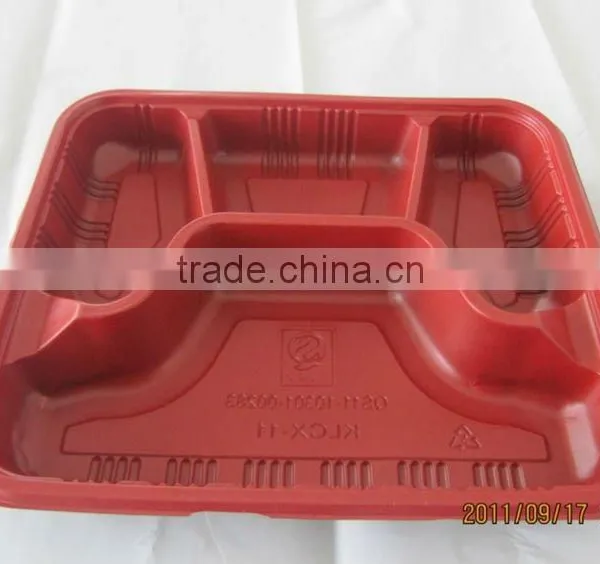

2. Applied to plastic sheet material molding .such as PS HIPS PVC ,PET PP and flocking sheet ,etc.

company

Ruian Bocheng Machinery Co., Ltd. is a manufacturer of Vacuum Forming Machines, Lid Machine, Cup Counting Machines, Cup Counting and Packaging Machines and so on.
With a wide range, good quality, reasonable prices and stylish designs, our products have exported to India ,Arab , Spanish ...
