Cup Cake Containers Thermoforming Machine

Cup Cake Containers Thermoforming Machine photo-1
Cup Cake Containers Thermoforming Machine photo-2
Cup Cake Containers Thermoforming Machine photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, thermoforming machine
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, thermoforming machine
Place of Origin Zhejiang, China
Brand Name bocheng
Model Number BC-700
Voltage 380/220v 50hz
Power(W) 7.5kw
Dimension(L*W*H) 7950*1450*2550
Weight 3000/35000kg
Certification CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas



                         cup cake containers thermoforming machine



     cup cake containers thermoforming machine

Overview:

1. This cup cake containers thermoforming machine designed by the principle of mechanical-electrical-pneumatic intergration .It adopts PLC control system ,panel and digital power control .
2. Applied to plastic sheet material molding .such as PS,HIPS,PVC,PET,PP and flocking sheet ,etc.

3.  offer a wide choice of machine sizes and degrees of automation.

Advantages:
Low electrical power Consumption,Low maintenance cost,High productivity, Quick return on investment,suit for  high volume production.

CE mark.
Applications:

thermofom various kinds of plastic containers.including:

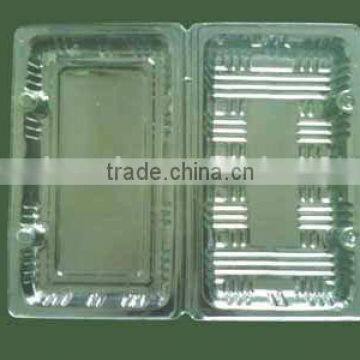

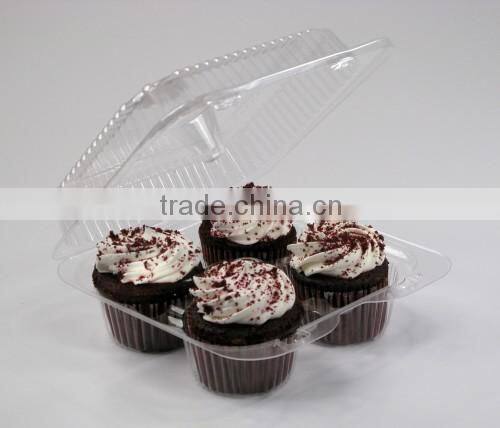

cup cake containers

Trays for fast food items

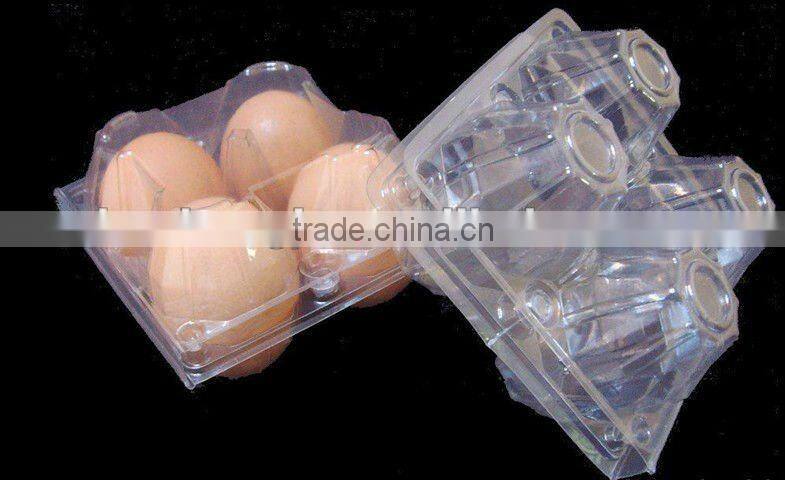

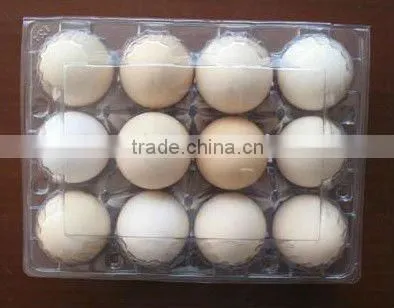

Egg tray
lunch box tray

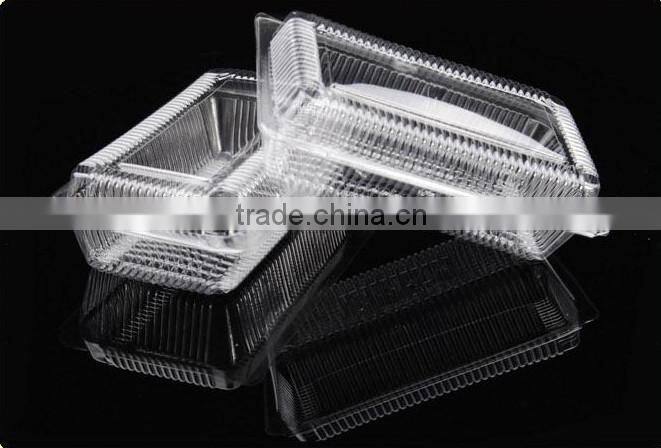

Biscuit/chocolate/fruits and vegetables trays

cup cake containers thermoforming machinecup cake containers thermoforming machinecup cake containers thermoforming machine





parameters:

model

BC-700/1200A-1

BC-700/1200A-2

forming length(mm)

760-1200mm

760-1200mm

forming width(mm)

500-700mm

500-700mm

foirming height(mm)

< 165mm

< 165mm

production speed(cycle/h)

60-720Cycle/h

60-720Cycle/h

electro-thermal   furnace(KW)

24 KW

24 KW(Upper) 18 KW(Lower)

vacuum motor power consumptiom    (KW)

3  KW

3  KW

pumping ratem(3/h)

100m3/h

100m3/h

air compressor power consumption (KW)

7.5 KW

7.5 KW

air displacement(m3/min)

0.9m3/min

0.9m3/min

 voltage(V/HZ)

380/220V 50HZ

380/220V 50HZ

overall dimentions(mm)

7950*1450*2550mm

7950*1450*2550mm

weight(Kg)

3000Kg

3500Kg



Company Information

 Ruian Bocheng Machinery Co., Ltd is a manufacturer of Vacuum Forming Machines, Lid Machine, Cup Counting Machines, Cup Counting and Packaging Machines.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food, medicine, hardware, toy, sanitary fitting manufacturing and have exported to 12 countries.

With advanced design features ensuring reliable, high speed production Bocheng offers a 12 months warranty as well as excellent customer-oriented planned after care.
