Help Center1*2 Fiber Optical Splitter
Related Products
Specifications
1*2 Fiber optical splitter1.Wavelength:1310nm / 1490nm / 1550nm
2.Connector:SC/FC/LC/ST
3.Low Insertion Loss

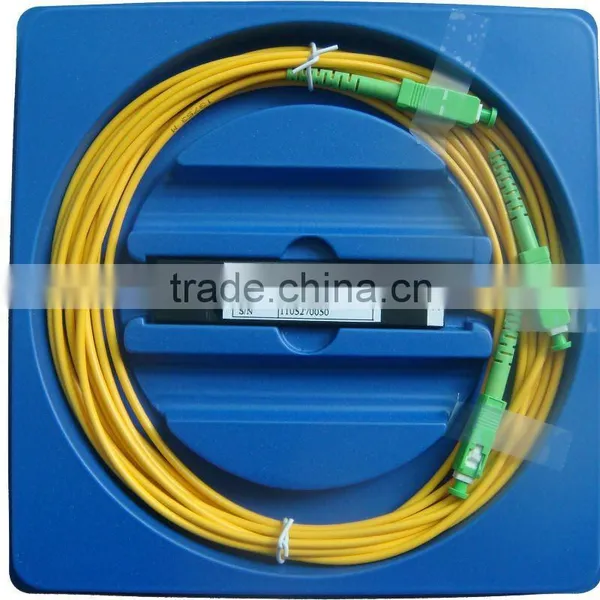

1*2 Fiber optical splitter
Features
Low Insertion Loss
Low Polarization Sensitivity
Broad Bandwidth
Excellent Environmental Reliability
Applications
Fiber Optic Communication System
LAN
CATV
Fiber Optic Sensor
Measuring instruments
Performance Parameter
Grade |
P |
A |
|
Operating Wavelength (nm) |
1310,1490 & 1550 |
||
Bandwidth (nm) |
1310±40,1490±40 & 1550±40 |
||
Excess Loss (dB) |
≤ 0.07 |
≤0.1 |
|
Insertion Loss (dB) |
50/50 |
≤3.6 |
≤3.8 |
40/60 |
≤4.7/2.7 |
≤4.9/2.9 |
|
30/70 |
≤6.0/1.9 |
≤6.3/2.1 |
|
20/80 |
≤7.9/1.2 |
≤8.4/1.4 |
|
10/90 |
≤11.3/0.65 |
≤12.0/0.8 |
|
5/95 |
≤14.6/0.4 |
≤15.5/0.5 |
|
3/97 |
≤17.5/0.35 |
≤17.8/0.45 |
|
2/98 |
≤18.8/0.3 |
≤19.5/0.4 |
|
1/99 |
≤22.5/0.25 |
≤23.5/0.35 |
|
Polarization Sensitive Loss (dB) |
≤0.15 |
≤0.2 |
|
Directivity (dB) |
≥55 |
||
Operating Temperature (°C) |
-20~+70 |
||
Ordering information
Channel |
Working wavelength |
Splitting ratio |
Package type |
Pigtail |
Fiber length |
Connector |
1X2 |
1310 |
50/50 |
n/a |
Bare Fiber |
0.5M |
NONE |
1X3 |
1490 |
45/55 |
3X54 |
0.9 CPT |
1.0M |
SC/UPC |
1X4 |
1550 |
40/60 |
4X65 |
2.0 Loose tube |
1.5M |
SC/APC |
2X2 |
1310/1490 |
35/65 |
90*20*10 Black box |
3.0 Loose tube |
2.0M |
FC/UPC |
3X3 |
1310/1550 |
30/70 |
100*80*10 Black box |
|
2.5M |
FC/APC |
4X4 |
1490/1550 |
25/75 |
120*80*18 Black box |
3.0M |
LC/UPC |
|
1X8 |
1310/1490/1550 |
20/80 |
140*115*18 Black box |
1.2M |
LC/APC |
|
1X16 |
Customization |
15/85 |
19inch frame |
1.7M |
Customization |
|
1X32 |
|
10/90 |
Customization |
2.25M |
|
|
|
5/95 |
|
Customization |
|||
Customization |
|
