Help Center1*3 Fiber Optic Splitter
Related Products
Specifications

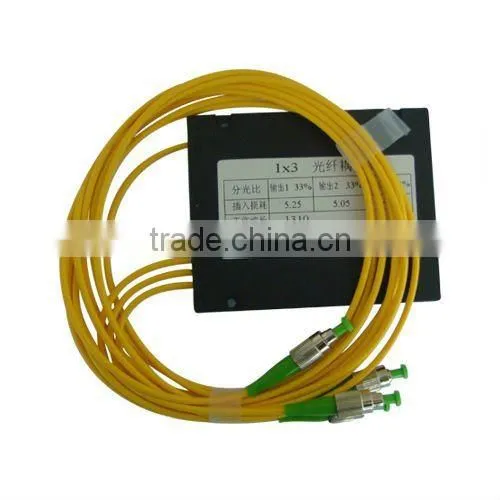

1*3 Fiber optic splitter1.Mini Size
2.Low Excess Loss
3.Low PDL
4.High Stability and Reliability
1*3 Fiber optic splitter
Range of Applications
Optical Communication Systems
Fiber Sensors
Testing Instruments
Features
Mini Size
Low Excess Loss
Low PDL
High Stability and Reliability
1×3 monolithic couplers have the compact package size, low insertion loss, and high reliability performance. These couplers were designed for optical modules and the fiber sensors, fiber testing instruments.
Performance Parameter
Type |
|
|
|||
Operating Wavelength (nm) |
1310 or 1550 |
1310 and 1550 |
|||
Operating Bandwidth (nm) |
±40 |
±40 |
|||
Grade |
P |
A |
P |
A |
|
Typical Excess Loss (dB) |
0.1 |
0.15 |
0.1 |
0.15 |
|
Insertion Loss (dB) |
≤5.6 |
≤6.0 |
≤5.8 |
≤6.2 |
|
PDL (dB) |
≤0.2 |
≤0.25 |
≤0.25 |
≤0.3 |
|
Uniformity (dB) |
≤1.0 |
≤1.4 |
≤1.2 |
≤1.5 |
|
Directivity (dB) |
≥55 |
||||
Operating temperature (°C) |
-40~+85 |
||||
Dimensions |
250µm bare fiber |
3.0mm×56mm |
|||
900µm loose tube |
4.0mm×60mm |
||||
Ordering information
Channel |
Working wavelength |
Splitting ratio |
Package type |
Pigtail |
Fiber length |
Connector |
1X2 |
1310 |
50/50 |
n/a |
Bare Fiber |
0.5M |
NONE |
1X3 |
1490 |
45/55 |
3X54 |
0.9 CPT |
1.0M |
SC/UPC |
1X4 |
1550 |
40/60 |
4X65 |
2.0 Loose tube |
1.5M |
SC/APC |
2X2 |
1310/1490 |
35/65 |
90*20*10 Black box |
3.0 Loose tube |
2.0M |
FC/UPC |
3X3 |
1310/1550 |
30/70 |
100*80*10 Black box |
|
2.5M |
FC/APC |
4X4 |
1490/1550 |
25/75 |
120*80*18 Black box |
3.0M |
LC/UPC |
|
1X8 |
1310/1490/1550 |
20/80 |
140*115*18 Black box |
1.2M |
LC/APC |
|
1X16 |
Customization |
15/85 |
19inch frame |
1.7M |
Customization |
|
1X32 |
|
10/90 |
Customization |
2.25M |
|
|
|
5/95 |
|
Customization |
|||
Customization |
|
