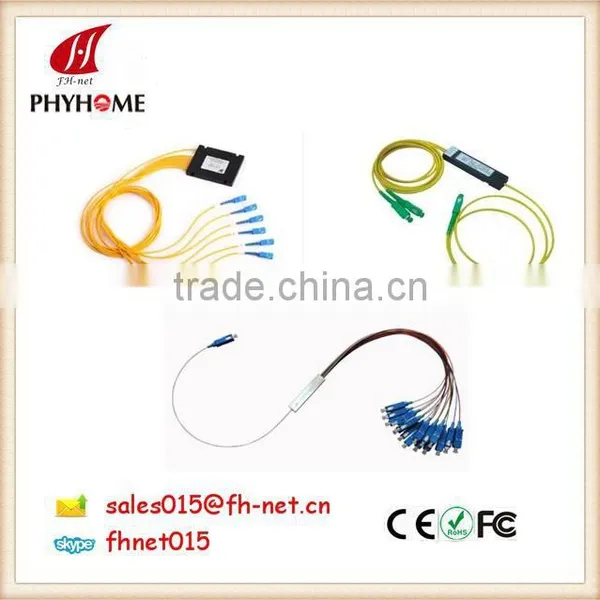

Help Center1*2, 1*4,1*8,1*32,1*64 PLC Splitter SC/APC for FTTH
Related Products
-
SC/APC Patch Cords/pigtailsUS$ 0.50 - 0.50MOQ: 100 Pieces -
High Quality SC/APC, FC,LC Fiber Optical Patch CordsUS$ 0.50 - 0.50MOQ: 100 Pieces
-
High Quality SC/APC, FC,LC Fiber Optical Patch CordsUS$ 0.50 - 0.50MOQ: 100 Pieces
-
SC Duplex Fiber Patch CordNegotiableMOQ: 50 Pieces
-
1*2 Fiber Splitter 1*2 PLC SplitterNegotiableMOQ: 50 Pieces
Specifications
1×N PLC Splitter
(Measured at room temperature and excludes connector loss)
Type |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
|
|
Fiber Type |
9/125 um SMF-28e or custom on request |
||||||
Operating Wavelength (nm) |
1260~1650 |
||||||
Insertion Loss (dB) |
Typical |
3.6 |
6.8 |
10.0 |
13.0 |
16.0 |
|
(P/S) Max |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.8 |
|
|
Loss Uniformity (dB) |
Max |
0.6 |
0.6 |
0.8 |
1.2 |
1.5 |
|
Polarization Dependent Loss (dB) |
Max |
0.15 |
0.15 |
0.25 |
0.3 |
0.3 |
|
Directivity (dB) |
Min |
55 |
|||||
Return Loss (dB) |
Min |
UPC:50 APC:55 |
|||||
Operating Temperature(℃) |
-40~85 |
||||||
Storage Temperature(℃) |
-40~85 |
||||||
2×N PLC Splitter
(Measured at room temperature and excludes connector loss)
Type |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
Fiber Type |
9/125 um SMF-28e or custom on request |
||||||
Operating Wavelength (nm) |
1260~1650 |
||||||
Insertion Loss (dB) |
Typical |
4.0 |
7.0 |
10.5 |
13.5 |
16.5 |
20.5 |
(P/S) Max |
4.1/4.3 |
7.4/7.6 |
10.8/11.0 |
14.3/14.5 |
17.3/17.5 |
20.7/21.5 |
|
Loss Uniformity (dB) |
Max |
0.8 |
0.8 |
1.5 |
2.0 |
2.5 |
2.5 |
Polarization Dependent Loss (dB) |
Max |
0.2 |
0.2 |
0.3 |
0.4 |
0.4 |
0.4 |
Directivity (dB) |
Min |
55 |
|||||
Return Loss (dB) |
Min |
UPC:50 APC:55 |
|||||
Operating Temperature(℃) |
-40~85 |
||||||
Storage Temperature(℃) |
-40~85 |
||||||
Package Dimensions
Port |
1x2 |
2x2 |
1x4 |
2x4 |
1x8 |
2x8 |
1x16 |
2x16 |
1x32 |
2x32 |
1x64 |
2x64 |
|
LxWxH (mm) |
100x80x10 |
120x80x18 |
140x114x18 |
|||||||||
Reasonable shipping solutions, offer economical, convenient and safely service for you
Established more than 10 years ago, FH-Net is an award-winning manufacturer of Triple-play Products, Fiber Optic Communications, Industrial Switch, Security Surveillance for Service Providers, Power Utilities, Telecom Networks and the Government Sector. Its leading-edge technology, strict adherence to quality standards and best service operations, together with our corporate culture that encourages innovation and values long-term cooperation to its customers, channels, suppliers, and employees, combine to make FH-Net an ideal partner.
Competitive selling prices
Warranty: 1-3 years warranty
Excellent after-sale service
Samples are available for testing
Reply your inquiry within 24 hours
You can get our support online at 24*7
Big capability of manufacture and fast delivery time
With experienced technical team supporting
Customized label and package, ODM and OEM service offered
100% new materials for production and 100% reliable quality
