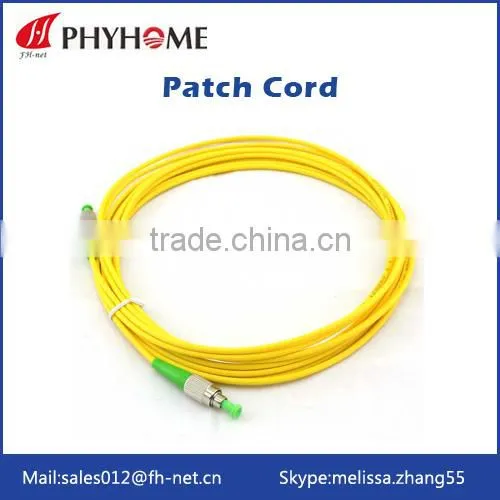

High Quality SC/APC, FC,LC Fiber Optical Patch Cords
Description
Patch cord is a product be used to interconnect Transmission equipment to the Fiber optic patch panel.The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installing.
Features
Lower Insertion Loss
High Return Loss
Excellent Repeatability
Environmentally Stable
Cable diameter:Φ0.9/Φ2/Φ3
Application
Telecom and Datacom
2.Storage Network
CATV & Multimedia Application
Systems Integration for Long Haul, Metro and Access Network
Fiber to the Indoor (FTTX) Test
Local Area Network(LAN)
Specifications
|
Unit |
Single mode |
Multimode |
||
PC |
UPC |
APC |
PC |
||
Connector |
|
≥45 |
≥50 |
≥60 |
≥35 |
Return loss |
dB |
0.2(Typical), ≤0.3(Max) |
|||
Insertion loss |
dB |
≤0.1 |
|||
Repeatability |
dB |
≥1000(metal); ≥500(nonmetal) |
|||
Durability |
Matings |
40 |
|||
Operating temperature |
°C |
40~+80(metal); -25~+70(nonmetal) |
|||
Tensile strength |
N |
≥90(3.0mm); ≥70(2.0mm);for 0.9mm, don't require this specification. |
|||
Packing information
Model |
N.W. (kgs) |
G.W. (kgs) |
Standalone Size(cm) |
Pcs/ Carton |
CartonDimension(cm) |
FHC96XX |
16 |
17 |
/ |
500 |
55*38*26cm |
Ordering information
Name |
Model |
Details |
Optic patch cord |
FHM-96XX |
SC,FC,LC,ST,E200,Ect connector fiber optic patch cord |
