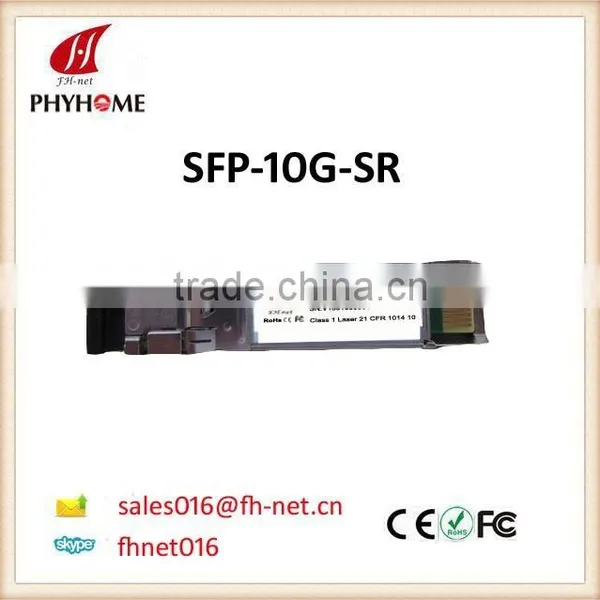

SFP-10G-SR compatible with Huawei router with sfp port
PRODUCT FEATURES
l 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR
l 850nm VCSEL transmitter, PIN photo-detector
l Duplex LC connector
l Below 1W power consumption
l Metal enclosure, for lower EMI
l Electrical interface compliant to SFF-8431
l Specifications for 10 Gigabit “SFP+”
l 2-wire interface for management
l Specifications compliant with SFF 8472
l Single 3.3V power supply
l Case operating temperature range:-5°C to 70°C
APPLICATIONS
l 10GBASE-SR/SW 10G Ethernet
Specification
Absolute Maximum Ratings
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
Maximum Supply Voltage |
Vcc |
-0.5 |
|
4.7 |
V |
|
Storage Temperature |
TS |
-40 |
|
85 |
°C |
|
Case Operating Temperature |
Tcase |
-5 |
|
70 |
°C |
|
Electrical Characteristics (Tcase = -5 to 70℃, VCC = 3.14 to 3.46Volts)
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
Supply Voltage |
Vcc |
3.14 |
3.3 |
3.46 |
V |
|
Supply Current |
Icc |
|
|
250 |
mA |
|
Transmitter |
|
|
|
|
|
|
Input differential impedance |
Rin |
|
100 |
|
Ω |
1 |
Single ended data input swing |
Vin,pp |
180 |
|
700 |
mV |
|
Transmit Disable Voltage |
VD |
Vcc–1.3 |
|
Vcc |
V |
|
Transmit Enable Voltage |
VEN |
Vee |
|
Vee+ 0.8 |
V |
2 |
Transmit Disable Assert Time |
|
|
|
10 |
us |
|
Receiver |
|
|
|
|
|
|
Differential data output swing |
Vout,pp |
300 |
|
850 |
mV |
3 |
Data output rise time |
tr |
28 |
|
|
ps |
4 |
Data output fall time |
tf |
28 |
|
|
ps |
4 |
LOS Fault |
VLOS fault |
Vcc–1.3 |
|
VccHOST |
V |
5 |
LOS Normal |
VLOS norm |
Vee |
|
Vee+0.8 |
V |
5 |
Power Supply Rejection |
PSR |
100 |
|
|
mVpp |
6 |
Outline Dimensions
