Description

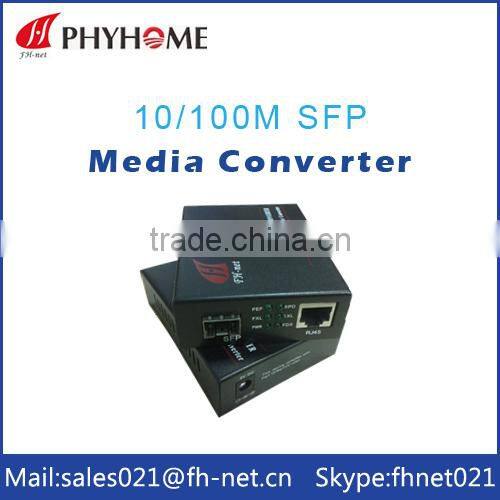

SFP media converter is designed to converter 100BASE-SX/LX/LH fiber to 100Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, It is designed for use with multi-mode/single-mode fiber cable utilizing the LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode. Other features of this module include the ability to be used as a standalone device (no chassis required) or with FH-NET´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. They will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber .
Product features
• Works at 100Mbps in Full-Duplex mode for both TX port and FX port
• Supports auto MDI/MDIX for TX port
• Provides switch configuration of Force /Auto transfer mode for FX port
• FX port support hot-swappable
• Extends fiber distance up to 0.55km for multi-mode fiber and 10-120km for single-mode fiber
• Easy-to-view LED indicators provide status to monitor network activity easily
• External power supply
Application chart
Specification
Standards and Protocols |
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
Basic Function |
Full Duplex Flow Control (IEEE 802.3x) |
Ports |
1 155M SFP port |
Wave Length |
Depends on the used SFP module |
Network Media 1000BASE-FX |
Multi-mode/Single-mode SFP module |
Network Media 1000BASE-T |
UTP category 5, 5e, 6 cable (maxium 100m) |
LED Indicators |
PWR, LINK, RX |
Dimensions (W*D*H) |
(93*71.0*25 mm) |
Power Supply |
External Power Adapter |
Safety & Emission |
FCC, CE, RoHS |
Environment |
Operating Temperature: 0~40 (32~104) |
For more product details, you can also find me on SKYPE: fhnet021
Let's make a reasonable price for you.
