Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 101001000M Dual Fiber Media Converter

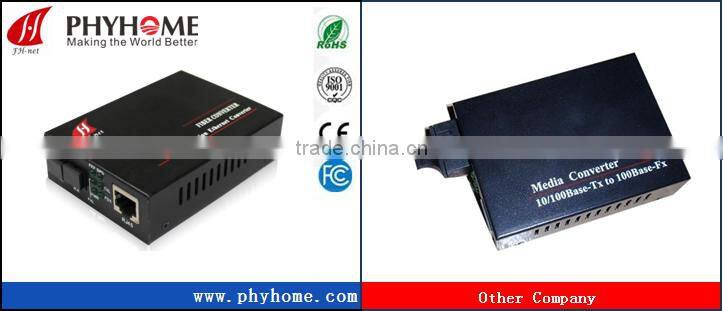

101001000M Dual Fiber Media Converter

Name: 101001000M Dual Fiber Media Converter
Brand: phyhome
SKU: 110625517
Availability: InStock

101001000M Dual Fiber Media Converter thumbnail-1

101001000M Dual Fiber Media Converter photo-1

US$ 10.00 - 50.00 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

phyhome

Model Number:

FHC-1110-8M02A10

Contact Supplier Request Quote Chat Now

Shenzhen FH-Net Optoelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name phyhome

Model Number FHC-1110-8M02A10

10/100/1000Mbps Multi-mode Dual Fiber Media Converter

Description

10/100/1000M Multimode dual fiber media converter is designed to convert 1000BASE-FX fiber to 10/100/1000Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100/1000Base-TX and 1000Base-FX standards, It is designed for use with Multimode fiber cable utilizing the SC-Type connector. They support (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a standalone device (no chassis required) or with FH-NET´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. They will transmit at extended fiber optic distances utilizing single-mode fiber up to 0.55 kilometers.

Features

1.Auto negotiation of 10/100/1000Mbps and auto MDI/MDIX for TX port

2.Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port

3.Link Fault Pass through and Far End Fault minimize the loss caused by link failure timely

4.Extend fiber distance up to 0.55km

5.Easy-to-view LED indicators provide status to monitor network activity easily

6.External power supply

Specifications

Parameter	Specifications
Optical Port
Port number	1
Wavelength	850nm
Distance	0 .5Km
Network Media 1000BASE-FX	Multi-mode Fiber
Connector	FC/PC, SC/PC, ST/PC
Ethernet Port
Port number	1
Speed	10/100M/1000Mbps line speed
Network Media 10BASE-T	UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T	UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Power Supply
Input voltage	When -48V, -40V ~ -60V (DC) is allowed When ~220V, 100V ~ ~240V (AC) is allowed
LED Indicators	PWR, FDX/Col, Link/Act, SPD
Overall power	5W
Dimensions (WDH)	937125 mm
Operating Environment
Temperature	0℃-55℃ (113S supporting -40℃-75℃)
Humidity	5%-95%, no condense
