10/100M Single-mode dual fiber media converter is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, this designed for use with single-mode fiber cable utilizing the SC-Type connector. They supports (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

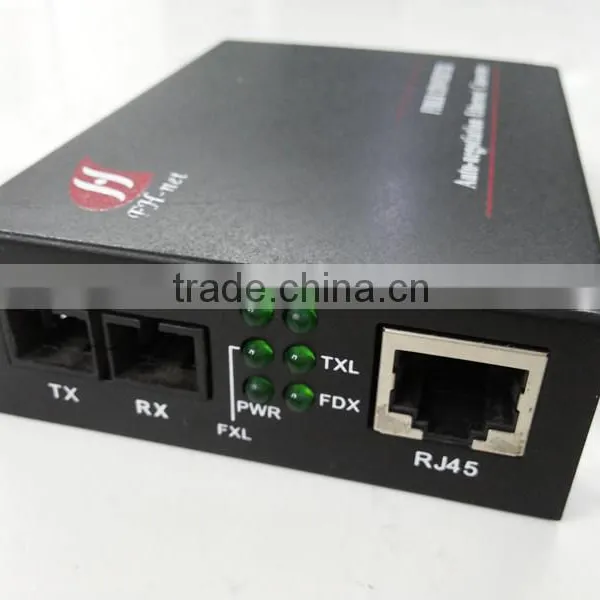

Other features of this module include the ability to be used as a standalone device (no chassis required) or with FH-NET´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. They will transmit at extended fiber optic distances utilizing single-mode fiber up to 100 kilometers.

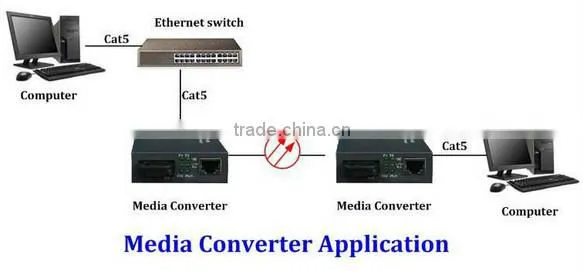

Application
Features
u Auto negotiation of 10/100Mbps and auto MDI/MDIX for TX port
u Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port
u Link Fault Pass through and Far End Fault minimize the loss caused by link failure timely
u Extend fiber distance up to 100km
u Easy-to-view LED indicators provide status to monitor network activity easily
u External power supply
Specifications
Parameter |
Specifications |
||
Optical Port | |||
Port number |
1 |
Bit rate |
150Mb/s+/-50ppm |
Wavelength |
1310nm |
Distance |
10 - 100Km |
Connector |
SC |
||
Ethernet Port | |||
Port number |
1 optional |
Speed |
10/100Mbps line speed |
Duplex |
Half/Full auto-negotiate |
Frame Size |
64 - 1536 bytes |
MAC address |
1k |
MAC aging time |
5mins |
Power Supply | |||
Input voltage |
When -5V(DC) is allowed |
||
Overall power |
5W |
||
Operating Environment | |||
Temperature |
0℃-55℃ |
||
Humidity |
5%-95%, no condense |
||
Ordering information
Model |
Details |
FHC-0110-3S10B10 |
10/100M standalone media converter, SM,SF, SC,1310nm, 10KM |
FHC-0110-3S20B10 |
10/100M standalone media converter, SM, SF,SC, 1310nm, 20KM |
FHC-0110-3S40B10 |
10/100M standalone media converter, SM, SF,SC,1310nm, 40KM |
FHC-0110-4S80B10 |
10/100M standalone media converter, SM, SF,SC,1490nm, 80KM |
FHC-0110-4S100B10 |
10/100M standalone media converter, SM, SF,SC,1490nm, 100KM |
