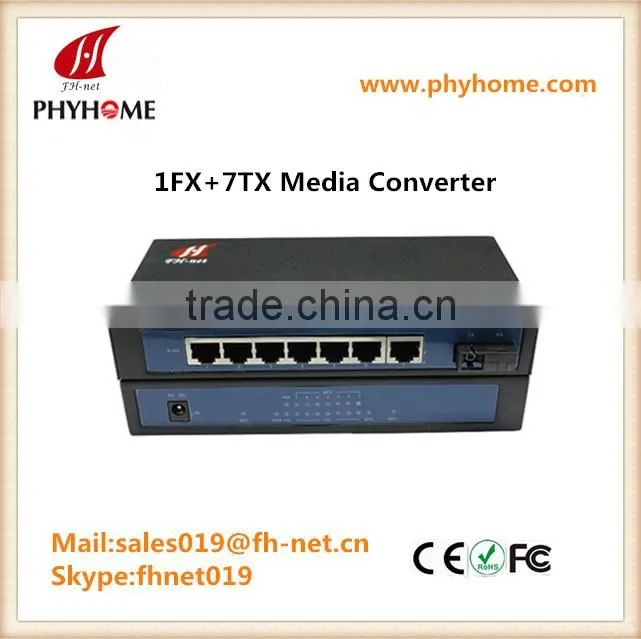

Web Management 1FX+7TX Media Converter 20 Km

Name: Web Management 1FX+7TX Media Converter 20 Km
Brand: FH-Net
SKU: 110625351

Web Management 1FX+7TX Media Converter 20 Km thumbnail-1

Web Management 1FX+7TX Media Converter 20 Km photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

FH-Net

Model Number:

FHC5007F21

Contact Supplier Request Quote Chat Now

Shenzhen FH-Net Optoelectronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name FH-Net

Model Number FHC5007F21

Description

The FHC5007F21 Switch fully complies with IEEE802.3/IEEE802.3u Ethernet standard, it provides 7 10/100M ports with auto-MDI/MDIX and one 100M fiber ports which can extend the network radii. The switch is equipped with fast store & forward working mode. It also provides Web-based management functions including the system, port network, VLAN, Qos and security etc. Its intelligent management makes it is suitable for small, middle and large networks.

Features

Complies with :IEEE802.3 10BASE-T and IEEE802.3u 100BASE-TX and 100Base-FX standard

Supports Seven 10/100M auto-detect Half/Full duplex switch ports and One 100M fiber ports.

Quick and easy setup with Web-based management

Supports Store&Forward architecture and performs forwarding and filtering at non-blocking full wire speed.

Port-based 802.1q VLAN supported

Supports Port Security, Bradcast Storm control, Bandwidth Control (as FULL,128Kb, 256Kb, 512Kb,1M, 2M, 4M, 8M)

Spanning tree protocol supported

Supports Smart Cable Analyze

QoS supported

Reset switch to factory default

Supports Direct Forwarding function

Supports packet length up to 1536/1552 bytes.

External power adaptor, low consumption

POE function for optional

Specifications

Standard	802.3 10B-T, 802.3u 100b-Tx&100b-Fx, 802.3x, 802.1.p
Wavelength	TX1310nm/RX1310nm or BIDI TX1310nm/RX1550nm; TX1550nm/RX1310nm
Fiber cable	8.3/125, 8.7/125, 9/125 or 10/125single-mode
Connector	RJ-45 Jack and Fiber optic connectors: SC connector
Cable Model and Length	Twisted pair Cat.5 UTP Cable: 100m
Management	Web Management (IE)
Switching mechanism	Store & Forward
Forward&Filter Rate	10b-T( 14,880pps-64bytes), 100b-Tx/Fx ( 148,800pps-64Bytes)
MAC Address and self-learning	1K
LED Indicators	POWER, LINK/ACT,SPEED
Power supply	1A +5V
Environment	Operating temperature:32 to 122F(0 to 60℃) Storage temperature : -4 to 140F (-20 to 70℃) Relative humidity: 5% to 90%
Size	182(L)95.4(W)29(H)mm
Emission	FCC CE

Packing information

Model	N.W. (kgs)	G.W. (kgs)	Standalone Size(cm)	Pcs/ Carton	CartonDimension(cm)
FHC5007F5S21	13.3	19.5	23(L)×8.5(W)×17cm(H)	25	470360435cm
FHC5007F3S21	13.3	19.5	23(L)×8.5(W)×17cm(H)	25	470360435cm
FHC5007FM21	13.3	19.5	23(L)×8.5(W)×17cm(H)	25	470360435cm
FHC5007FSD21	13.3	19.5	23(L)×8.5(W)×17cm(H))	25	470360435cm

Ordering information

Model	Details
FHC5007F5S21	1-Port 100M FX + 7-Port 10/100M TX Web Smart Switch with BIDI Single mode 20km SC Connector.(Single core / WDM) for fiber port1 (FX1) is TX1550/RX1310
FHC5007F3S21	1-Port 100M FX + 7-Port 10/100M TX Web Smart Switch with BIDI Single mode 2 0km SC Connector.(Single core / WDM) for fiber port1 (FX1) is TX1310/RX1550,
FHC5007FM21	1-Port 100M FX + 7-Port 10/100M TX Web Smart Switch with Multimode 2km SC Connector.(Dual core)
