HM120ML Horse Epoxy resin adhesive for seal crack

Specifications

1. Mix rate: 2:1
2. Use in -5--60 degree
3. Operable time: 45--60 minutes at 25 degree
4. BV and ISO9001 Certificate.

HM-180C3P  Horse Epoxy resin adhesive for glass fiber fabric adhesion  is epoxy fiber adhesive of high performance.

It can be used for the effective penetration bonding between many substrate materials and many fiber fabrics.

Substrates:concrete, steel material, ceramic, stone, wood component, etc.

Fiber products: carbon fiber, glass fiber, basalt fiber, aramid fiber, etc.

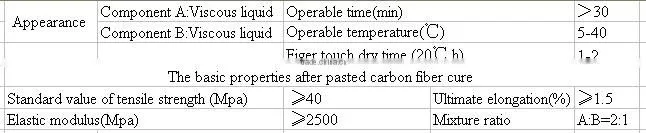

1.Product Description

A). Working Performance



B). Colloidal Performance

Compressive Strength	≥ 70.0 MPa
Tensile Strength	≥ 40.0 MPa
Bending Strength	≥ 50.0 MPa
Elastic Strength	≥ 2500 MPa



C). Bonding Capacity

Steel–steel Tensile Shear Strength	≥ 14 MPa
Pulling Bonding Strength along with Concrete	≥ 2.5 MPa





2.Product Characteristics

1) Good compatibility with carbon fiber.

2) Aging, water resistance and chemical corrosion resistance, excellent performance.

3) Low viscosity, can completely impregnated in fiber products.

4) The adhesive layer has excellent physical mechanical properties after curing, such as strong toughness and elasticity.

3.Usage Amount

The usage amount is 0.7-0.8 kg for a square meter of fiber cloth.



4. Package

30 kilograms per set. A net: 20 kilograms (Nor.) B net: 10 kilograms (Nor.)
Other packing weight is optional according to customer's requests.

5. Horse Epoxy resin adhesive for glass fiber fabric adhesion   ( Impregnated adhesive ) :A component



6. Horse Epoxy resin adhesive for glass fiber fabric adhesion    ( Impregnated adhesive ) :B component



7.The  application of Horse Epoxy resin adhesive for glass fiber fabric adhesion     .
