Specifications
1. Mix rate: 2:12. Use in -5-60 degree
3. Curing time: 3-7D at 20 degree
4. BV and ISO9001
5. Epoxy glue for Ceramic
HM-180C3P Horse Epoxy resin adhesive for Carbon fabric adhesion is epoxy fiber adhesive of high performance.
It can be used for the effective penetration bonding between many substrate materials and many fiber fabrics.
Substrates:concrete, steel material, ceramic, stone, wood component, etc.
Fiber products: carbon fiber, glass fiber, basalt fiber, aramid fiber, etc.

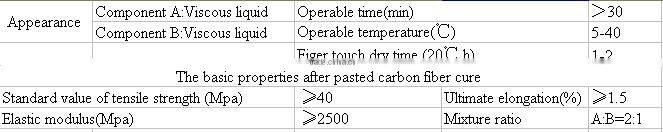

1.Product Description
A). Working Performance
B). Colloidal Performance
Compressive Strength |
≥ 70.0 MPa |
Tensile Strength |
≥ 40.0 MPa |
Bending Strength |
≥ 50.0 MPa |
Elastic Strength |
≥ 2500 MPa |
C). Bonding Capacity
Steel–steel Tensile Shear Strength |
≥ 14 MPa |
Pulling Bonding Strength along with Concrete |
≥ 2.5 MPa |
2.Product Characteristics
1) Good compatibility with carbon fiber.
2) Aging, water resistance and chemical corrosion resistance, excellent performance.
3) Low viscosity, can completely impregnated in fiber products.
4) The adhesive layer has excellent physical mechanical properties after curing, such as strong toughness and elasticity.
3.Usage Amount
The usage amount is 0.7-0.8 kg for a square meter of fiber cloth.

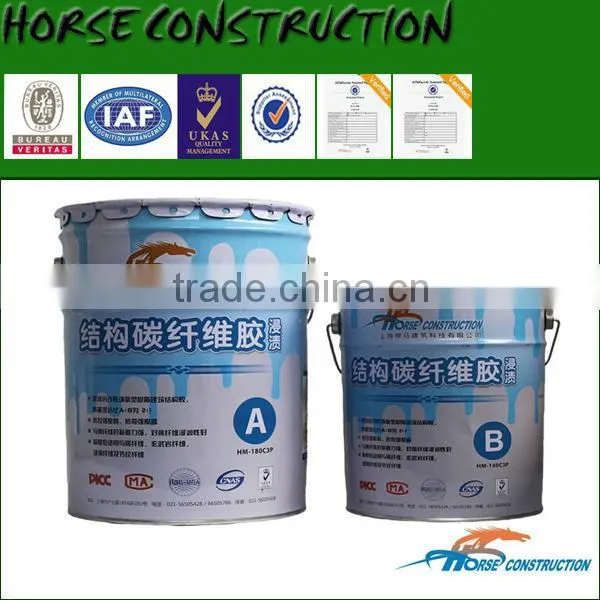

4. Package
30 kilograms per set. A net: 20 kilograms (Nor.) B net: 10 kilograms (Nor.)
Other packing weight is optional according to customer's requests.

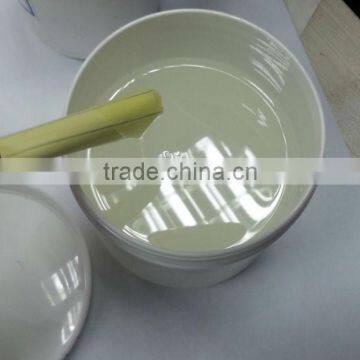

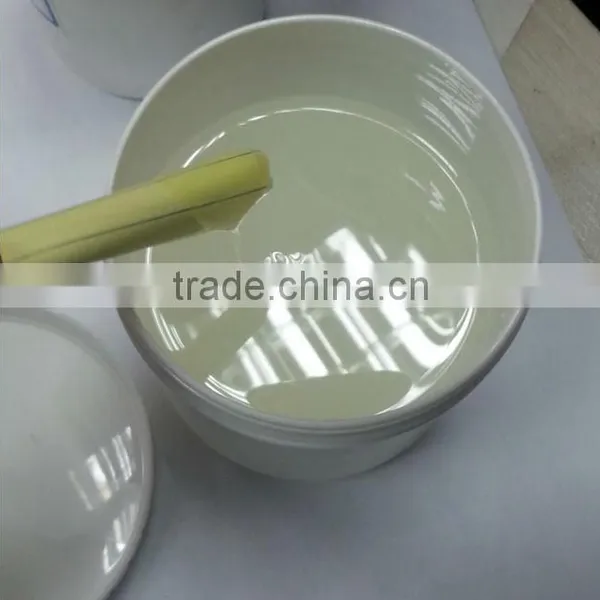

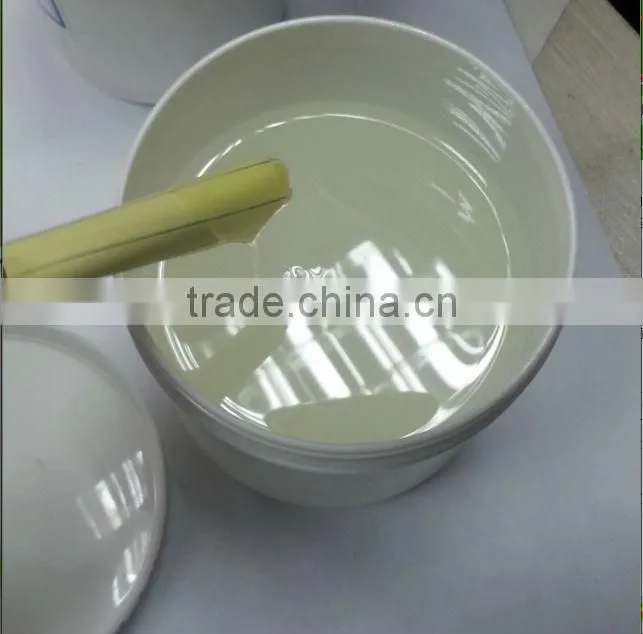

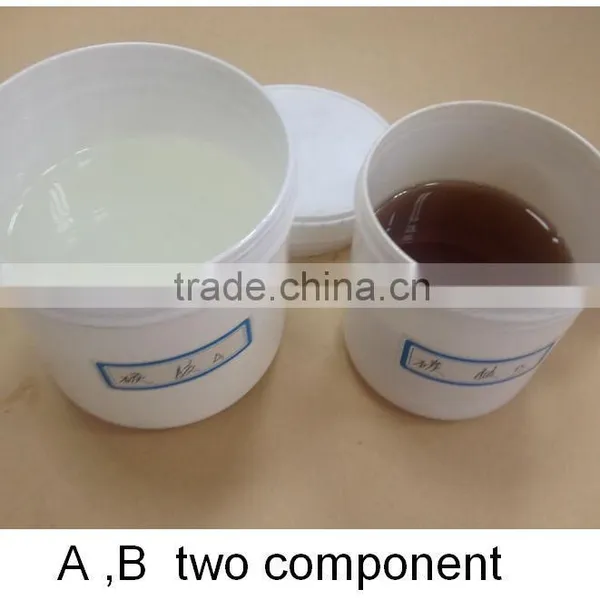

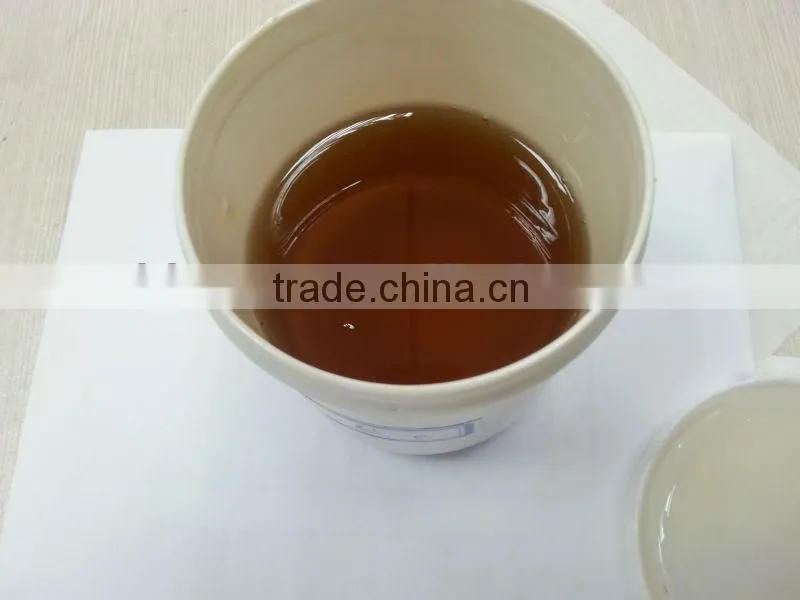

5. Horse Epoxy resin adhesive for Carbon fabric adhesion ( Impregnated adhesive ) :A component

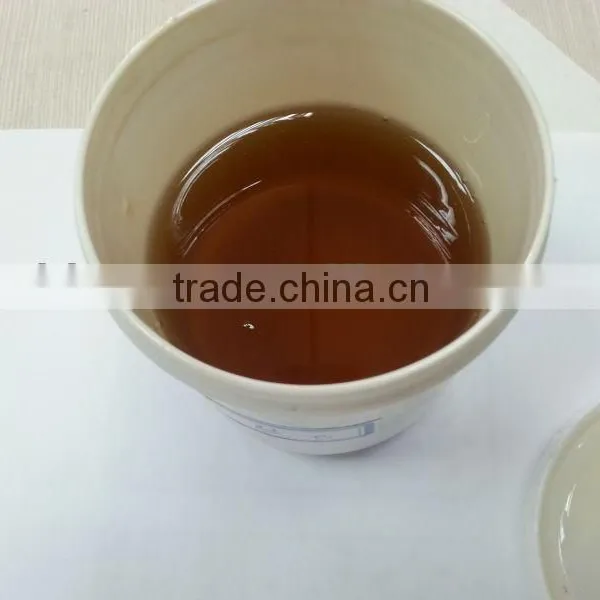

6. Horse Epoxy resin adhesive for Carbon fabric adhesion ( Impregnated adhesive ) :B component

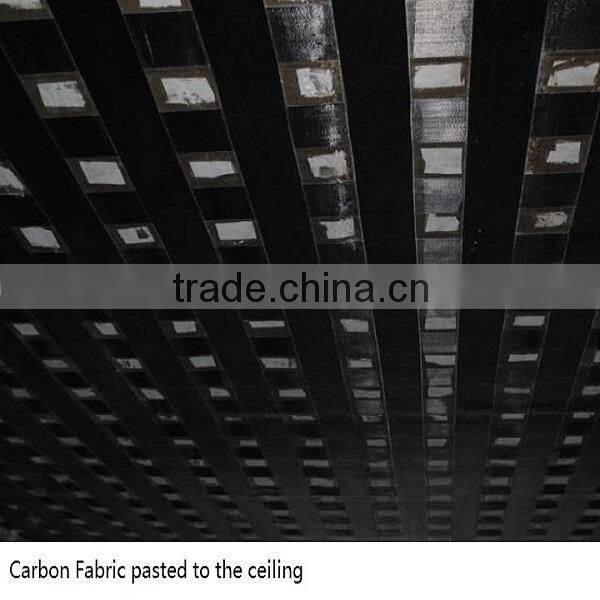

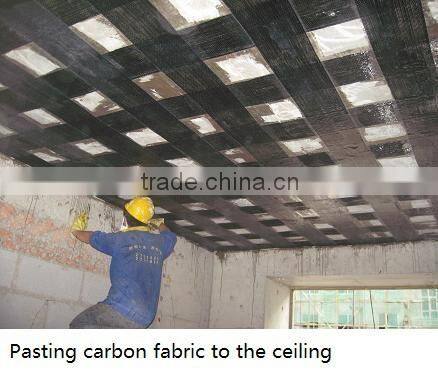

7.The application of Horse Epoxy resin adhesive for Carbon fabric adhesion .
