Specifications
LED Flood light sensor led flood1. BRIDGELUX LED chip, 90-110LM/W
2. Good cooling
3. >30,000H, 3 years warranty
4. CE&ROHS

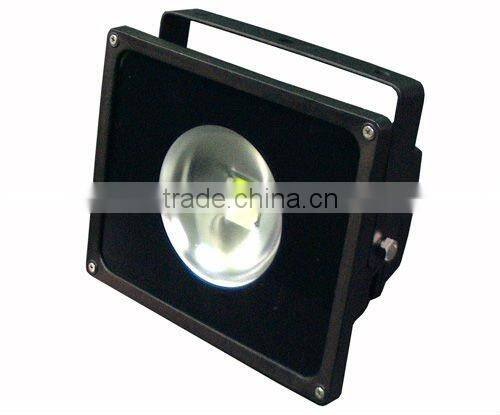

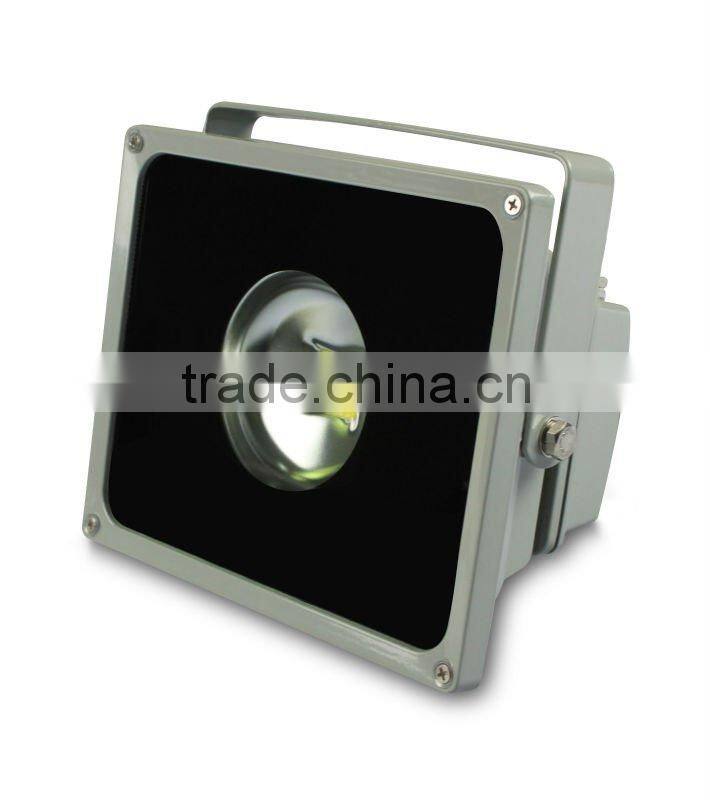

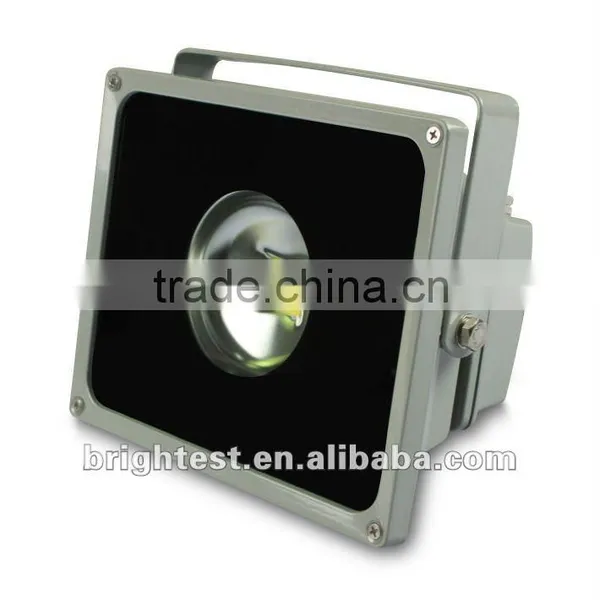

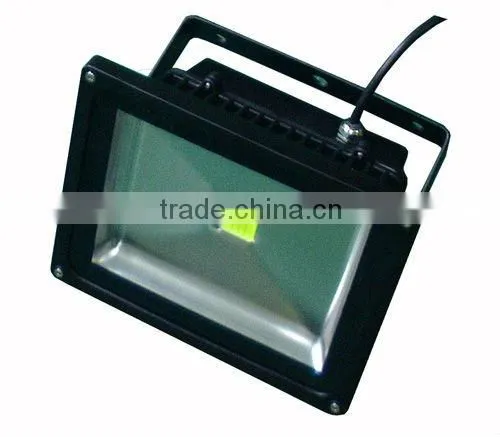

LED Flood Light
I. Product Description
Our company’s LED Flood Light (also called LED Wall Washer Light) is using high power Surface mounted LED module with many chips (Bridgelux type), high brightness, low lumen decrease, ideal replacement product for metal halide lamp. 5mm high strengthen tempera glass.
II. Advantages
1. Good for getting heat out. For this type, it is using 30Watt. Which can replace 100 Watt Metal Halide lamp.
2. Light Distance: Maximum can reach 20-25Meters.
3. Light Body: The housing is die casting aluminum material, which is good for getting the heat out. Thus it can protect the life age of the light source. Good heat-sink assures the lamp can be used in high temperature environment.
4. View Angle: 120 degree
5. IP Degree: IP65
6. Application Areas: Ideal products for lighting Walls, Boards, Advertisement Boards, Gardens, Hotels, Rooms, Clubs etc.
III. Specification
Led parameter
Item No |
Min |
Typical |
Max |
Power |
- |
30 |
31 |
Rated curret |
- |
0.8A |
0.82A |
Rated voltage |
29v |
31.2v |
31.5v |
WW CCT |
2700K |
3200k |
3900k |
White CC |
4000k |
5500k |
6000k |
Cold white CCT |
6000k |
6500k |
7000k |
Working TEMP |
- |
85°C |
105°C |
LED chip QTY |
- |
30 |
1 |
LED IP grade |
60lm/w |
70lm/w |
80lm/w |
LED chipset |
Bridge Lux |
||
Lighting technical parameters
Input Voltage |
AC85V~265V |
|
Frequency Range |
50Hz~60Hz |
|
Total Harmonic Distortion |
≤ 9 % |
|
Power Factor |
>0.9 |
|
Power Efficiency |
>85 % |
|
Working Voltage |
32V |
|
Led Consumption |
20W |
|
System Consumption |
23W |
|
lamp’s Efficiency |
>91 % |
|
Lumen Brightness |
1700lm |
|
Junction Temperature |
≤80°C |
|
Working Temperature |
-40°C ~+55°C |
|
Storage Temperature |
-25°C ~ +65°C(25°Cbest) |
|
IP Grade |
IP65 |
|
Net weight |
2.56Kg |
|
Working Life-span |
50000H |
|
Power line |
0.75mm2 three-core cable |
|
Connect wire |
Brown |
L |
Blue |
N |
|
Yellow/Green |
GND |
|
The color of the lamp shell |
Black Silver-White are optional |
|
Certificate |
CE & RoHS |
|
Note: Different CCT LEDS has different optical properties. The deviation is less than 5%
IV. Use Instruction
1. Input Voltage: AC 85V~265V 50/60Hz.
2. Storage Temperature: -65°C~+50°C.Working Temperature:-30°C~+50°C,Best Working Temperature: -0°C~+30°C
3. Handle carefully since there are glass inside the box.
