Help CenterChina Wing Gate Turnstile With Best Price With dc Motor Access Control Stainless Steel Surface
Related Products
-
Full Height Turnstile Import Direct From China With Low Price With Access Control Card Reader Stainless Steel SurfaceUS$ 1.00 - 1.00MOQ: 1 Unit -
Cheap Automatic Full Height Turnstile From China Suppliers With Low Price Access Control Card Reader Stainless Steel SurfaceUS$ 1.00 - 1.00MOQ: 1 Unit
-
Cheap Tripod Turnstile With Low Price From China Suppliers With dc Brushless Motor Access Control Card Reader SystemUS$ 0.01 - 1MOQ: 1 Unit
-
Access Control Tripod Turnstile Import From China Suppliers With Low Price Brushless dc Motor Stainless Steel SurfaceUS$ 0.01 - 1MOQ: 10 Units
-
Electronic Tripod Turnstile Import Direct From China Suppliers With Low Price Access Control Brushless dc MotorUS$ 0.01 - 1MOQ: 3 Units

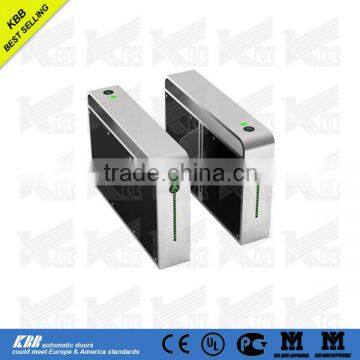

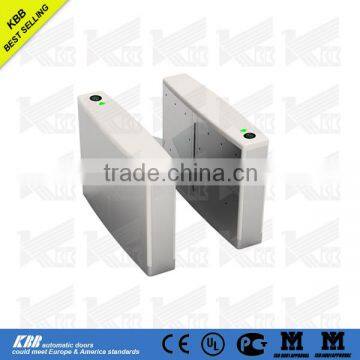

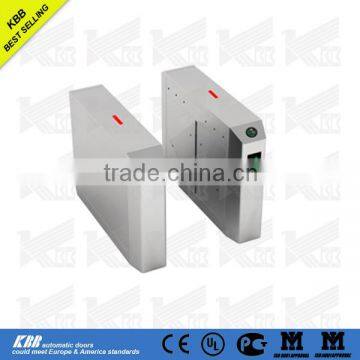

china wing gate turnstile with best price with dc motor access control stainless steel surface
* KBB Automatic Door Group is the largest automatic door manufacturer in China, even in Asia, also famous in the world .
* Our Doors had already sold to more than 70 countries in the world, the tallest building in South America called Titanium installed 4 units of our revovling door, others such as Hilton, Marriott, IKEA, the Shard are also our clients.
* Our after sale service team extend all over the world, the supports such as installation, maintenance, malfunction treating could be provided timely and perfectly .
KBB high efficiency security turnstiles is one of the best entrance control in the world, which could be equipped with almost any system of different buildings, such as access control, time and attendance, visitors, card transceivers, tickets and biometrics, as well as being able to handle CCTV and other additions.
Three Arm Turnstile
Three metal rotor arms manufactured from high grade stainless steel tube are arranged in a robust control pod to allow exceptionally high strength. Each control pod allows 120 degree rotation to ensure a single pedestrian passage.
The three arm turnstile is a tried and tested solution.
There are two types of design: tripod and stand. The tripod turnstile is compact and easy to install, requiring limited floor space.
The stand model has a longer passage, providing higher security and has increased interior space allowing the addition of more safety and control devices.
Each design allows for a controlled single person passage with high security and reliability.
Waterproof and dustproof, suitable for both indoor and outdoor use in all environments.
No. |
Parameter |
Data |
No. |
Parameter |
Data |
1 |
Power supply |
AC220V±10%,50HZ |
14 |
Working voltage |
DC24V |
2 |
Power |
Work status less than 50W /channel,standby status less than 20W /channel |
15 |
Motor |
DC Motor, DC24V |
3 |
Weight |
Single Mechanism: 40Kg. Double Mechanism: 50Kg. |
16 |
display mode |
High light LED |
4 |
Anti squeeze level |
Level 2 |
17 |
Traffic mode when power failure |
Free traffic |
5 |
Fire alarm signal |
Support |
18 |
Anti locked rotor function |
support |
6 |
The anti tail function |
Support |
19 |
Anti-strike function |
Support |
7 |
Normally open/close function |
Support |
20 |
Ambient temperature |
-5℃ - 60℃ |
8 |
Material of case |
Stainless Steel 304# ,1.5mm thickness |
21 |
Max. relative humidity |
≤95% |
9 |
Material of wing |
Acrylic /PMMA |
22 |
Mechanical noise |
lower |
10 |
Length of wing arm |
260mm |
23 |
Protection level |
Better than IP32 |
11 |
Passage width |
520-600mm |
24 |
Driving method |
DC12V pulsing signal,signal time more than 100MS, RS485 /RS232 communication signal . |
12 |
Traffic mode |
two way traffic / one way traffic |
25 |
Trouble free time |
More than 1,000,000 times . |
13 |
Traffic flow |
Normally close: 25 person/minute Normally open: 35 person/minute |
General Discription
1. Appearance and design . Specially designed according to operational environment and tailored to the building style .
2. Material . Stainless steel ,Glass , Acrylic ,Wood ,Stone ,Titanium alloy .
3.Assage width . 400mm ~ 3000mm .
4.Dimension . Designed according to specific project dimensions .
5. Surface finish . Hair brushed , Satin brushed , Polished , Electroplated coating , Watermarked .
6. Environment .
Suitable for environments, +80 degree~ -45 degree .
Humidity >95% .
Protection: IP11 ~ IP67 .
KBB Advantages
1. Advanced safety features . Equipped with more than 10 pairs of military specification infrared sensors, which accurately monitor safety and security functions, including anti- passback, tailgating, illegal access, anti squeeze and orientation identification.
2. Speed Technology. Adjustable Opening/closing time for swing gates and wing gates can be as low as 0.35s
3. Appearance. Class leading breakthrough on curved design appearance and surface treatment ahead of competitors .
4. Complete product line . Capable of manufacturing 6 lines of products, KBB is one of the top 3 manufacturers in this competitive field. Our products are fully compatible with all major worldwide projects and we offer a fast response be spoke service platform.
We KBB specialize in automatic door field for more than 20 years ,supplied automatic revolving door, sliding door , sliding door Operator, medical hermetic door, swing door with higher quality and competitive price.
Up to now, our doors had already got many certificates such as ISO 9001, ISO14001, CE, UL, TGA, GOST, UKAS etc.
20,000 units sliding doors and 2,000 units revolving doors could be provided every year for the airport, hotel, shopping mall, office building projects. The 4 tallest towers in the world including the Khalifa tower in Dubai, The Titanium in Santiago, The global Financial Center tower in Shanghai and The Shard in London installed our doors.
**
