HM brick masonry wallreinforcementmaterial
Product Features
HM carbon plate is made of carbon fibers. It can be used for concrete structures strengthening,
steel plate reinforcement.
1, Light weight,easy to operate and not require large-scale machinery equipments
2,The shape and weight of components are not changed after reinforcement
3,The reinforcement effect of 1layer carbon plate is equivalent to 4~8layers carbon cloth
4,The visual inspection is easy to carry out after construction
Typical Uses
HM carbon plate is suitable for
1,The remedy repair and strengthening of the plate and beam of concrete structures
2,The strengthening of openings around the wall and plate
3,The strengthening of beans of wooden buildings
4,The strengthening of bridge plate ,bridge pier and girder
5,The remedy repair and strengthening of tunnel and cable lines
Technical Parameters:
Property Index of Products |
Adhesive of Carbon Fiber Sheets(Grade A) |
Carbon Fiber Sheet(Grade A) |
Carbon Fiber Sheet(Grade B) |
Tensile Strength |
≥40MPa |
≥2400MPa |
≥2000MPa |
Elastic Modulus |
≥2500MPa |
≥1.6*105MPa |
≥1.4*105MPa |
Elongation Percentage |
≥1.5% |
≥1.7% |
≥1.5% |
Bending Strength |
≥50MPa |
/ |
/ |
Compressive Strength |
≥70MPa |
/ |
/ |
Pulling Bonding Strength along with Concrete |
≥2.5MPa |
≥2.5MPa |
≥2.5MPa |
Content of Non-volatile Matter and Solid |
≥99% |
/ |
/ |
Interlaminar Shear Strength |
/ |
≥50MPa |
≥40MPa |
Volume Content of Fiber |
/ |
≥65MPa |
≥55MPa |
HM-1.2T |
HM-1.4T |
|
Thickness(mm) |
1.2 |
1.4 |
Length(m) |
100 |
100 |
Width(mm) |
50/100 |
50/100 |
Weight(g/m) |
80 |
120 |
Density |
1.6 |
|
Directions for use
The surface of carbon fiber plate
Clean carbon plate with solvent → mix adhesive → coat adhesive on carbon plate and make it into circular arc shape → paste carbon plate on the concrete and press with a hard rubber roller → remove the excess adhesive → clean the surface of the carbon plate → conservation → surface costing if needed.
The surface of component
Adjust the bond strength of the contact surface of concrete→give remedy repair to concrete surface if needed→cost adhesive on the concrete surface→→paste carbon on the concrete and press with a hard rubber roller→remove the excess adhesive→clean the surface of the carbon plate→conservation→surface coating if needed
Points For Attention
The construction workers should take necessary productive measures (such as wearing masks, gloves, goggles, etc). Fire prevention and maintain good ventilation on scene
When the rolled products are united, the plate has the possibility of bounce, please give full attention
Carbon plate is conductive, be careful the electrical equipments around.
Transportation and Storage
The length of this products is 100m, the width is divided into 50mm,100,,. The thickness is divided into 1.2mm,1.4mm

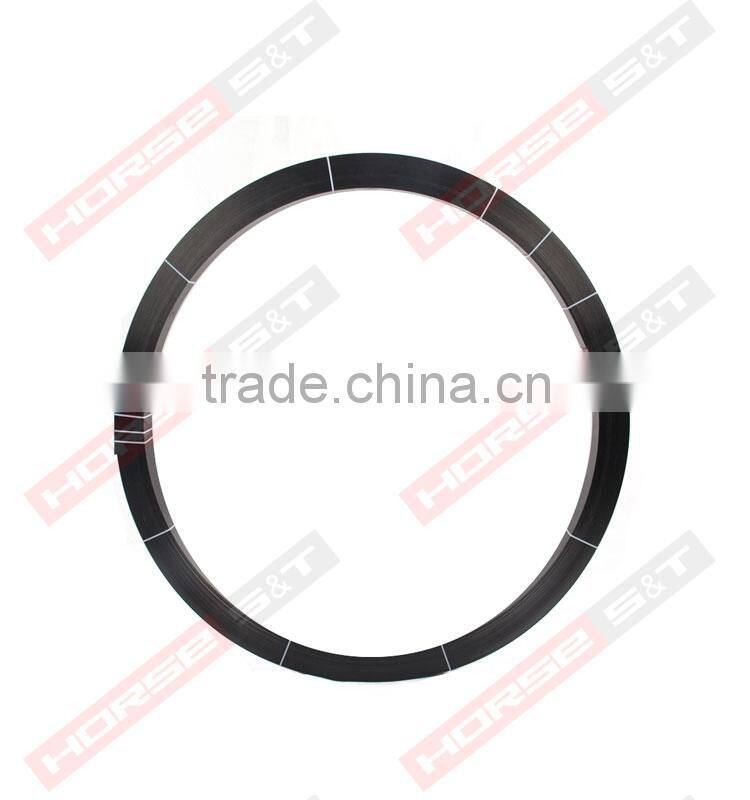

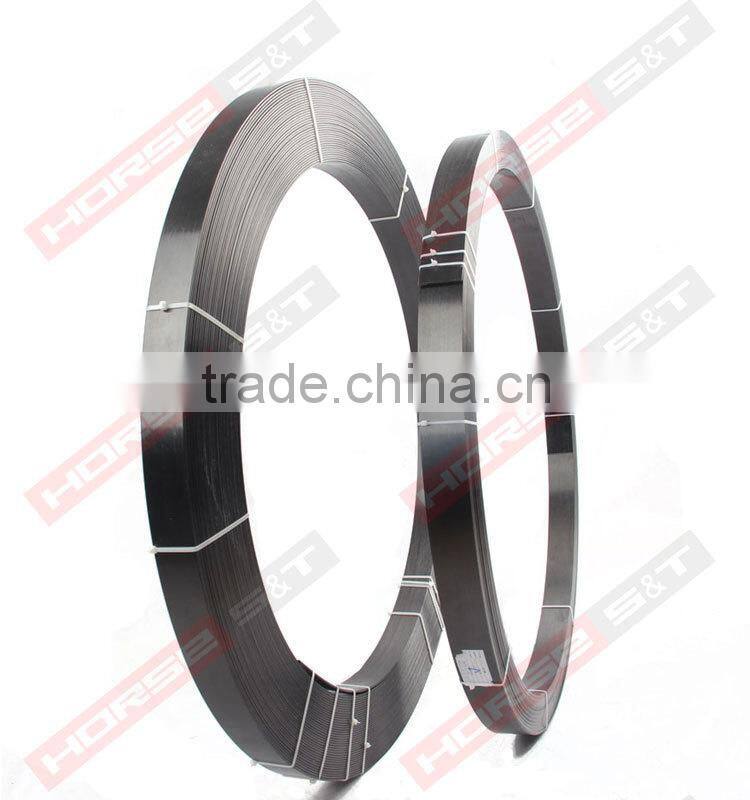

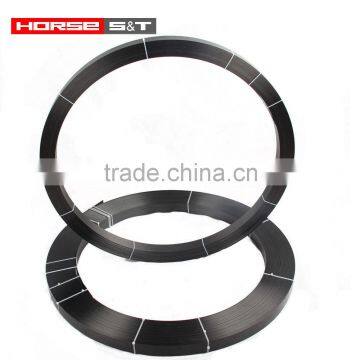

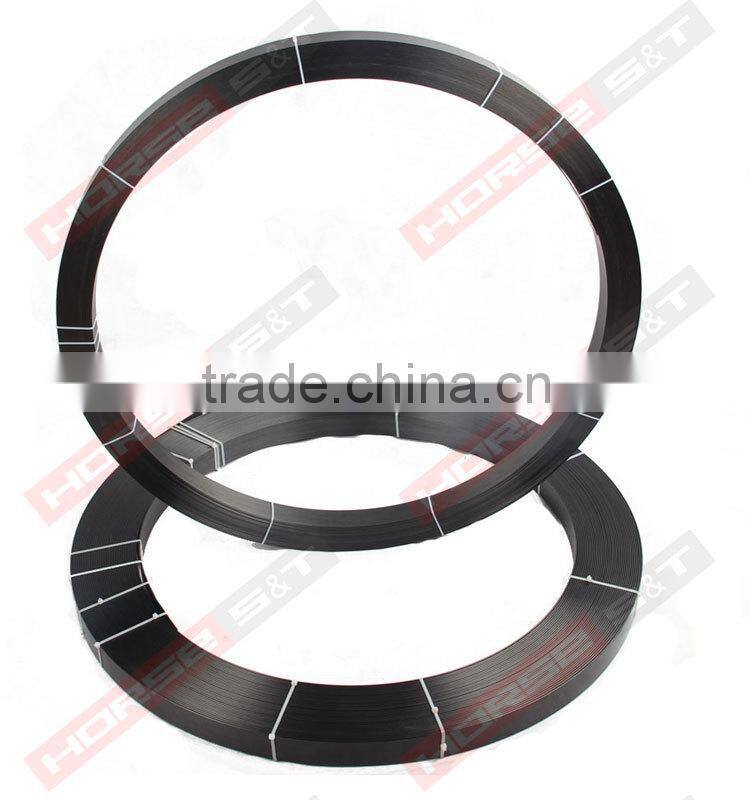

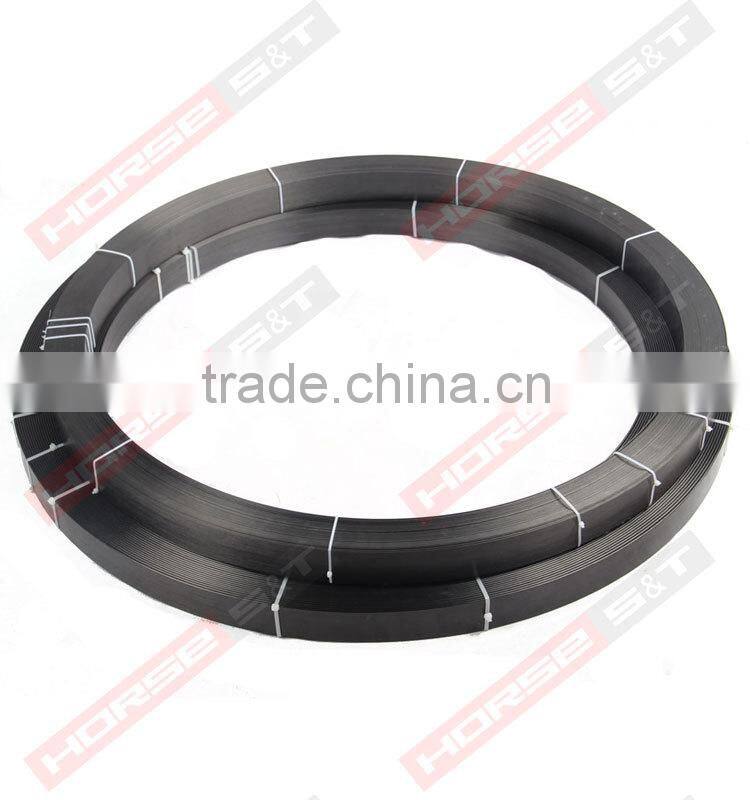

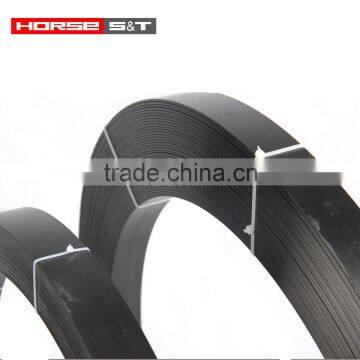

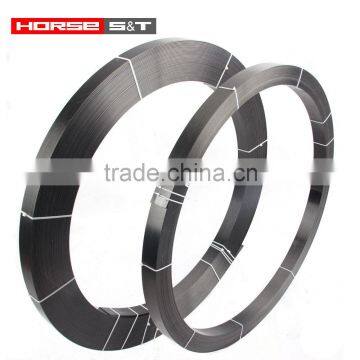

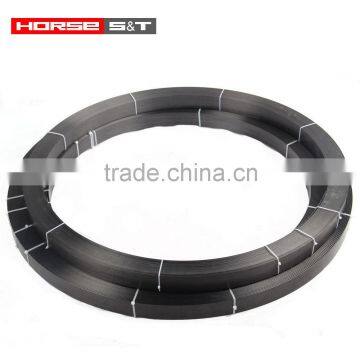

Roll into a ring and use a belt to bind.Other specifications can be customized
