HM Carbon Fiber Panel
In the reinforcement of beams and plates, the strength and the stiffness need both to be required. However, the pasting construction method of carbon fiber cloth needs many layers of paste, so engineering quantities and construction difficulties increase. Adopting the pasting construction method of carbon fiber plate can solve the problem. The pasting construction method of HORSE carbon fiber plate, is that the carbon fiber arranged in the same direction was infiltrated by resin, then hardened to form carbon fiber plate.
- Our pictures:

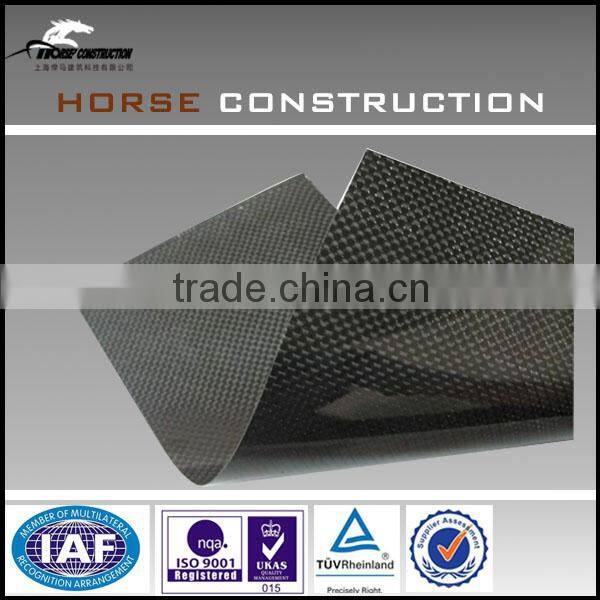

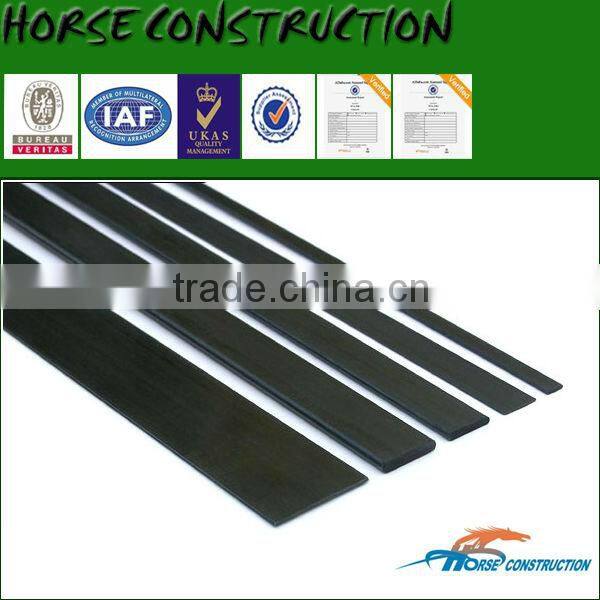

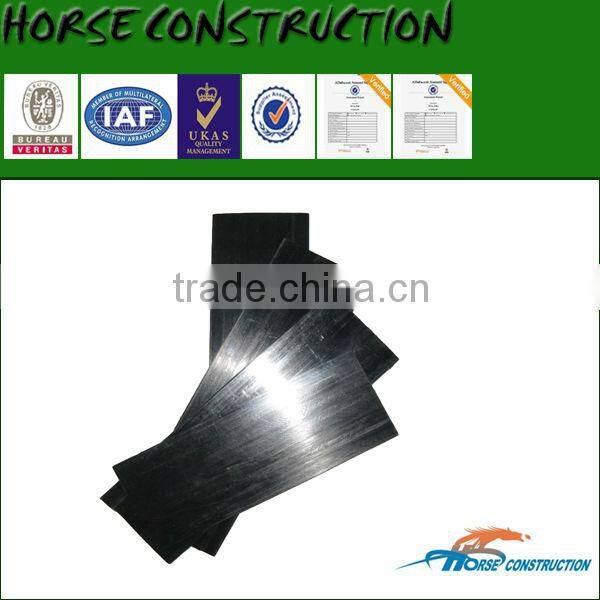

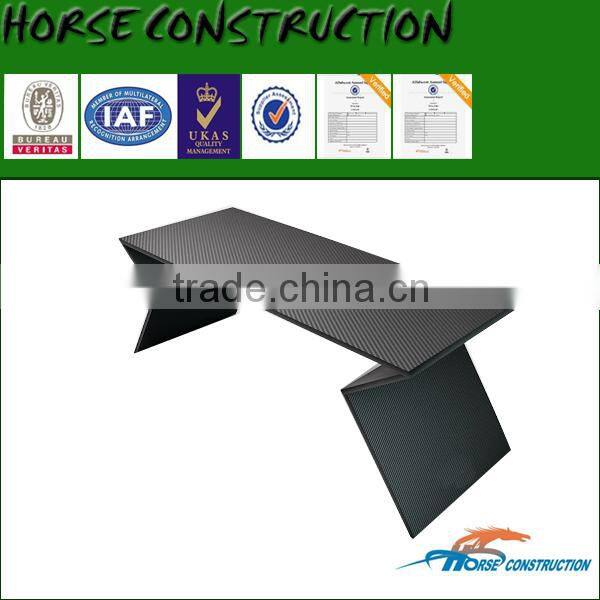

HM Carbon Fiber Panel
1. Pattern: Unidirectional, Plain or Twill
2.Size: 50*100mm, 100*100mm
3.Thickness: 1.2mm, 1.4mm, others
Property Index of Products |
Carbon Fiber Sheet (Grade Ι) |
Carbon Fiber Sheet (Grade ΙΙ) |
Tensile Strength |
≥2400Mpa |
≥2000Mpa |
Elastic Modulus |
≥160Gpa |
≥140Gpa |
Elongation Percentage |
≥1.7% |
≥1.5% |
Pulling Bonding Strength along with Concrete |
≥2.5Mpa |
≥2.5Mpa |
Interlaminar Sheer Strength |
≥50Mpa |
≥40Mpa |
Volume Content of Fiber |
≥65% |
≥55% |
|
HM-1.2T |
HM-1.4T |
Thickness (mm) |
1.2 |
1.4 |
Length (m) |
100 |
100 |
Width (mm) |
50,100 |
50,100 |
Density |
1.6 g/cm^3 |
|
Product Type: |
Carbon Fiber Fabric |
Supply Type: |
Make-to-Order |
Material: |
100% Carbon Fiber |
Style: |
Plain |
Feature: |
Abrasion-Resistant, Waterproof |
Weight: |
80gsm ,120gsm |
Thicknes: |
1.2mm,1.4mm |
Colour: |
Black |
Material: |
Carbon fiber ,epoxy resin |
|
|
Noted: Any Special requirements can be customized.
1. Excellent product characteristics:
Light weight, easy to use, easy to operate and not require large-scale machinery equipments
When pasting carbon fiber plate, gel adhesive does not flow, can reduce the conservation of the surrounding environment of operation
The shape and weight of components are not changed after reinforcement
The reinforcement effect of 1 layer of carbon fiber plate is equivalent to 4 to 8 layers of carbon fiber cloth, so that can make the operation become labor-saving
Because the strength and stiffness of carbon fiber plate are very high, need not carry out complete paste to structures, with the reduction of surface area to be processed, the generating dust and debris can be reduced consequently
When encounter the flat plate of the middle beam or wall, just to cut through the holes which can let carbon fiber plate pass, the reinforcement effect will be improved more
The visual inspection is easy to carry out after construction

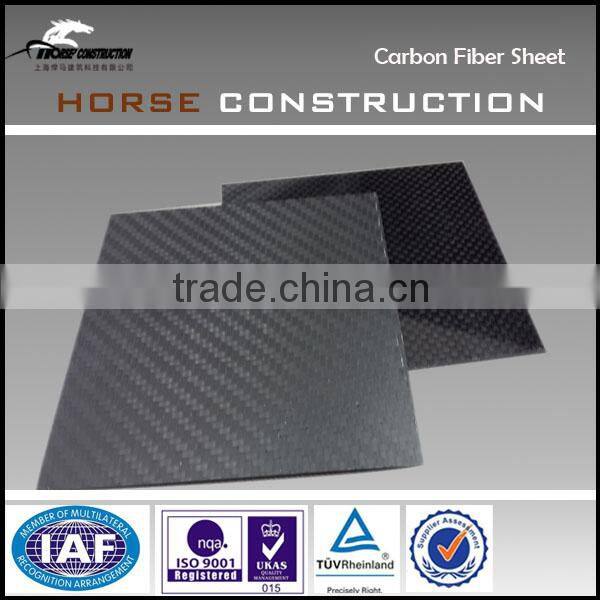

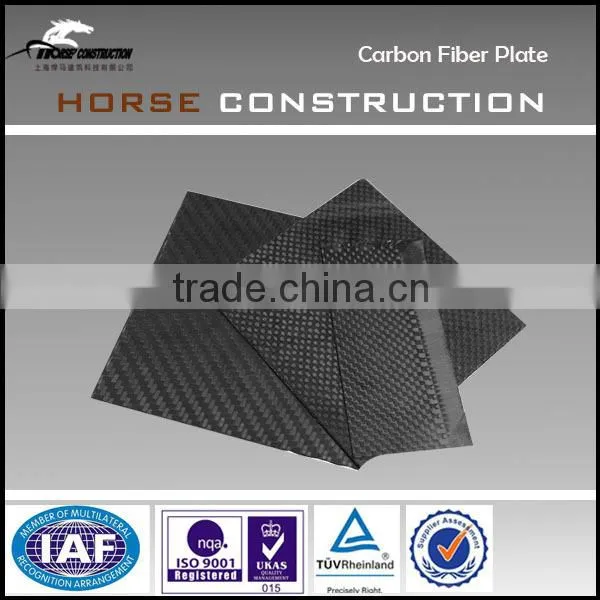

2. The Plain, Twill, Unidirection carbon fiber plate
Transportation and Storage:
1. Package: The length of this product is 100 m,the width is divided into 50 mm,100 mm,the thickness is divided into 1.2 mm,1.4 mm. Roll into a ring and use a belt to bind.Other specifications can be customized.
2. Shipping: By air, By sea, By train
When you use them you should mind that
1. Carbon fiber is conductive,be careful the electrical equipment around.
2. When the rolled products are untied,carbon plate has the possibility of bounce,please give full attention.
Shanghai Horse Construction & Technology Co., Ltd
The leading enterprise of reinforcement material industry, specializing in the research and development, production and sale of reinforcement materials. The company has passed ISO9001 international quality system certification, and the quality of products is underwritten by PICC property and casualty company. The new products and technology of reinforcement industry were continuously improved and developed by professional scholars from Tsinghua University, Tongji University, Fudan University and other domestic universities.
